REFRIGERATOR
MODEL: AXF498W
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXF498W and is the answer not in the manual?

Questions and answers

Related Manuals for Adexa AXF498W

Summary of Contents for Adexa AXF498W

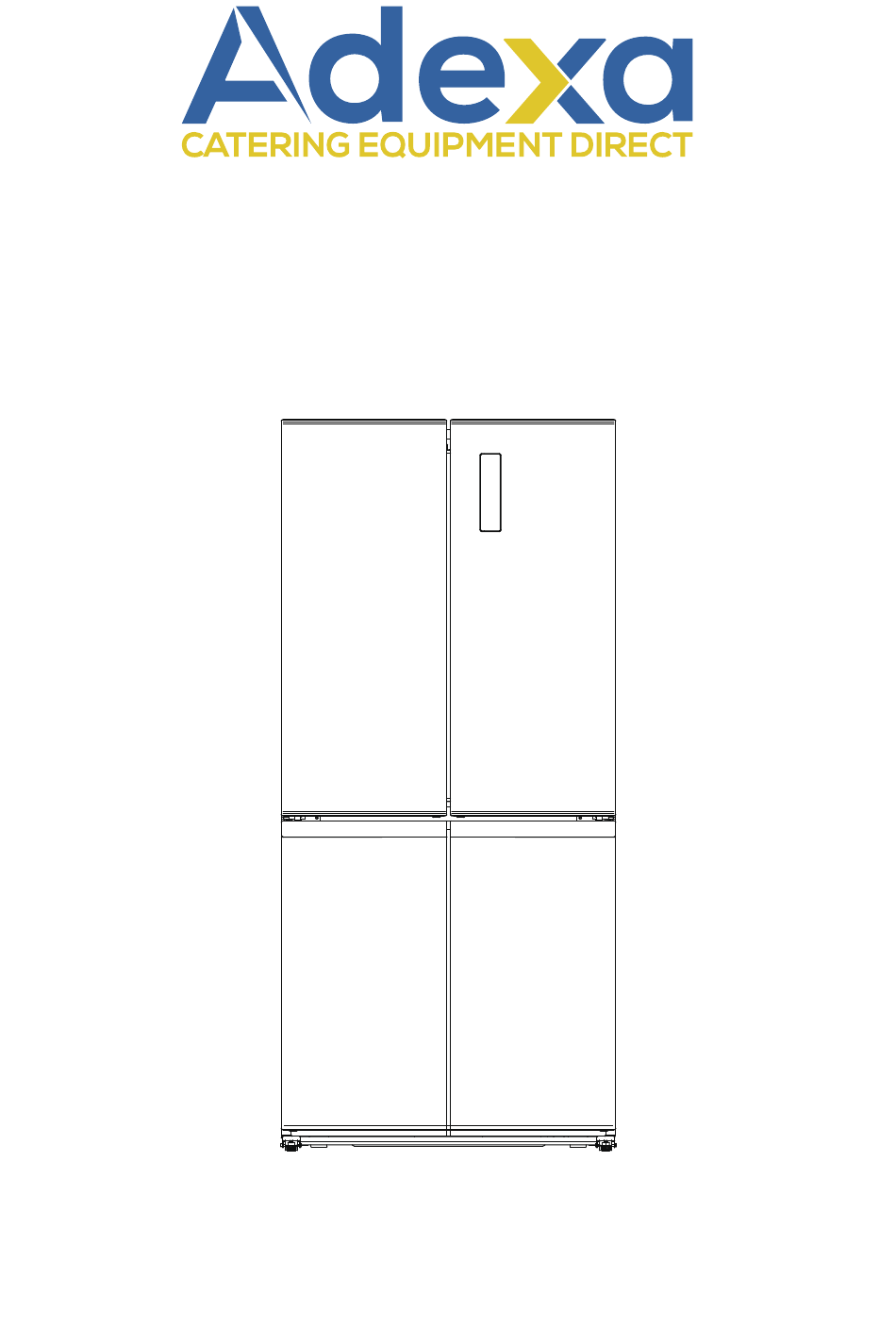

  • Page 1 REFRIGERATOR MODEL: AXF498W USER MANUAL...
  • Page 2 THIS PRODUCT IS FOR HOUSEHOLD USE ONLY! Please read these instructions carefully before the first use of this product and save this manual for your future reference. IMPORTANT SAFETY INSTRUCTIONS This warning is only for EUROPEAN market only: When using an electrical appliance, basic precautions should always be followed, including the following: 1.
  • Page 3 4. Insert the plug into a single grounded socket. 5. Never use the appliance in place where combustible and inflammable materials are kept. 6. For safety reason, be sure to repair or replace parts at an authorized service dealers. 7. The motor is permanently lubricated and will require no oil.
  • Page 4 13. When positioning the appliance, ensure that there is at least a 10cm clearance at the sides and a 10cm clearance at the back as this is the main outlet for heat. This will allow for adequate ventilation. 14. Do not place hot food or drink into the refrigerator before it cools down to room temperature.
  • Page 5 23. Keep the cord away from heated surfaces. 24. Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product. 25. Connect your refrigerator to an independent electrical socket and use a safe ground wire.
  • Page 6 32. It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged. 33. WARNING: Keep ventilation opening, in the appliance enclosure or in the built- in structure, clear of obstruction.
  • Page 7 - c a t e r i n g a n d s i m i l a r n o n - r e t a i l applications. 39. Regarding the information for replacing of the lamps of the appliance, thanks to refer to the below paragraph of the manual.

  • Page 8: Structure Illustration

    STRUCTURE ILLUSTRATION 1. LED light 7. Fruits and vegetables crisper 2. Middle rack 8 .Upper freezer salver 3. Glass shelves 9. Upper freezer drawer 4. Fridge door seal 10. Lower freezer drawer 5. Bottle rack 11. Adjustable bottom feet 6. Crisper cover -07-...

  • Page 9: Installation

    TRANSPORT AND HANDING When transportation, hold the base and lift the refrigerator carefully with an angle inferior at 45 degree. Never hold the door handle as support. Never place it upside down nor horizontally. Push refrigerator on its basis and place it thanks to its roller feet.
  • Page 10 ＝100 ＝100 1018 FIRST USE Before the use of the refrigerator, remove all the packages, including bottom cushion and foam pads and rubber belts in the refrigerator. Adjust the feet and clear the outside and inside of the refrigerator with warm cloth. Do not start the refrigerator immediately after vertical placement.

  • Page 11: Display Controls

    DISPLAY CONTROLS Use your appliance according to the following control regulations, your appliance has the corresponding functions and modes as the control panels showed in the pictures below. When the appliance is powered on for the first time, the backlight of the icons on display panel starts working.
  • Page 12 Controlling the temperature We recommend that when you start your refrigerator for the first time, the temperature for the refrigerator is set to 5°C and the freezer to - 18°C. If you want to change the temperature, follow the instructions below. Caution! When you set a temperature, you set an average temperature for the whole refrigerator cabinet.
  • Page 13 needed.And the control panel will display corresponding value according to the following sequence. 3. Mode choice Press “Mode” to set function mode as needed, a n d t h e c o n t r o l p a n e l w i l l d i s p l a y corresponding value according to the following sequence with light on.
  • Page 14 Super Freeze will quickly lower the temperature within the freezer so food will freeze vitamins and nutrients of fresh food and keep food fresh longer,the freezer temperature setting displays -25°C.Super freeze automatically switches off after 26 hours. When super freeze function is on you can switch off super freeze function by pressing “Temp”button and the freezer temperature setting will revert back to the previous setting.
  • Page 15 To save energy, please avoid keeping the door open for a long time when using the appliance. The door alarm can also be cleared by closing the door. COLDEST ZONE IN THE REFRIGERATOR This part is not dedicated to the product but for your reference only.
  • Page 16 Take these factors into consideration when setting the device. When the indicator shows « OK », this means that your thermostat is well adjusted and the internal temperature correct. If the indicator of temperature turns WHITE, this means that the temperature is too high; in this case, increase the refrigerator temperature control setting and wait for 12 hours before performing a new visual inspection of the indicator.

  • Page 17: Storage Of Food

    STORAGE OF FOOD You appliance has the accessories as the “Description of the appliance”showed in general, with this part instruction you can have the right way to storage your food. Fridge compartment The fridge compartment is mainly used to store foods that are preserved for a short time.

  • Page 18: Helpful Hints And Tips

    HELPFUL HINTS AND TIPS Helpful hints and tips We recommend that you follow the tips below to save energy.  Try to avoid keeping the door open for long periods in order to conserve energy.  Ensure the appliance is away from any sources of heat(Direct sunlight, electric oven or cooker etc) ...
  • Page 19  Cooked food, cold dishes, etc.: They should be covered and may be placed on any shelf.  Fruit and vegetables: They should be stored in the special drawer provided.  Butter and cheese: Should be wrapped in airtight foil or plastic film wrap. ...

  • Page 20: Cleaning And Care

    1. Remove all food 2. Remove the power plug from the mains socket. 3. Clean and dry the interior thoroughly. 4. Ensure that all the doors are wedged open slightly to allow air to circulate. CLEANING AND CARE For hygienic reasons the appliance (including exterior and interior accessories)should be cleaned regularly at least every two months.
  • Page 21 Interior cleaning You should clean the appliance interior regularly. It will be easier to clean when food stocks are low. Wipe the inside of the fridge freezer with a weak solution of bicarbonate of soda, and then rinse with warm water using a wrung-out sponge or cloth.

  • Page 22: Troubleshooting

    Replacing the LED light Warning: The LED light must not be replaced by the user! If the LED light is damaged, contact the customer helpline for assistance. To replace the LED light, the below steps can be followed: 1. Unplug your appliance. 2.
  • Page 23 Problem Possible cause & Solution It is normal that the freezer is not Appliance is operating during the automatic defrost not working cycle, or for a short time after the correctly appliance is switched on to protect the compressor. The interior may need to be cleaned. Odors from Some food, containers or wrapping appliance...
  • Page 24 Problem Possible cause & Solution  Large quantity of warm food has recently been stored within the appliance.  The temperature outside the The motor appliance is too high. runs continuously  Doors are kept open too long or too often.
  • Page 25 Problem Possible cause & Solution The LED light may be damaged. Refer to replace LED lights in cleaning and care chapter. The light is not The control system has disabled the working light due to the door being kept open too long, close and reopens the door to reactivate the light.
