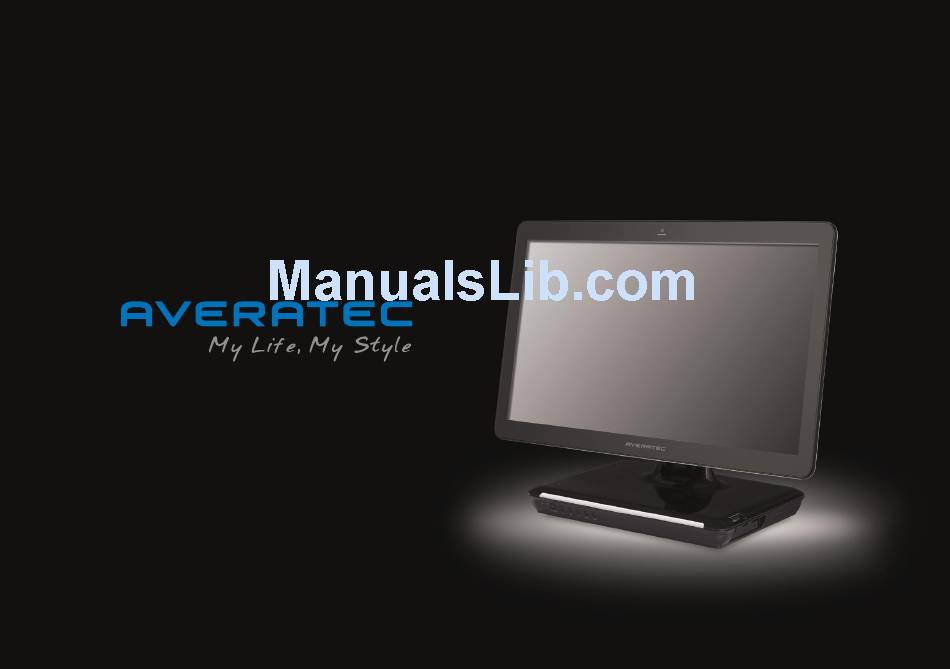

All-in-One PC User's Guide
Space Saving Contemporary Design

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D1133 and is the answer not in the manual?

Questions and answers

Related Manuals for AVERATEC D1133

Summary of Contents for AVERATEC D1133

  • Page 1 All-in-One PC User’s Guide Space Saving Contemporary Design...
  • Page 2 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Battery Notice

    CAUTION This appliance contains a laser system and is classified as a “CLASS 1 LASER PRODUCT.” To use this model properly, read the instruction manual carefully and keep this manual for your future reference. In case of any trouble with this model, please contact your nearest “AUTHORIZED service station.”...
  • Page 5 7. Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. 8. Always unplug the power cord before inserting any add-on card or module.
  • Page 6 11. Never pour any liquid into the opening that could damage the equipment or cause an electrical shock. 12. Do not leave the equipment in an unconditioned environment with a storage temperature of 60°C (140°F) or above, which may damage the equipment.

  • Page 7: Information About Energy Star

    - One way products achieve this is by reducing power consumption when not being used through the Microsoft Windows® Power Management feature. - The Power Management feature allows the computer to enter into a low-power or “sleep” mode after a period of user inactivity.
  • Page 8 - Both the computer and monitor can be woken from “sleep” mode through user interaction with any of the computer’s input devices (ex: mouse, keyboard, etc). - When configured with Wake On LAN (WOL) enabled, the computer can also be awoken by a network signal.

  • Page 9: Weee Statement

    WEEE Statement Before You Start viii...

  • Page 10: Before You Read

    The information in this user’s guide is subject to change without notice. TriGem Computer, Inc. shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material.

  • Page 11: Table Of Contents

    Table of Content Setting Up Windows Vista for the First Time Connecting to the Internet Regulations Information Optical Device Drive Notice Battery Notice The Keyboard Ethernet Notice The Mouse Power management status Macrovision Notice Safety Instructions Information about ENERGY STAR...
  • Page 12 Using the Optional VESA Mount Entering Setup System Setup Options Specifications and Descriptions Troubleshooting Recovering Your Original Software Getting Help Term & Definitions Before You Start...
  • Page 13 Chapter About your Computer Chapter 1 About your Computer...
  • Page 14 • A web cam for video chatting, recording and picture taking. • A full-size keyboard and mouse for ultimate comfort. Slim CD drive With a slim CD drive built-in, you can install all your CD or DVD based applications and also watch all your favorite DVD movies. Chapter 1...
  • Page 15 Designed for the Internet The Averatec All-in-One PC is designed for the Internet, so you can send emails or instant messages, talk to friends over VoIP or just surf the web with ease. Efficient computing The Averatec All-in-One PC is designed to support all your basic computing needs and then some. With this PC, you can enjoy the most popular tasks such as word processing, internet browsing and basic gaming.
  • Page 16 Integrated webcam TFT LCD HDD / CD drive LED Microphone Power LED Power button LCD brightness adjustment (increase / decrease) LCD ON / OFF Volume increase Audio mute Volume decrease Chapter 1 About your Computer...
  • Page 17 Integrated speakers Integrated speakers DC-IN connector Cooling vents RJ45 / LAN connector DVI - I connector e-SATA & USB connector USB connector Chapter 1 About your Computer...
  • Page 18 Left Right Card reader slot Microphone / Headphone jack USB connector Slim tray-loading CD drive (COMBO / SuperMulti DVD) CD/DVD eject button Chapter 1 About your Computer...
  • Page 19 Plug the power cord into the AC power receptacle on the back panel. Then plug the other end of the power cord into an appropriate grounded electrical outlet. Warning To avoid generating an electric shock. be sure to plug the cord into the system before plugging it into the wall socket.
  • Page 20 Chapter Setting Up Your Computer Chapter 2 Setting Up Your Computer...

  • Page 21: Plugging In Your Pc

    Connecting the USB devices If you have the USB devices, you can connect these to the USB connectors. To connect a USB device to the USB connector, plug the USB device cable connector into the USB connector of your system.
  • Page 22 If you are starting Windows Vista for the first time, you have to complete Windows Vista set up and registration. To set up your computer, follow the next steps: 1. Turn on your peripheral devices connected to your computer and press the power button on your system.
  • Page 23 4. Read the Microsoft license terms, check the I accept the license terms option, and click Next. 5. Type your user name and password, choose your user account picture, and then click Next. 6. Type your computer name, choose a computer background, and then click Next.
  • Page 24 7. You can select automatic updates for Windows to help keep your computer up-to- date. Click Use recommended settings. 8. Choose your time and date settings and click Next. 9. Click Start. Chapter 2 Setting Up Your Computer...
  • Page 25 10. Please wait during checking of your computer’s configuration. Please be prepared to wait as this process may take some time to complete. 11. Input the password if you set up the password during registration and press Enter. 12. Windows Vista desktop appears and Welcome Center automatically appears when the computer is started for the first time.
  • Page 26 Power button until the PC turns off. Then press the Power button again to boot back up. Case 3 Power saving mode. Saves your session and puts the computer in a lower-power state so that you can quickly resume working. Chapter 2 Setting Up Your Computer...

  • Page 27: Connecting To The Internet

    1. Press the power button and the Windows Vista start screen will appear. Connect a LAN cable to the LAN connector as shown in the figure below. 2. Configure the communication settings for the system based on your communication environment. When connecting to the Internet via an internet service provider, contact the service provider for more information on required communication settings.
  • Page 28 1. Right-click on the Wireless Network icon on the status bar, and then select Connect to a network. 2. If there is an AP-enabled environment, a list of available APs will appear. Click the item you want to connect to, and click Connect.
  • Page 29 3. A window will appear displaying Connecting to xxxxx (Where XXXXX is the name of your router/AP). If a Security key or password is set up, a window will appear where you can enter the security key or password. Enter the security key or password, and click Connect.
  • Page 30 5. Once connection is successfully established, the network icon on the status bar will change its shape. Chapter 2 Setting Up Your Computer 2-10...

  • Page 31: The Keyboard

    Chapter Using the Keyboard and Mouse Chapter 3 Using the Keyboardand Mouse...

  • Page 32: The Keyboard

    The Keyboard Along with the mouse, your keyboard is one of the main tools for interacting with your PC. The keyboard allows you to enter text into the PC, for example, in a letter, or email. Use keyboard shortcuts Keyboard shortcuts are a combination of key presses that perform common functions, for example, pressing the CTRL and C keys allows you to copy something, and CTRL and V allows you to paste it somewhere else.
  • Page 33 Changes the letter keys from lowercase to uppercase; changes back to lowercase when pressed again. The Caps Lock numeric/symbol keys on the top row of the keyboard and the symbol keys in the main part of the keyboard are not affected.
  • Page 34 Windows other application programs. The Caps Lock, Num Lock, and Scroll Lock keys work as toggles; press the key once to turn on a function and again to turn it off. When the function is enabled, the corresponding light in the upper right corner of the keyboard is on.

  • Page 35: The Mouse

    The Mouse The mouse is one of the main tools for working with your computer. It allows you to move the arrow around the screen. You can also use it to open programs and interact with menus and text. A normal mouse has three buttons : This is your man button.
  • Page 36 Chapter Using the Multimedia Features Chapter 4 Using the Multimedia Features...
  • Page 37 1. Press the Eject button of the CD/DVD drive. 2. Press the CD/DVD Drive. 3. Eject CD/DVD Press the Eject button of the CD/DVD drive on the left side of the Averatec All-in-One PC. You can then remove the CD/DVD. Chapter 4...
  • Page 38 If you can not eject a CD/DVD from the drive by pressing the eject button and choosing the Eject menu, insert the paper clip into the emergency eject hole as far as it will go then the tray will be slightly open. Pull out the tray and remove a CD/DVD from the tray.
  • Page 39 To use external speakers you should verify that the sound setting is adjusted correctly. To set the multi-channel speakers, follow these steps. Note Connecting the speakers will cause a window to appear confirming detection of the device. 1. Double click the Realtek HD Audio Manager icon.
  • Page 40 The Averatec All-In-One PC has built-in speakers on the base of the system.You can adjust the volume by clicking the volume adjustment buttons located on the front side of the PC and / or by using the volume control feature in Windows Vista.
  • Page 41 Your PC comes with a built-in internal microphone near the power button on the left of the computer. Use the built-in internal microphone to record sound for your webcam videos, and to use instant messenger or chat software to have video chats online.
  • Page 42 2. Click the Microphone tap. 3. Click the Microphone Boost. 4. After adjusting Microphone Boost, click the button. 5. Click the OK. Chapter 4 Using the Multimedia Features...
  • Page 43 1. Double click the CyberLink YouCam icon( ) on the desktop. 2. The CyberLink YouCam will be run and a yellow light on the webcam LED indicates your PC is ready to take photos. 3. Click the Snapshot button( ) on the CyberLink YouCam screen.
  • Page 44 To chat with video, both your system and the system of the person you want to chat with must have a web camera or a CCD camera installed. You also need to download and install a messenger program. The screen that you will see varies depending on the type of the messenger program you’re using.
  • Page 45 2. Right-click on your chat partner and then select Show your webcam, as illustrated below. 3. Now you’re ready to start chatting! Chapter 4 Using the Multimedia Features...
  • Page 46 Averatec's All-In-One PC accepts many types of multi-media cards into the multi-card reader slot on the right side of the PC. Memory card readers are a relatively new addition to personal computers and are a great alternative to floppy disks. Memory cards come in several different formats and are used in a variety of electronic devices including digital cameras, PDAs, mobile phones and more.
  • Page 47 Click the <Start> menu and select Computer. On the Computer screen, right-click on the Combo Socket icon and select Eject. This does not physically eject the media card. However, it does ensure all data is written to the media card prior to the physical removal of the card.
  • Page 48 An optional FM tuner is required to play FM radio stations in Windows Media Center. If your computer has no TV tuner, an optional analog or digital TV tuner is required to play and record TV in Windows Media Center.
  • Page 49 Chapter Adjusting the LCD Screen Chapter 5 Adjusting the LCD Screen...
  • Page 50 - Do not put your fingers or sharp objects directly on the surface and never spray cleaner directly onto the display. - Do not press on, or store any objects on the cover when it is closed. Doing so may cause the LCD to break.
  • Page 51 You can adjust the brightness by clicking the brightness control button on the front side of the PC. There are 5 levels of LCD brightness adjustment available. Each press of the brightness control button will cycle through each level. Brightness control button (toggle)

  • Page 52: Adjust Screen Resolution

    1. Click the Start button > Control Panel > Appeaarance and Personalization > Adjust screen resolution. 2. Change the Resolution. Chapter 5 Adjusting the LCD Screen...
  • Page 53 1. Click the Advanced Settings.. button. 2. Click the ATI Catalyst(TM) Control Center tab, click ATI Catalyst Control Center button. Chapter 5 Adjusting the LCD Screen...
  • Page 54 - Display Manager(Displays Properties) This feature allows you to connect external display devices. You to adjust the color quality, screen resolution, and refresh rate for your display. - Color - 3D This feature allows you to adjust the color rate of The appropriate 3D as pects are automatically your display.

  • Page 55: Using The Optional Vesa Mount

    Chapter Using the Optional VESA Mount Chapter 6 Using the Optional VESA Mount...

  • Page 56: Using The Optional Vesa Mount

    Note Please contact to Trigem USA for purchasing Hinge lock clip shown below. Your system has four VESA Mount holes on the bottom surface for using a VESA Mount (not included). To use it, follow the next steps: 1. Turn off your system and remove all cables.
  • Page 57 3. Fold the LCD panel. 4. Place down the LCD panel on a soft and flat surface to locate the mounting holes on the bottom of your system. (Be careful not to damage the LCD panel.) 5. To hold the the system module more firmly, insert a flat item (such as a book) between the LCD and system module.
  • Page 58 Note The mounting hole pattern of your system is 100 mm x 100 mm. To purchase a VESA Mount, please refer to this size. Hole Removing the hinge lock clip To remove the hinge lock clip, follow the next steps: Unfold the LCD panel.
  • Page 59 Chapter System SETUP(BIOS) Chapter 7 System SETUP(BIOS)

  • Page 60: Entering Setup

    For System Setup, setup only the items that you need. Note that incorrect settings of Setup items could result in system malfunction. Entering Setup After powering on the system, press <Del> to enter the System Setup screen. BIOS Action Keys...
  • Page 61 Chapter 7 System SETUP(BIOS)
  • Page 62 Chapter 7 System SETUP(BIOS)
  • Page 63 Supervisor Password Shows the setup status of the Supervisor Password: Installed, if a upervisor Password is set, or Not Installed. User Password Shows the setup status of the User Password: Installed, if a User Password is set, or Not Installed.
  • Page 64 The Supervisor Password is at a higher level than the User Password. Set up Supervisor Password 1. On the initial System Setup screen, Go to Change Supervisor Password, and then press Enter. 2. On the following screen, enter the password and then press Enter.
  • Page 65 Discard Changes and Exit Exit the utility without saving the changes you have made. Discard Changes Aban your changes and reload the previous configuration before running the utility. Load Optima Defaults Select this item to load the default settings for optimal system performance.
  • Page 66 Appendix Specifications Appendix A Specifications...

  • Page 67: Specifications And Descriptions

    Specifications and Descriptions The main board has a built-in (AMD RS780MN, SB700) chipset, and supports various functions such as an LGA 775 type processor, system memory, a controller and a 3D graphic function. Feature Specifications Processor AMD Athlon(tm) X2 Dual Core Processor Note The processor depends on the model of computer you purchased.
  • Page 68 Feature Specifications Display 18.4-inch (viewable) glossy widescreen TFT active-matrix LCD, 1680 by 945 pixels HD TV Card (Optional) ATSC/NTSC, Mini PCI Express Type Optical Drive S-Multi(Tray Type) Others - Built-in IR receiver - Built-in Web camera (1.3 mega pixels) - Multi-media card reader(4-in-1)
  • Page 69 Feature Specifications Power Supply - Integrated GFX model : 65W, 100~240V, 19V/3.42A or 20V/3.25A - Optional external graphic model : 90W, 100~240V, 19V/4.74A System Size and Weight - 447mm(W) X 369.5mm(H) X 214mm(D) - 4kg Environmental Requirement Temperature - Operation : +5...

  • Page 70: Troubleshooting

    Appendix Troubleshooting & Support Appendix B Troubleshooting & Support...
  • Page 71 This chapter instructs you how to deal with the problems you might experience when using your computer. The problem is listed first, followed by the solution. Read it before calling a technician if a problem occurs. Cause Solution The monitor doesn’t work The brightness and contrast controls aren’t set properly...
  • Page 72 Mute option check box is empty. Volume is turned down The volume level may be too low. Click on the Speaker icon located on the right of your Windows taskbar. When the volume control box appears, drag the volume bar upward.
  • Page 73 - Make sure that AP (Access Point) is on and you are within range of a wireless Internet AP. Wireless LAN doesn’t work - If AP is on and you are within range of an AP, connect your system to the network that you want to join for getting Internet access. For more information, refer to ‘Connect to the Internet’...
  • Page 74 Make sure the power cord is firmly plugged into the wall outlet and into the computer. Wall outlet is not working. To check to see whether the wall outlet works, plug other device (such as a lamp) into the wall outlet. If it is not working, use other wall outlet.
  • Page 75 The optical drive cannot CD/DVD is not properly seated in the optical drive. read CD Eject the CD/DVD, gently but firmly press down on the CD/DVD to seat it in the drive, then reload. Your optical drive is not recognized.
  • Page 76 Cause Solution Keyboard doesn’t work Check the keyboard is connect to the computer. Cause Solution Mouse doesn’t work Check the mouse is connect to the computer. Appendix B Troubleshooting & Support...
  • Page 77 - If you recover your hard disk, you will lose all the data and programs on your hard disk. After recovering, you must reinstall any software not originally installed from the factory. Be sure to backup your own data before running the recovery process.
  • Page 78 Windows Vista starts and the registration program runs. To set up and register with Microsoft for using your computer, follow the displayed messages. (For more information, refer to “Getting Started with Windows Vista.”) Note Do not delete the Recovery partition on the Computer Management window for recovery.
  • Page 79 Appendix Glossary Appendix C Glossary...
  • Page 80 The baud rate is the number of bits transmitted per second in serial communications. BIOS is a set of routines that affect how the system transfers data between system components, such as memory, disks, and display adapter. The BIOS instructions are built into the system’s read-only memory. BIOS parameters can be configure by the user through the BIOS Setup program.
  • Page 81 Represents the smallest unit of data used by the system. A bit can have one of two values: 0 or 1. Boot means to start the system operating system by loading it into system memory. When the manual instructs you ºº...
  • Page 82 A pre-set value used by a system until it is specifically changed by a user. A device is a piece of hardware attached to a system (usually a peripheral), for example a printer or mouse. A device driver is a special set of instructions that allows the system’s operating system to communicate with devices such as VGA, audio, Ethernet, printer, or LAN.
  • Page 83 A disk for storing information that is not removable from the system. They usually have large storage capacity and provide fast access to data. Hardware is a general term referring to the physical components of a system, including peripherals such as printers, and pointing devices.
  • Page 84 Using the characteristics, the material can be used to display information. A unit of storage in a system denoting 1024 Kbytes. It is usually denoted as 1 Mbytes or 1 MB. Memory is where the system stores data and programs.
  • Page 85 - When the LCD monitor is connected to a computer, using DDC(Display Data Channel) - a kind of communication medium, optimal screen status is configured. PCI bus is a specification that defines a 32-bit data bus interface. PCI is a standard widely used by expansion card manufactures.
  • Page 86 A system disk contains the core file of an operating system and is used to boot up the operating system. Read-Only Memory. This is a type of memory which you can only read or copy; you cannot alter it’s content. It is normally used to contain the systems diagnostic programs, and a very basic input / output system.
  • Page 87 LCD has lower power consumption, low voltage requirement, and is thin and light, so that it is suitable for high resolution full color pictures. However, its weak point is its narrow view angle. View angle means the angle from which the screen can be watched.
