JoLo Lensboard Mark III Mounting Instructions

For the kodak aero lens

Download this manual

Lensboard Mark III for the Kodak Aero Lens

Thank you for purchasing the JoLo lens board to create your very exclusive

Please read this carefully, before even thinking of starting right away!

On the lens board you'll find the Allen hex key taped on the back of

the lens board.

First of all tear off the tape and use the Allen key to turn the hex

screw on top of the JoLo lens board until it does no more extrude

inside the thread.

1) Cover the front and rear lens while working on the lens.

2) Remove or cover the ground glass of your camera to avoid breaking the glass.

Clean your Aero lens thread thoroughly with a brush and if necessary some

lighter gasoline. Make sure nothing of the liquid can enter the inner lens.

These objectives are more than 50 years old. Therefore, you may check the

thread carefully for imperfections. If you do find imperfections use a sharp knife

or even better a special file to repair the thread. (fig 2) Always use a magnifier!

Turn the fixing screw (fig 7) a bit anti clockwise so that it does not protrude on

the inner thread of the lens board. (fig 1)

Try the lens board if it runs easily on the lens thread (fig1)

If it does not, please turn it back again and try to find the cause of the problem.

Do not force the lens board by turning it too tight. The lens board might not

loosen again without seriously damaging the thread and thus making the lens

unusable.

The lens board should be positioned so that its rear edge just covers the lens

threads, without allowing any threads to protrude backwards. (Fig 8)

Now search for the right position so that the marking point of the diaphragm

points up and lies in a straight line with the fixing screw. Fig. 5

Mounting Instructions JoLo

Personal Speed Aero Combo.

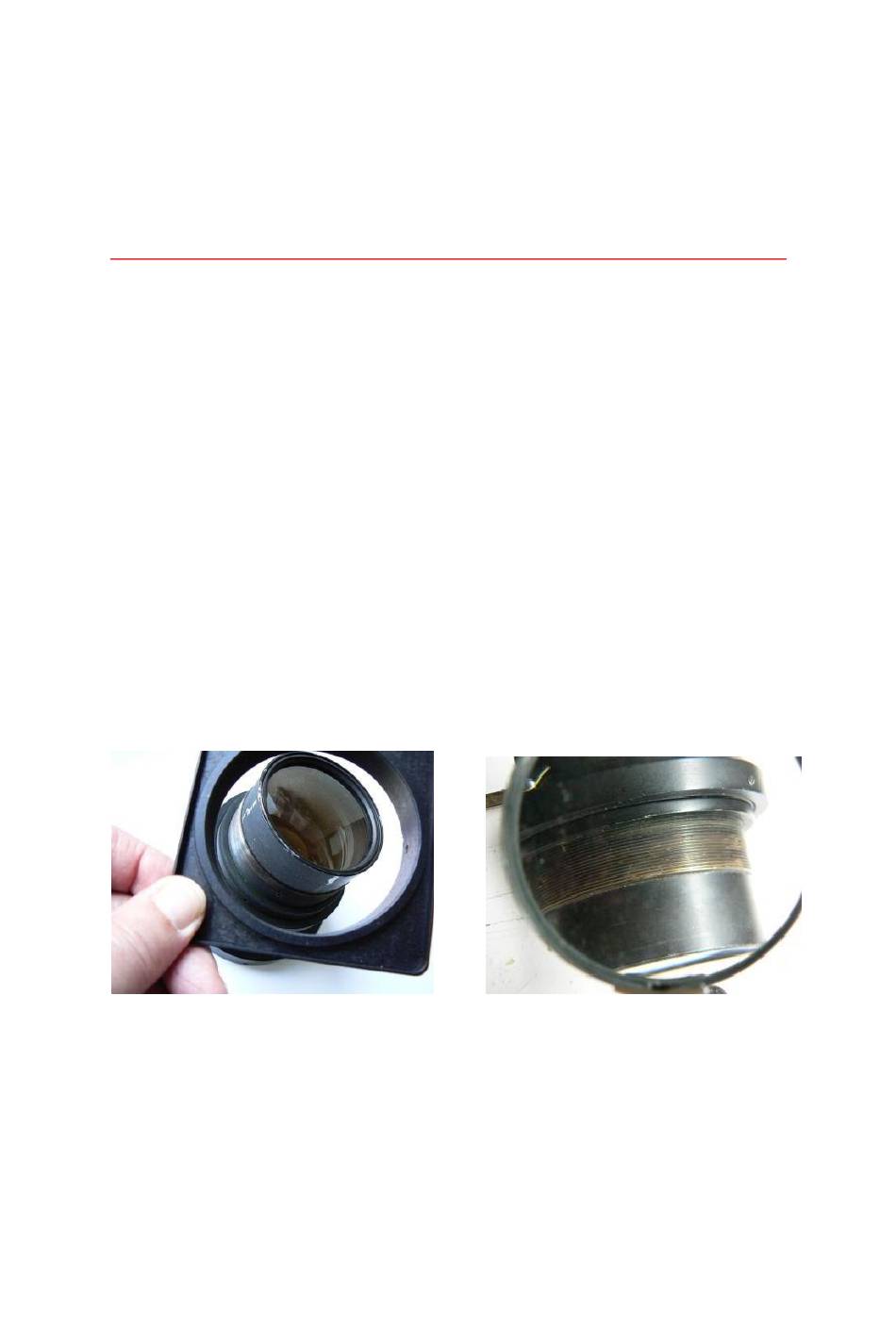

fig 1

fig 2

Need help?

Do you have a question about the Lensboard Mark III and is the answer not in the manual?

Page 1 First of all tear off the tape and use the Allen key to turn the hex screw on top of the JoLo lens board until it does no more extrude inside the thread. 1) Cover the front and rear lens while working on the lens.
Page 2 Attention! The board is not a full square, so you’ll have to make sure that the JoLo inscription is on top left of the camera standard (fig.4) Close the slide locks. If the slide locks do not slip over the lens board, you may loosen the two screws of the slide lock just one turn.
Page 3 Chain rivet extractor in action If you intend to focus exclusively on the ground glass, you may skip to 23) Loosen the four screws of the infinity stops and slide them a few inches forwards. Move the track all the way back into the camera body by turning the focusing knobs on front of the bed.
Page 4 Start the Kalart Rangefinder calibration procedure. Please be aware that the Rangefinder adjustment is limited. This limitation is about as close as 6 to 10 feet depending on your lens. The calibration instructions can be found on my web site Calibration 22) The camera cannot be closed with the Aero lens mounted.
Page 5 fig. 7 fig. 8 Good luck! Jo Lommen.
