JoLo Lens-board Mark III Mounting Instructions

For kodak aero lens

Lens-board Mark III for the Kodak Aero Lens

Thank you for purchasing the JoLo lens board to create your very exclusive

Please read this carefully, before even thinking of starting right away!

On the lens board you'll find the Allen hex key taped on the back of

the lens board.

First of all tear off the tape and use the Allen key to turn the hex

screw on top of the JoLo lens board until it does no more extrude

inside the thread.

1) Cover the front and rear lens while working on the lens.

2) Remove or cover the ground glass of your camera to avoid breaking the glass.

Clean your Aero lens thread thoroughly with a brush and if necessary some lighter gasoline.

Make sure nothing of the liquid can enter the inner lens.

These objectives are more than 50 years old. Therefore, you may check the thread carefully

for imperfections. If you do find imperfections use a sharp knife or even better a special file

to repair the thread. (fig 2) Always use a magnifier!

Turn the fixing screw (fig 7) a bit anti clockwise so that it does not protrude on the inner

thread of the lens board. (fig 1)

Try the lens board if it runs easily on the lens thread (fig1)

If it does not, please turn it back again and try to find the cause of the problem.

force the lens board by turning it too tight. The lens board might not loosen again without

seriously damaging the thread and thus making the lens unusable.

The lens board should be positioned so that its rear edge just covers the lens threads,

without allowing any threads to protrude backwards. (Fig 8)

Now search for the right position so that the marking point of the diaphragm points up and

lies in a straight line with the fixing screw. Fig. 5

10)

Fix this position by turning the hex screw tight with a hex wrench. Fig.6

Mounting Instructions JoLo

Personal Speed Aero Combo.

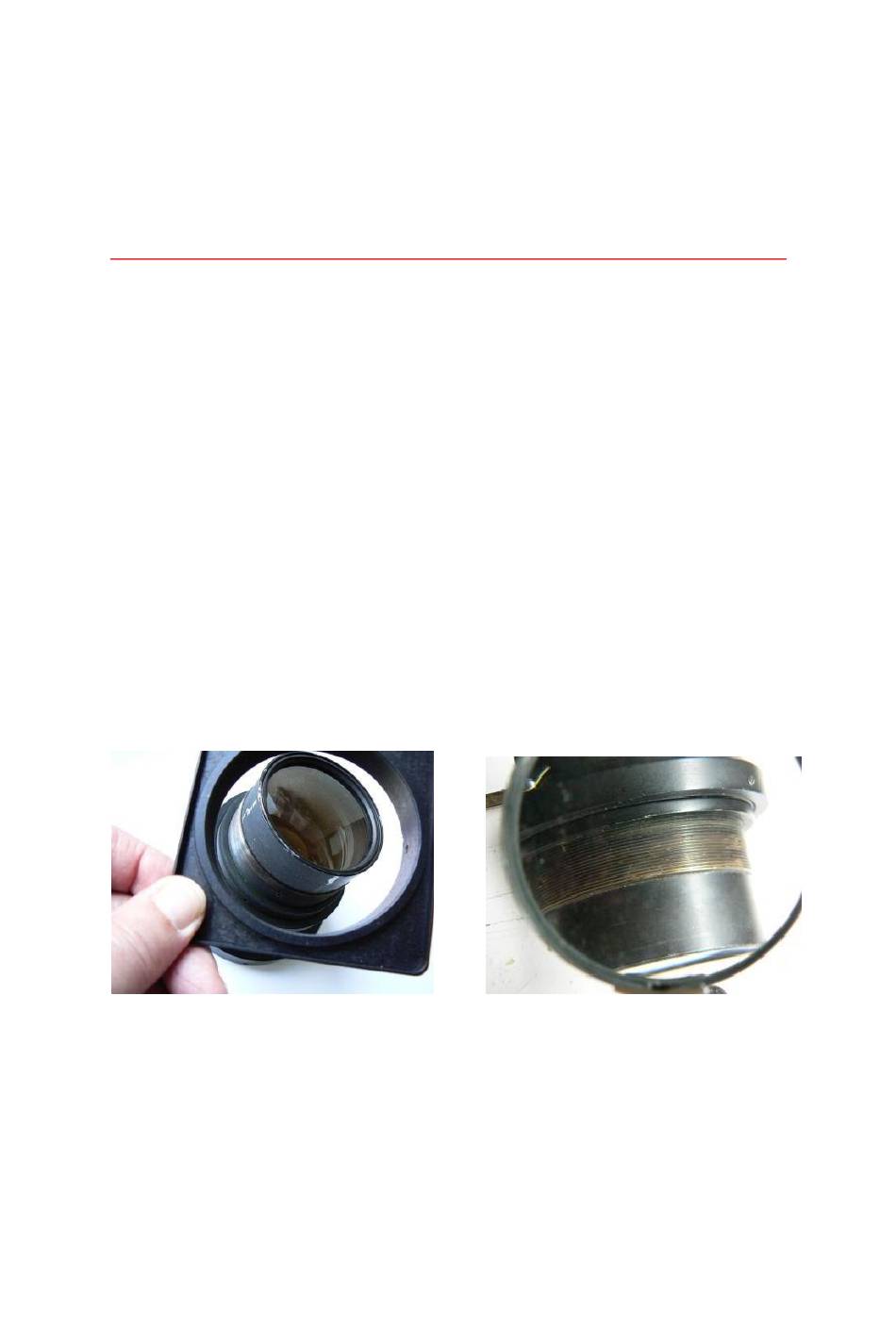

fig 1

fig 2

Do not

Table of Contents

Need help?

Do you have a question about the Lens-board Mark III and is the answer not in the manual?

Page 1 First of all tear off the tape and use the Allen key to turn the hex screw on top of the JoLo lens board until it does no more extrude inside the thread. 1) Cover the front and rear lens while working on the lens.
Page 2 Attention! The board is not a full square, so you’ll have to make sure that the JoLo inscription is on top left of the camera standard (fig.4) Close the slide locks. 13)You may find out that the 7 inch Aero lens does not fit into the black square light-trap of the front standard.
Page 3 Loosen the four screws of the infinity stops and slide them a few inches forwards. Move the track all the way back into the camera body by turning the focusing knobs on front of the bed. The distance scale should be positioned on infinity. Lock this position by turning the track lock on the right side of the bed near the focusing knob.
Page 4 standard by sliding the standard with the lens along the track while watching the ground glass for a sharp image on a subject a mile away. Having found that location, turn the lock to the right to secure the front standard firmly. Now slide the infinity stops back directly against the standard in the new found position for the 7-inch lens.
