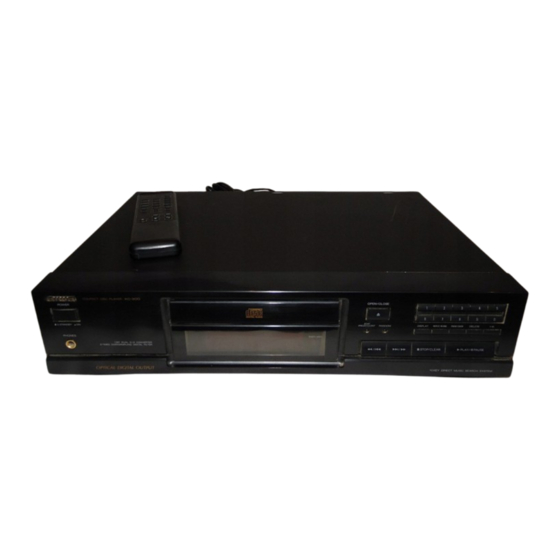

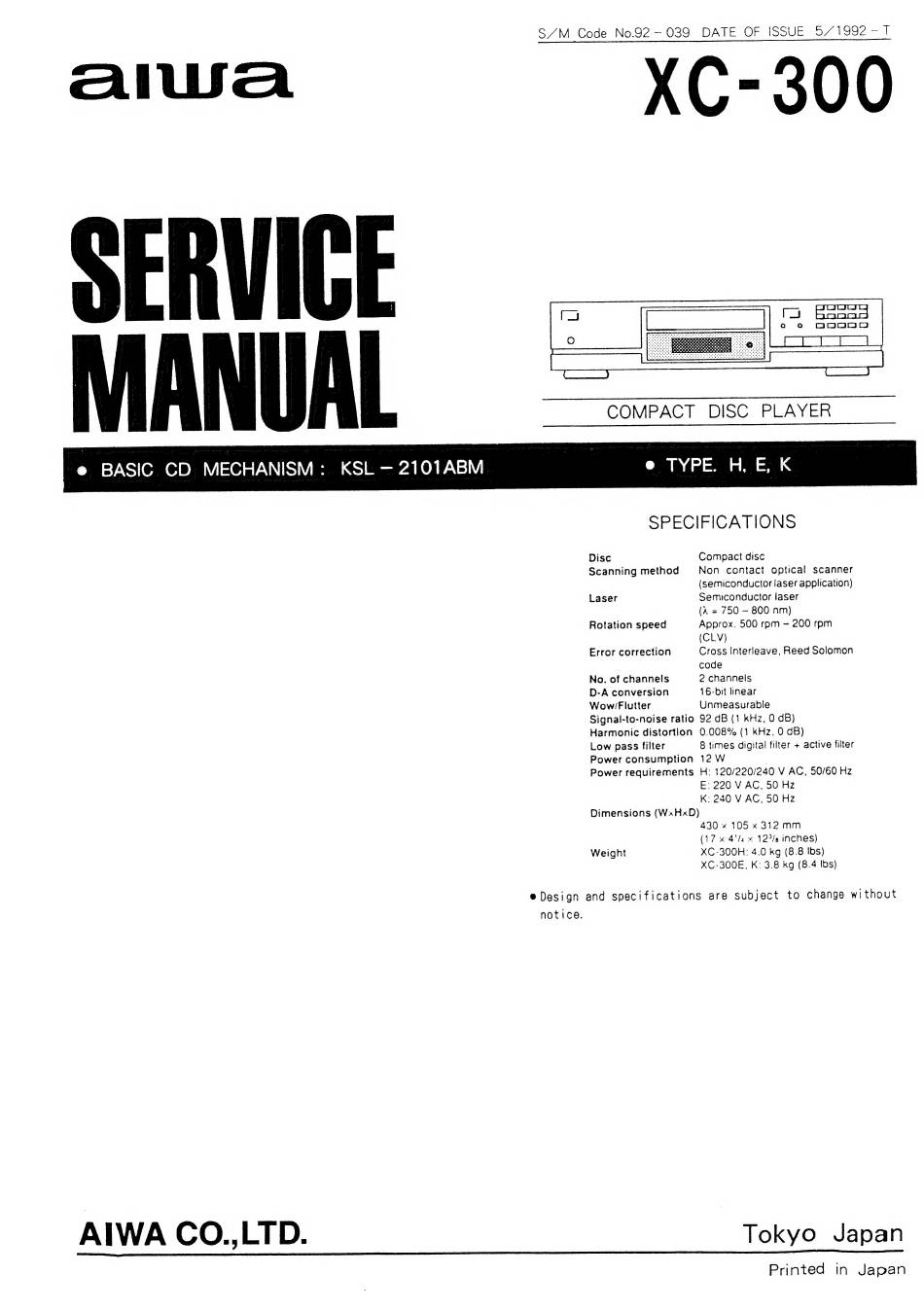

Aiwa XC-300 Service Manual

XC-300
aia
e BASIC CD MECHANISM: KSL—2101ABM TYPE. HE KK
SPECIFICATIONS
Disc Compact disc
Scanning method Non contact optical scanner
(Semiconductor laser application)
Laser Semiconductor laser
(A = 750 — 800 nm)
Rotation speed Approx. 500 rpm — 200 rpm
(CLV)
Error correction Cross Interleave, Reed Solomon
code
No. of channels 2 channels
D-A conversion 16-bit linear
Wow/Flutter Unmeasurable
Signal-to-noise ratio 92 dB (1 kHz, 0 dB)
Harmonic distortion 0.008% (1 kHz, 0 dB)
Low pass filter 8 times digital filter + active filter
Power consumption 12 W .
Power requirements H: 120/220/240 V AC, 50/60 Hz
E: 220 V AC, 50 Hz
K: 240 V AC, 50 Hz
Dimensions (WxHxD)
430 x 105 x 312 mm
(17 x 4'/s x 127°/3 inches)
Weight XC-300H: 4.0 kg (8.8 Ibs)
XC-300E, K: 3.8 kg (8.4 Ibs)
Printed in Japan
