Please read these instructions completely before beginning installation

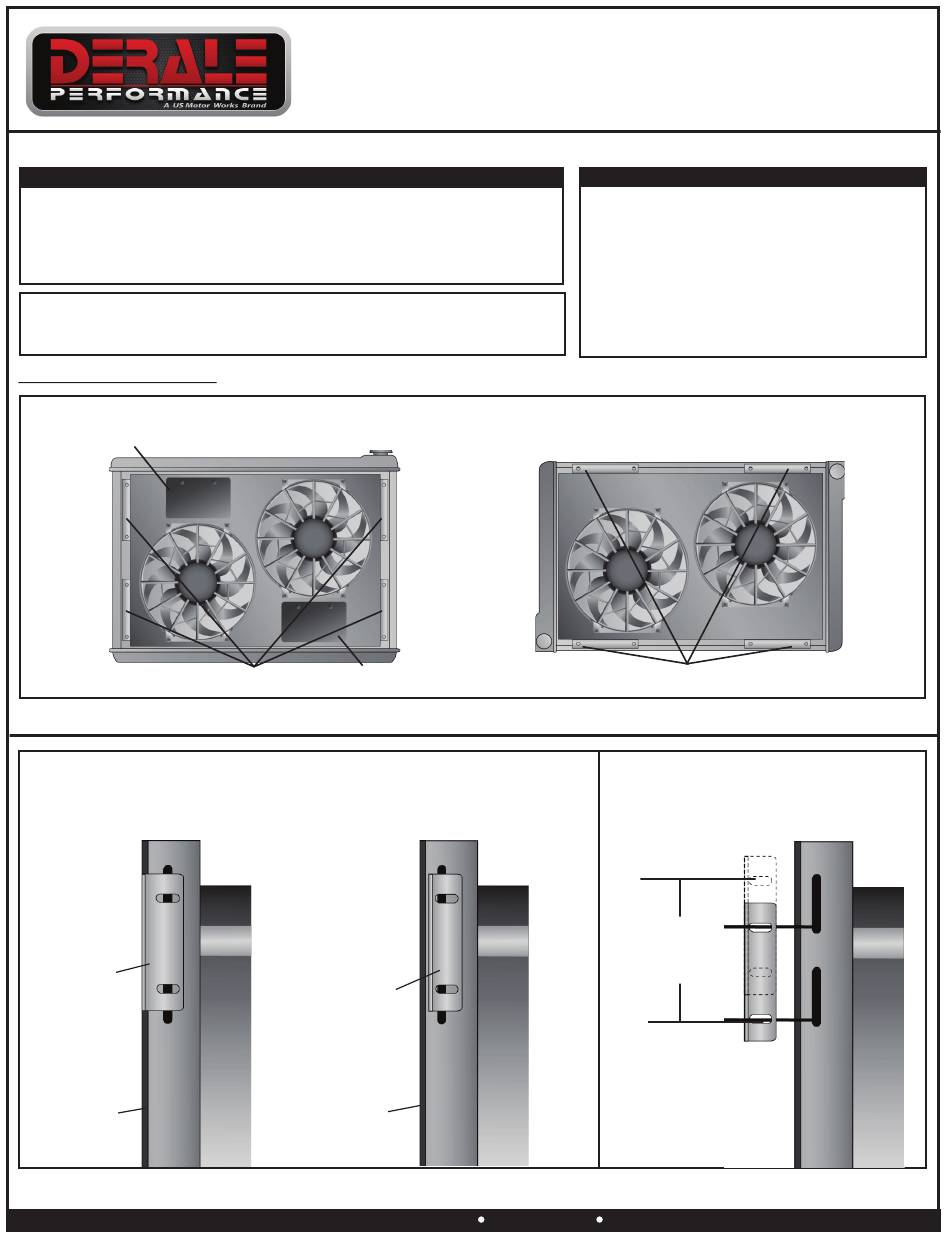

FAN SHROUD ASSEMBLY KIT CONTENTS
QTY. DESCRIPTION
1
Dual Fan Shroud Assembly
1
PWM Fan Controller Kit
4
Angle Brackets
This fan assembly is designed for PULLER APPLICATIONS ONLY Engine
side of radiator. (See Diagram #1)
MOUNTING OPTIONS
Diagram #1
Flap
Down Flow Radiator
Brackets Provided
Shroud should be mounted tight against radiator to minimize air leaks that would reduce efficiency.
Diagram #2
Option 1
Flush Mount
Angle
Bracket
Rubber Seal
Derale Performance, Los Angeles, CA
INSTALLATION INSTRUCTIONS
PWM POWERPACK FAN ASSEMBLY
PART # 66825, 66826, 66830, 66831, 66833, 66835,
66836, 66837, 66838, 66842 & 66927
QTY. DESCRIPTION
1
Rubber Fan Shroud Seal
16
1/4-20 x 3/4" Hex Bolts
16
1/4-20 Lock Nuts
40
1/4" Flat Washers
IMPORTANT
MOUNTING OPTIONS
Note: Shrouds with vents must
open at bottom
Recessed Mount
Angle
Bracket
Rubber Seal
Drill
5/32" Drill Bit
Multimeter / Test Light
5/16" Nut Driver
7/16" Open End Wrench
7/16" Socket & Ratchet
Option 2
800.421.6288
RevC-3-29-2022
TOOLS NEEDED
Standard Screw Driver
(1/8" wide blade)
Wire Stripper
Wire Crimping Tool
Cross Flow Radiator
Brackets Provided
Adjustment Range
3 1/8"
Bracket
Adjustment
Range
www.derale.com
66825-66826-66830-66831-66833-66835-66836-66837-66838-66842-66927-InstructionSheet
(Page 1)
