Derale Performance 16016 Installation Instructions Manual

Please read these instructions completely before beginning installation

PARTS LIST

QTY. DESCRIPTION
1 Electric Fan
6 Mounting Rods
6 Mounting Clips
2 Mounting Feet
7 1x1 Foam Pads
1 Thermostat Switch
1 Relay Wire Harness
1 7 Ft. 14 Ga. Wire
1 3/8" NPT Thread-in Probe
PRE INSTALLATION
PULLER APPLICATION
1. Electric Fan is setup from the factory for Puller applications and requires no
modification.
2. Check product label on Electric Fan shroud. The arrow on the label shows
airflow direction through the fan.
PUSHER APPLICATION
1. Remove the nut/clip that holds fan blade to motor shaft.
2. Remove fan blade from motor shaft.
requires some effort. Be careful not to damage fan blade.
3. Flip blade over and align groove in fan blade with roll pin on motor shaft.
4. Reinstall nut/clip on motor shaft.

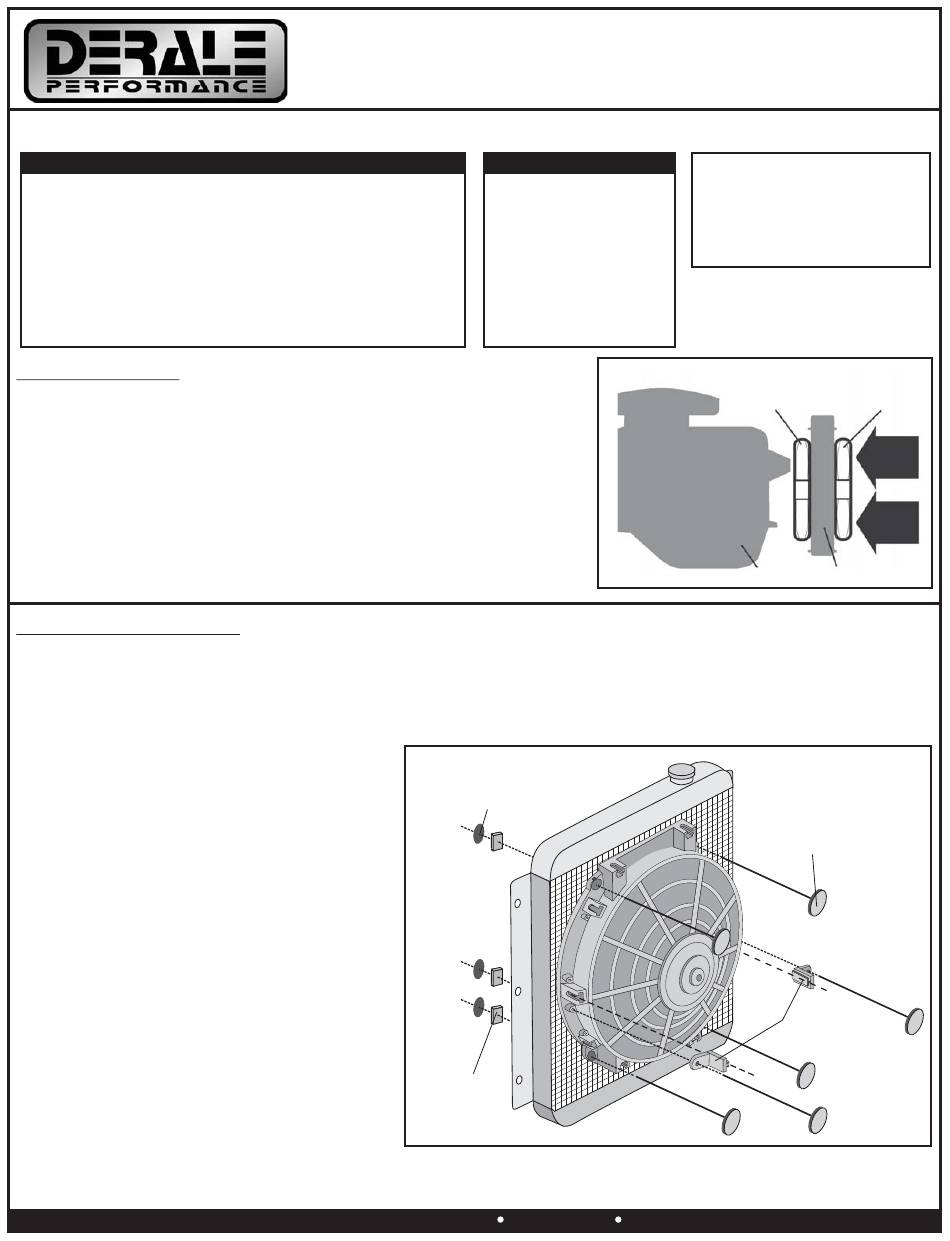

ELECTRIC FAN MOUNTING

Note: This Electric Fan Assembly requires 6 mounting positions. Four Mounting Rods will be installed in the locations molded in
the shroud, the additional two Mounting Rods will be used with the 2 supplied Mounting Feet. (See Diagram #2)
1. Identify the 2 Mounting Feet supplied and install onto the Electric Fan Assembly by sliding them into the slots on the Electric
Fan Assembly. See Diagram #2 for recommended locations.
2. Position the electric fan against the radiator in the desired location.
3. Take the Plastic Rods provided and install
through the mounting holes on the shroud
pushing them slowly into and through the
radiator core.
Caution: Do not use excessive force when
pushing Plastic Rods through radiator core.
Excessive force could cause damage to the
radiator fins and/or core. Plastic Rods should
not be inserted thru both the radiator and the
condenser cores.
4. Take the 1 x 1 Foam pads provided and install
them onto the Plastic Rods now protruding
through the radiator core.
5. Take the Plastic Clips provided, making sure
they are in the correct direction (Derale writing
out) install onto the Plastic Rods and cinch them
until the 1 x 1 Foam Pads are compressed.
6. Cut off the excess Plastic Rod.
(Continues on Page 2)
Dyno-Cool by Derale, Los Angeles, CA
INSTALLATION INSTRUCTIONS
QTY. DESCRIPTION
1 Push-in Probe
1 Retaining Probe Clip
1 Blue 5/16" Ring Terminal
2 Blue #10 Ring Terminal
1 Blue Butt Connectors
2 Blue Female Connectors
2 Blue Wire Tap Connectors
4 4" Wire Ties
2 #10 Sheet Metal Screw
Note: This is an interference fit and
Diagram #2
ELECTRIC FAN
PART # 16016

TOOLS NEEDED

12V Test Light
Wire Stripper
Crimping Tool
3/4" Wrench
Teflon Tape
Standard Screw Driver or
a 5/16" Nut Driver
Drill
5/32" Drill Bit
Dyke Pliers
Diagram #1
Mounting Clips
1 x 1
Foam
Pads
323.266.3850
IMPORTANT
This fan assembly is designed
for both PULLER and
PUSHER APPLICATIONS.
(See Diagram #1)
Puller Fan
Engine Radiator
Mounting
Rods
Mounting
Feet
www.derale.com
16016-InstructionSheet
Pusher Fan
Air Flow
Rev.04202018
