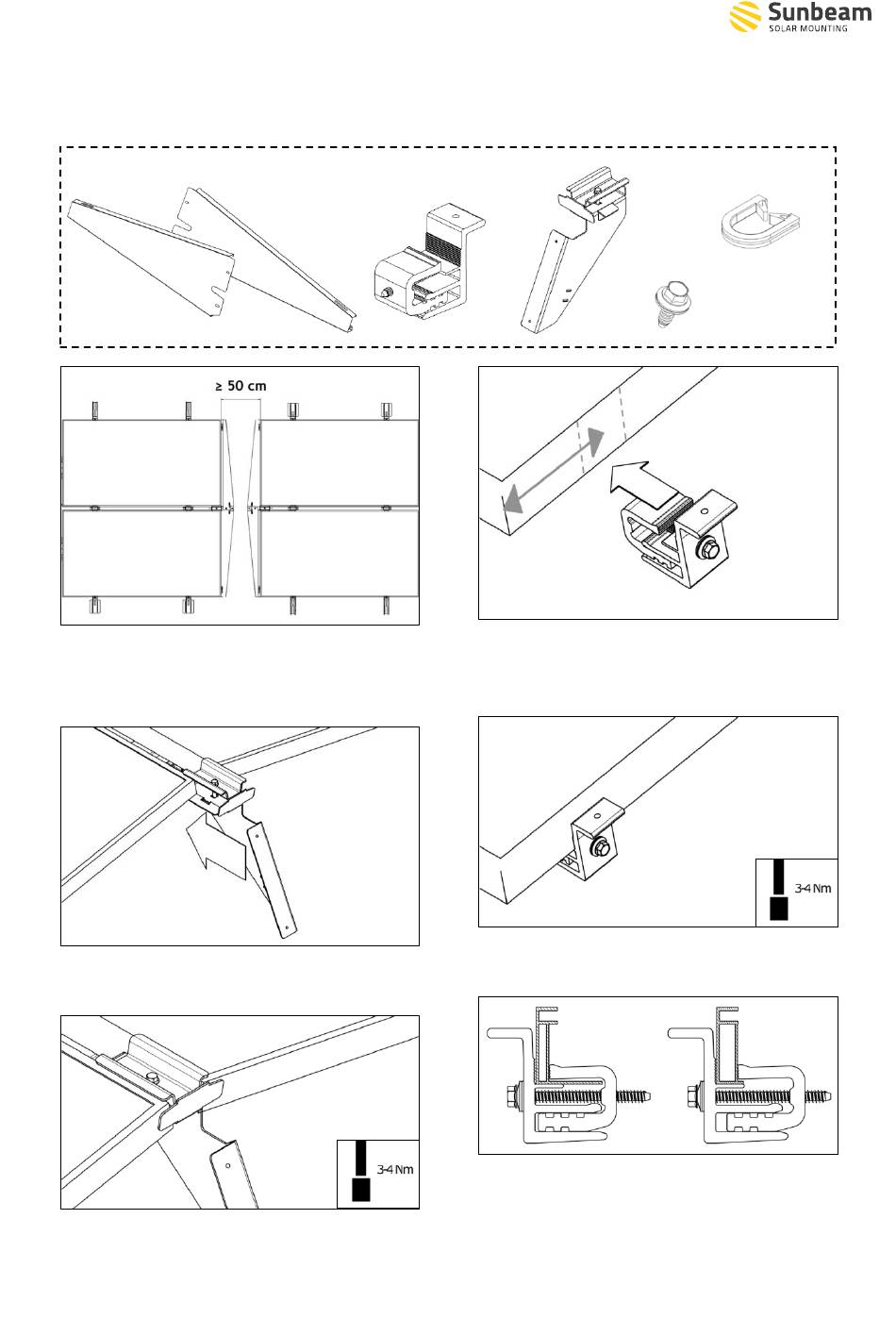

Sunbeam Supra
Mounting instructions side deflectors
R+L
IMPORTANT! Make sure there is enough space
planned in between the arrays. This space is
required to mount the side deflectors.
1. Slide the bracket with the clamp in between
the modules at the top.
2. Tighten the bolt on top.
2x
3. Hook the clamp on the module frame on the
low side. Place the clamp roughly 5 cm from the
corner of the module.
4. Tighten the pre-assembled screw in the
clamp.
Note: The clamp can be used for multiple types
of module frames as shown below.
5. Repeat step 3 and 4 for the other module.
2x
4x
july 2024 | version 1.0 | English
