Ranch Hand HRLNL100 Installation Manual

INSTALLATION MANUAL
This is the second of two manuals
required to complete this installation.
The first manual is included with
your mounting brackets.
Level of Difficulty
Easy
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Parts List
Item Qty Description
1 1 Headache rack
2 1 Removable center rack
3 4 Button head bolt,
1/2" - 13 x 1.25", grade 5
4 8 Flat washer, 1/2"
5 4 Lock washer, 1/2"
6 4 Cap nut, 1/2" - 13
Tools Required
Ratchet Socket set
Allen wrench, 5/16" Torque wrench
Torque Specifications
1/2" bolt 37 ft-lbs.
Use above torque setting unless otherwise noted
Product Registration and Warranty
Ranch Hand stands behind our products
with industry-leading warranties. To get
copies of the product warranties, register
your purchase or provide feedback, visit:
curtmfg.com/registration
RANCHHAND.COM
PRODUCT SUPPORT: 877.287.8634
•

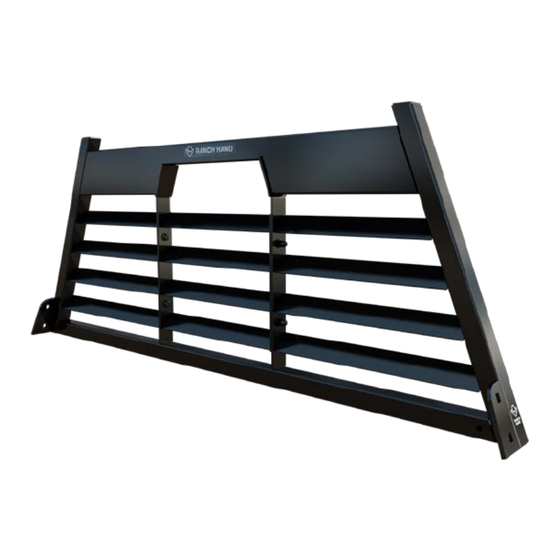

Product Photo
NOTICE
Visit www.ranchhand.com for a full-color copy of this
instruction manual, as well as helpful videos, guides and much more!
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
Periodic inspection of your product should be performed
to ensure all hardware and / or components remain secure.
Shock assemblies need to be greased upon install
and periodically to ensure smooth and quiet operation.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
Maintenance
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Shock assemblies need to be greased upon install
and periodically to ensure smooth and quiet operation.
HRLNL100-INS-RA 03/15/2023
• •
ECN10493 PAGE 1
• •
