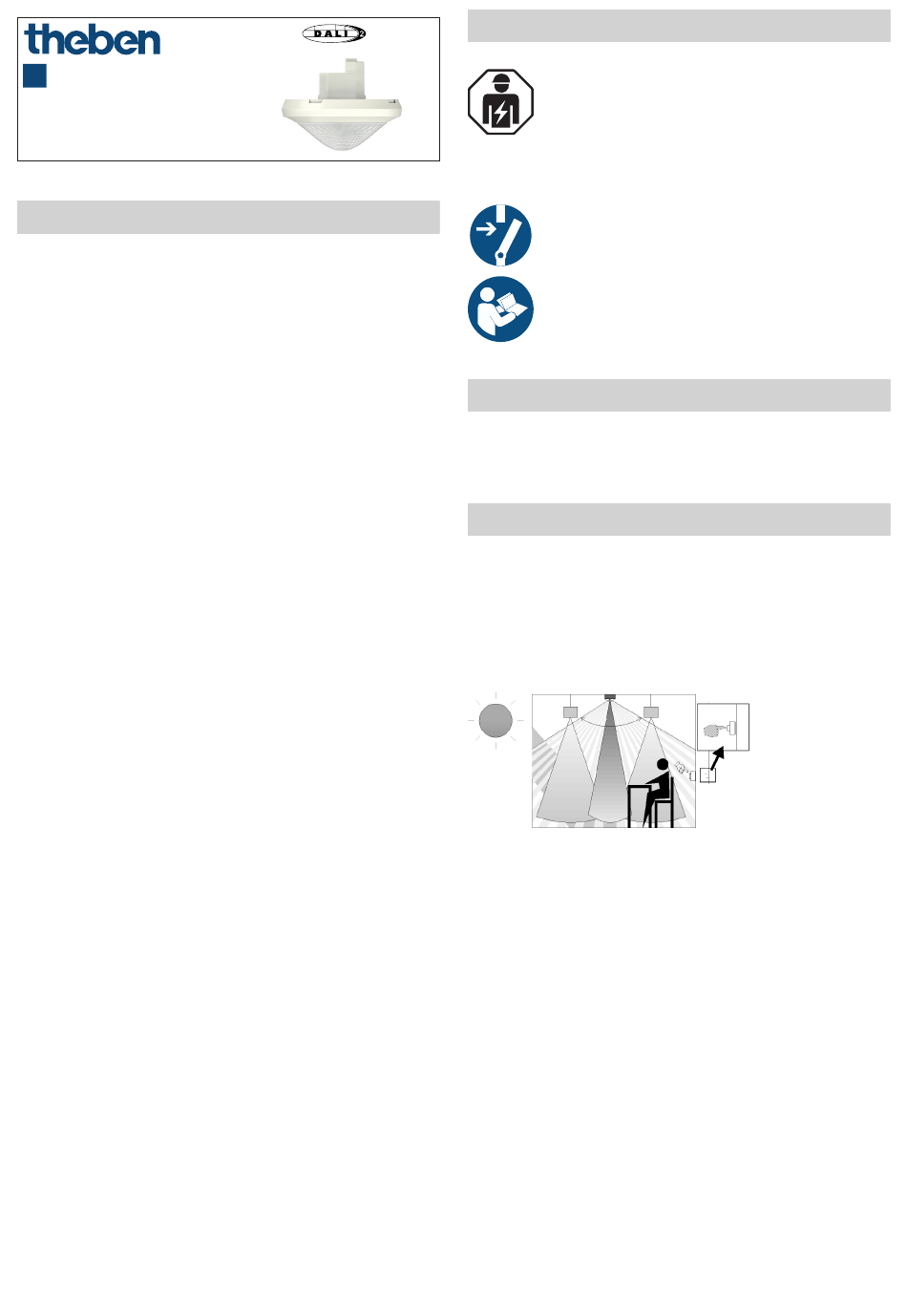

Presence detector
Hide thumbs Also See for theRonda P360-330 DALI UP WH:

Advertisement

Quick Links

Presence detector
EN
theRonda P360-330 DALI UP WH
2080045
1. Product characteristics
Passive infrared presence detector for ceiling installation
Circular detection area 360° (up to 452 m
Restriction of detection area with cover clips
Automatic lighting control with constant lighting control
or switching operation
Lighting dimmable in switching operation with or wit-
hout effect of daylight
Orientation light (standby function)
DALI solution for up to 3 flexibly addressable lighting
channels
Additional light channel 4 with external DALI relay
DALI-2 certified
Easy, intuitive configuration of DALI groups
Mixed light measurement suitable for fluorescent lamps
(FL/PL/ESL), halogen/incandescent lamps and LEDs
Adaptable 3-channel light measurement
Calibration of brightness measurement
Fully or semi-automatic operation, switchable
Brightness setpoint value adjustable in lux
Teach-in function via remote control or button
Self-learning time delay
Reduction of time delay when present briefly (short-term
presence)
Detection sensitivity configurable
1 presence channel for external DALI relay, e.g. for HVAC
control
Connection option for up to 3 conventional buttons for
manual dimming and switching
Flexible assignment of buttons to required lighting chan-
nel by remote control
Behaviour upon button operation selectable
Scene functionality
Easy configuration of the energy-saving response with
"eco plus" function
Test mode for checking function and detection area
Light test mode for checking the brightness threshold
and the constant light control
Extension of detection area via Master/Slave or Master/
Master switching
Master-slave switching with slave devices (230 V) or
DALI-2 sensors possible
Protection rating IP 54 (installed)
Ceiling installation in flush-mounted box
Surface mounting on ceilings possible with back box
(option)
Management remote control theSenda B with app the-
Senda Plug (optional)
User remote control theSenda S (option)
2. Safety
307290 03
07.08.2024
)
2
3. Proper use
The presence detector is intended for installation indoors and
controls the lighting.
4. Function
The presence detector is primarily used in offices, schools,
conference rooms and corridors, as well as in homes, for easy
and energy-efficient control of lighting. The lighting is accor-
dingly influenced by switching or constant lighting control.
Function description
 Mixed light measurement
 Presence detection
 Artificial light
 Push button for manual lighting control
 Incident daylight
Lighting channel C1, C2, C3
The lighting is controlled by presence and brightness. Artificial
lighting is switched on and regulated at a constant brightness
level via the DALI interface in the event of too little daylight
and when the room is occupied.
The lighting is switched off via the DALI interface if there is
sufficient daylight or if the room is unoccupied.
Up to 3 lighting groups (lighting channels C1 - C3) can be
configured on one single DALI line. DALI devices can be
addressed and grouped very easily and intuitively. A detailed
description can be found in chapter „9. Start-up".
Constant light control
Constant light control compensates for variations in daylight
by controlling the lighting. The overall brightness will be
kept constant at the desired brightness level. The lighting is
Assembly and installation should only be carried
out by a qualified electrician, somebody who has
completed appropriate professional training and
has the knowledge and experience necessary to be
able to recognise and avoid the potential dangers
posed by electricity.
Before installation/disassembly, disconnect the
power supply and ensure that the parts are no
longer live.
Prior to commissioning and using the product, read
the entire manual and follow the instructions.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the theRonda P360-330 DALI UP WH and is the answer not in the manual?

Questions and answers

Summary of Contents for Theben theRonda P360-330 DALI UP WH

  • Page 1 07.08.2024 Presence detector Assembly and installation should only be carried out by a qualified electrician, somebody who has theRonda P360-330 DALI UP WH completed appropriate professional training and 2080045 has the knowledge and experience necessary to be able to recognise and avoid the potential dangers posed by electricity.
  • Page 2: Detection Area

    switched on with the switch-on dimming value and controlled L Please pay attention to the differing behaviour of the so that it reaches the set brightness setpoint value. Depen- constant light control and the switching operation, which ding on „school“ or „office“ configuration type, the presence is described in the corresponding chapter.
  • Page 3: Ceiling Installation

    • The recommended installation height is 2 m – 6 m. As 2-channel: Window light measurement (B) is perma- installation height increases, the sensitivity of the presence nently assigned to lighting channel C1 and interior light detector decreases. Walking motions are necessary from ins- measurement (C) to lighting channel C2 •...
  • Page 4: Surface-Mounted Installation

    9070992 S3/P Master S1 S2 DA+ DA– DALI Master/slave & master - DALI-2 sensors parallel switching If the detection area covered by a single presence detector is not sufficient (large rooms), 230 V slave detectors can be Surface-mounted installation connected in parallel by connecting the P terminals. DALI-2 sensors can also be connected to the DALI line for this pur- A back box 110A is available for surface mounted installation pose.
  • Page 5 Integrating an external DALI relay theSenda Plug theSenda • Parameter Description Query Change Change No more than 1 external DALI relay can be connected Selection: on one single DALI line. The Dali relay must comply with C1, C2, C1+C2, C3, Standard IEC 62386-208 (device type 7).
  • Page 6 Value range (with theSenda B/App) theSenda Plug theSenda Centre Lighting channel C3 uses the central light measurement (A), Parameter Description Query Change Change spot metering. Maximum dim- Value range in % Integral Lighting channel C3 uses the average of all 3 light measure- ming value ments (A + B + C).
  • Page 7: Detection Sensitivity

    presence is detected (in configuration type fully automatic Room correction factor = Brightness value at the ceiling device). Brightness value on the work A separate brightness setpoint value is available for each surface lighting channel C1, C2, C3. We recommend the following procedure: Dim all lights as far as possible.
  • Page 8: Configuration Type

    Lighting time delay Value range (with theSenda B/App) Switch-on dimming value C1, C2, C3 1 – 100 % The time delay applies jointly to all lighting channels. Configuration type C1/C2 Value range Adjustable values with app theSenda Plug 10 s – 4 h Fully automatic device: the lighting switches on and off auto- In the theSenda P installation remote control, the matically.
  • Page 9 Dimming speed man. dimming Using the theSenda S user remote control, the group addres- ses can be assigned as follows: The parameter ‘Dimming speed man. dimming’ can be used For IR group address C1: to set the dimming speed via the connected push-button or theSenda S/theSenda B remote control.
  • Page 10: Light Test

    • When motion is detected, the lighting is switched on. Control command Description Can be Can be • triggered triggered Constant light control is deactivated (switching mode). • theSenda theSenda Teach-in cannot be activated in test mode. B/App • The lighting is switched off after 10 seconds when the DALI Configuration of the lighting room is unoccupied.
  • Page 11 Configuring the lighting groups with the theSenda B/app ser- Parameter Value vice remote control Response after dimming school Standby time Connect the theSenda B with the corresponding theSenda † Standby dimming value 10 % Plug app. Standby assignment C1+C2+C3 Place the theSenda B under the detector (direct the remote †...
  • Page 12: Troubleshooting

    ▻ The lamp confirms the assignment by dimming to 20 % Detection area, horizontal 360° (3 s after the last button push). Maximum range Ø 7 m (Mh. 3.5 m) / 38 m seated ▻ The next DALI lamp starts to pulse. In this way, all of the Ø...
  • Page 13: Dimensions Diagrams

    11. Dimensions diagrams 12. Accessories Back box 110A WH Item No.: 9070912 Details > www.theben.de/en Back box 110A GR Item No.: 9070913 Details > www.theben.de/en DE (ceiling installation) box 73A Item No.: 9070917 Details > www.theben.de/en Cover clip for area restriction Item No.: 9070921...
