HAISEN HD05R Manual

SCREEN DISPLAY, MEMORY &
APPLY FUNCTION,
OPTIONAL SCENES
Model: HD05R
PIR
s
PW
s
M
Lux
MW/PIR Scene
Start Memory Apply
Hold time
Detection range
Stand-by dimming Stand-by period
Test
POWER
(2S)
%
Daylight sensor

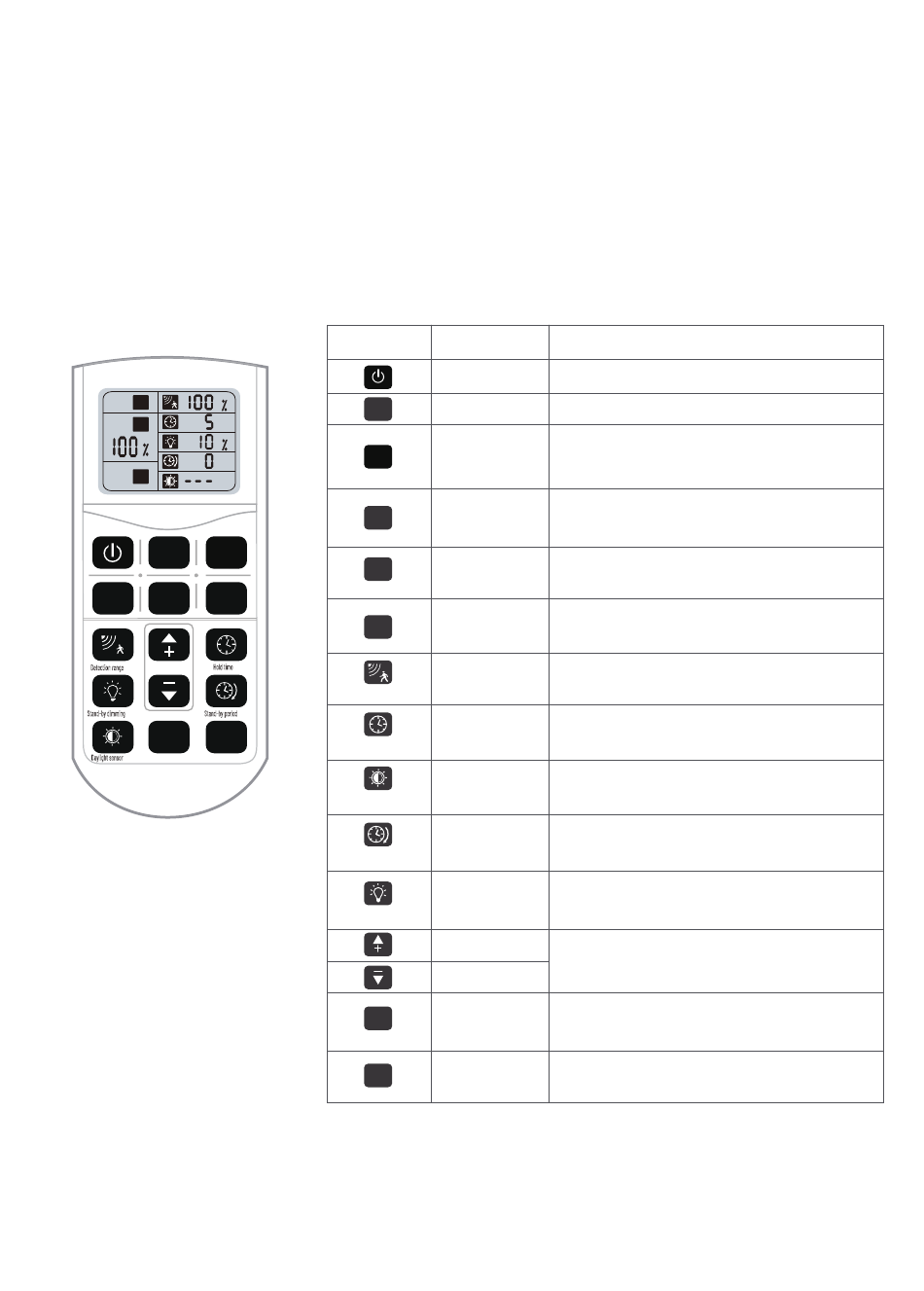

Briefing of Button Functions
Buttons Function
ON/OFF
MW/PIR
MW/PIR
Reset
Scene
Start
Start
Memory
Memory
Apply
Apply
Detection area
Hold time
Daylight
Threshold
Stand-by period
Stand-by
dimming level
UP
DOWN
POWER
POWER
%
Test mode
Test
(2s)
Performance
Turn ON or OFF the sensor.
Exchange from Microw ave detection to PIR detection, for future use.
Press it to start detection programming; before pressing any other
buttons, the screen shows default programming (Detection Area 100%,
Holdtime 5S, Daylight Disable, Standby Dimming 10%, Standby Period 0S)
Press it before you try to memorize program into the remote; After
pressing it, S on the screen will blink and keeping blinking while making
the program.
Press it after programming, the blinking S will become a solid M, that
means the program has been well memorized.
Press it to deliver the preset program to the specific sensors;
will make the whole screen blink gently.
Also known as "sensitivity", 100% means the highest sensitivity and
longest distance. Press it, specific icon on the screen will bli nk and press
the + - buttons to adjust.
The period that light will stay illuminated 100% after no motion's
detected; Press it, specific icon on the screen will blink and p ress the +
- buttons to adjust.
The preset lux level to compare with ambient brightness when motion
gets detected; Press it, specific icon on the screen will blink
the + - buttons to adjust.
The period after holdtime, during which the light keeps standby
dimming level; Press it, specific icon on the screen will blink
the + - buttons to adjust.
After holdtime, the light will dim from 100% to optional standby dimming
levels; Press it, specific icon on the screen will blink and pre ss the + -
buttons to adjust.
The main functional buttons to adjust the factors to wanted level.
Supports to manually change dimming output in detection mode; Press
it, specific icon on the screen will blink and press the + - b uttons to
adjust.
Supports to check if the sensor works correctly with a short 2S holdtime;
Press it and the holdtime will change to 2S, and it can't be memorized.
every press
and press
and press
