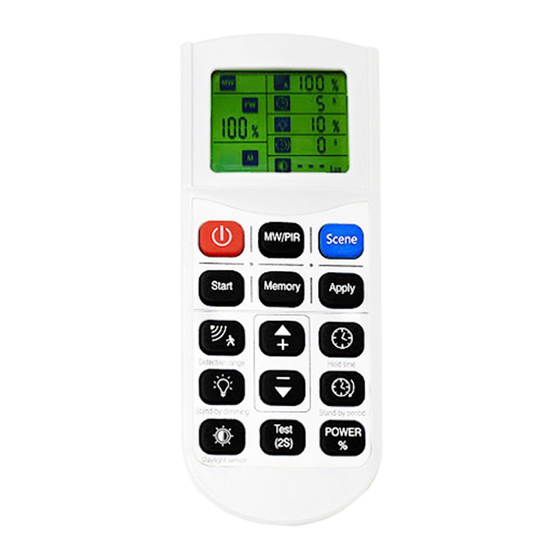

HD05R
Screen Display, Memory
& Apply Function, Optional Scenes
ON/OFF
Turn on or turn off the remote control.
WM/PIR
Change from the microwave sensor function to PIR sensor function, and the
other around.
Scene
Press the button to change from the different scene options.daylight threshold
disabled.
Start
Press the button before choosing the parameters; or press it for 10S, it will be
RESET function.
Memory
Press the button after choosing all the parameters to save them.
Apply
Press the button to deliver the saved settings to the other sensors directly.
Hold time
The period of light keeping 100% brightness after moving objects leave the
detection area.
Stand-by period
The period of light keeping low output before it gets completely off. When it's preset
as --, the light always keep at low output even no movement in the detection area.
Power %
Press the button to change the output power from 0% to 100%, it changes 5%
every press.
Test (2s)
The button "Test (2s)" is for testing purpose after commissioning.Pressing this
button,the sensor goes to test mode (hold time is only 2s).
Daylight Threshold
Definition of the ambient brightness; only when the ambient brightness is lower
thanthe preset specific lux amount, the sensor will work; when it's preset as
"disable", the sensor works everytim e i t d e t e c t s m o t i o n r e g a r d l e s s o f t h e
ambient lux level.
Detection Range
The area in which movement will trigger the sensor, 100% detection area also
means strong sensitivity.
Stand-by dimming level
The definition of low output during the standby period.
Increase or decrease the parameters.
Advertisement
Table of Contents
Related Manuals for HAISEN HD05R
Summary of Contents for HAISEN HD05R
- Page 1 HD05R Screen Display, Memory & Apply Function, Optional Scenes ON/OFF Turn on or turn off the remote control. WM/PIR Change from the microwave sensor function to PIR sensor function, and the other around. Scene Press the button to change from the different scene options.daylight threshold disabled.
- Page 2 Function setting guide (Note: All the following operations must be completed within 30 seconds, otherwise the setting will fail.) a. As shown in step ①②③, after pressing “ ” “ ” “ ”, the “ ”icon will flash on the screen, which means entering the setting mode.
Need help?
Do you have a question about the HD05R and is the answer not in the manual?
Questions and answers
quiero eliminar La luz que queda encendida des pues de apagarla.
@JOSE MANUE
To turn off the light that stays on after turning off the HAISEN HD05R, follow these steps:
1. Press the ON/OFF button to turn the light on.
2. Press the SCENE button to enter detection mode.
3. Press the TEST (2S) button to activate test mode, where the light will turn off after 2 seconds.
Note: The test mode setting will not be saved in the remote.
This answer is automatically generated
is there a way to keep them on 24/7 with the controller?
Yes, the HAISEN HD05R can be kept on 24/7 using the controller. The standby period setting allows the light to remain at a low output continuously if set to "--", meaning it will not turn off even when no motion is detected. Additionally, the controller can switch between sensor mode and on/off mode, allowing manual control to keep the light on.
This answer is automatically generated
is there away to have the lights turn off at the end of the day?
To set the HAISEN HD05R lights to turn off at the end of the day, you can adjust the Stand-by period and Hold time settings:
1. Press the ON/OFF button to turn on the light.
2. Set the Hold time to define how long the light stays at 100% brightness after motion is detected.
3. Set the Stand-by period to determine how long the light remains at a low output before turning off completely. If you want the light to turn off after a set time, choose a specific duration. If you want the light to stay dim all night, set it to "--".
4. Use the Memory button to save the settings.
5. Press the Apply button to transfer the saved settings to other sensors if needed.
This configuration will allow the lights to turn off or stay dim based on your chosen settings.
This answer is automatically generated
