- Page 1 JB05 & TF2/TV2/TF4 INSTALLATION GUIDE V1.0.0...
-
Page 2: Installation

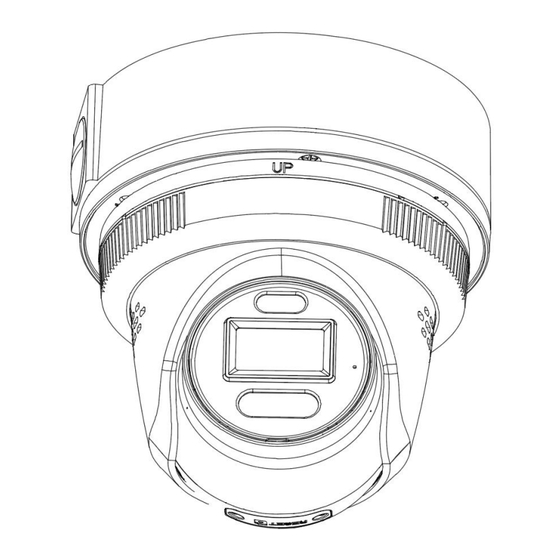

APPEARANCE AC-JB05 INSTALLATION 1. Stick the mounting template to the wall where the junction box will be installed. Then drill the holes as marked on the template. 2. Insert the expansion bolts into the drilled holes and tap them in with a hammer. - Page 3 4. Thread the tail wire through the hole of the junction box, tighten the 4 screws with black rubber ring pads to fix the junction box on the wall.
- Page 4 5. Thread the tail wire through the hole of the cover, fix the cover on the junction box. 6. Connect the camera's tail cable and put the cable back into the junction box through the round hole. (The round hole has enough space for plugging the wire).
- Page 5 7. Put the cable back into the junction box through the round hole. (The round hole has enough space for plugging the wire). 8. Put the seal plug in the junction box. [NOTE] Please do not insert the tail cable completely into the cable compartment, in order to facilitate the adjustment...
- Page 6 9. Match JB05 & TF2 with the three mounting screw holes, as shown bellow. TF2 Shell Camera JB05 TF4 (none AD) Shell Camera JB05 TF4 (none AD)
- Page 7 TV2/TF4 (AD) Shell Camera TV2/TF4 (AD) TV2/TF4(AD) base JB05 [NOTE] TF4 (AD) refer to TF4 shell with active deterrence camera. Please loosen the screws, separate the camera base, and then connect the number 1 holes of the junction box.
- Page 8 TF4 (none AD) Shell Camera TV2/TF4 (AD) Shell Camera...
- Page 9 11. Align the TV2/TF4 (AD ) shell camera’s slot and then attach the camera to the camera base as shown below. [NOTE] Please skip this step if your camera is TF2 model or TF4 (none AD) camera. 12. Power on the camera to check whether the image on the monitor is gotten from the optimum angle. If not, adjust the camera according to the figure below to get an optimum angle, and then tighten the screws or lock TF2’s cover.
- Page 10 13. Turn clockwise to fix the cover and complete the TF2 installation. APPENDICE JB05...
- Page 11 Screw Hole No. on JB05 JB05 Match Camera Shell Screw Hole 1 TF4、TV2、DV2 Screw Hole 2 Screw Hole 3 Screw Hole 4 BF6、MSB62 Screw Hole 5 BF4、BV2...
