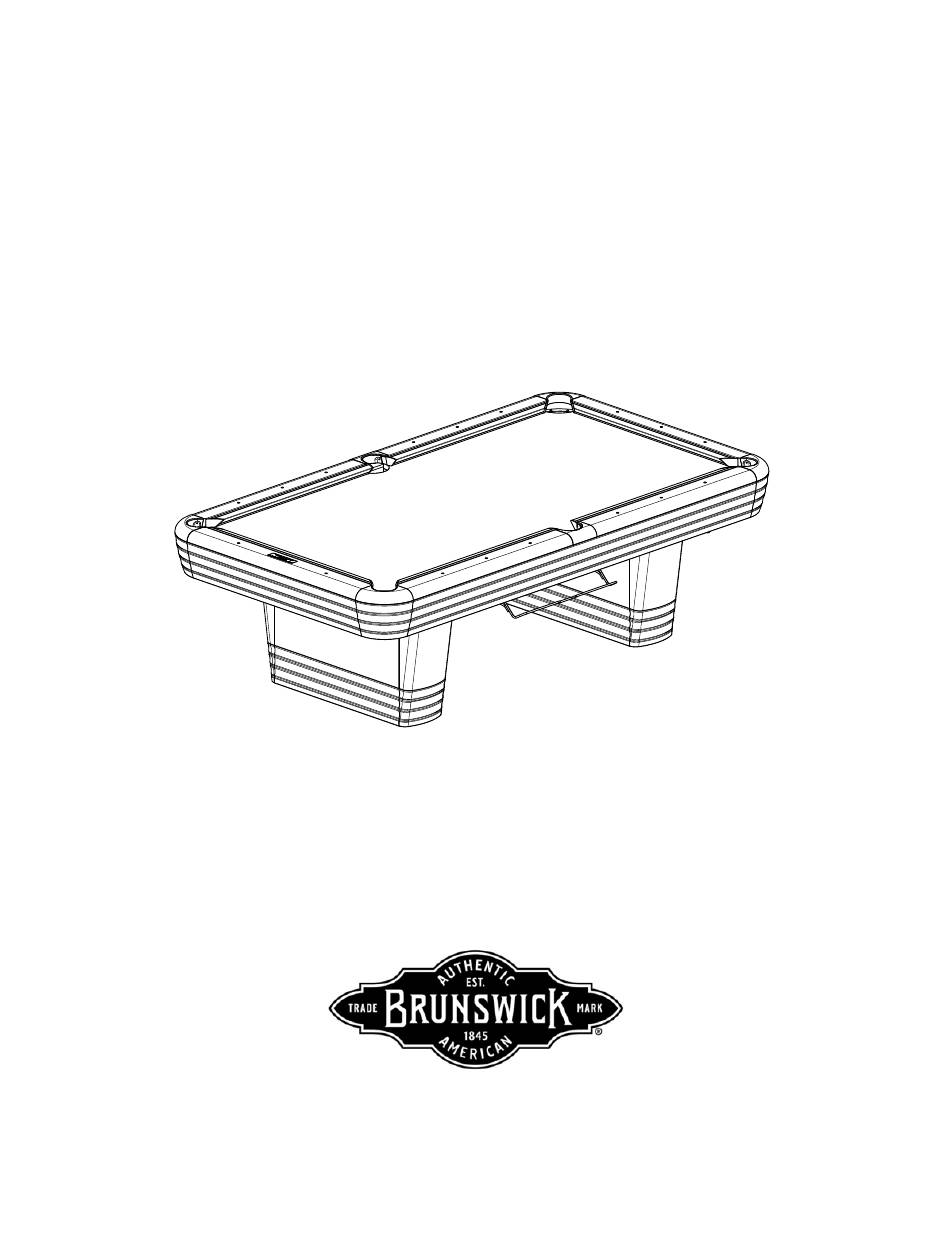

- Page 1 Centennial™ POCKET BILLIARD TABLE INSTALLATION MANUAL www.brunswickbilliards.com SERVICE DEPARTMENT P.O. BOX 68 BRISTOL, WI 53104 EMAIL: BRUNSWICKSERVICE@BRUNSWICKBILLIARDS.COM February 2021 51-906277-000...
- Page 2 NOTE: Please use the instructions in this manual to assembly the tables shown below. Also note that careful handling of all components will assure damage-free assembly. PAGE 2 BRUNSWICK INSTALLATION MANUAL...
- Page 3 Step #4: Once full engagement has been achieved, fasten components together using 1/2-13 x 4 1/2 hex head bolts, 1/2 at washers and 1/2-13 rectangular nuts. Tighten each joint securely. 1/2 FLAT WASHER 1/2-13 x 4-1/2” HEX HEAD SCREW FIGURE TWO BRUNSWICK INSTALLATION MANUAL PAGE 3...
- Page 4 Step #7: Position the assembly in its permanent location. Step #8: Using a precision leveling devise, place shims under pedestal foot pads as needed to insure the top surface of the base frame is level prior to placing slate. SHIM FIGURE FOUR PAGE 4 BRUNSWICK INSTALLATION MANUAL...
- Page 5 5/32” diameter holes into the SECTION mounting cleats. Step #5: Loosely fasten all sections with 1/4 x 2-1/2 at head screws. Proceed to gure three before tightening screws securely. PENCIL FIGURE TWO BRUNSWICK INSTALLATION MANUAL PAGE 5...
- Page 6 1-1/2” wide by 8” long and glue the strips to the pocket cutouts. This is important as this will provide cushioning from ball impact and the bed cloth will last much longer. FIGURE FOUR PAGE 6 BRUNSWICK INSTALLATION MANUAL...
- Page 7 #5 and toward the side pocket from #2 and tack or staple at #7. Step #10: Repeat Step 7, stretching from #6 and toward the side pocket from #4 and tack or staple at #8. FIGURE THREE BRUNSWICK INSTALLATION MANUAL PAGE 7...
- Page 8 NOTE: Occasionally cloth will stretch, leaving wrinkles at the pockets. To retighten, remove apron, one end rail and one side rail. Pull cloth taut, and retack or restaple along the open end and side to restore original tightness. FIGURE SEVEN PAGE 8 BRUNSWICK INSTALLATION MANUAL...
- Page 9 Step #6: Turn rail over and at corner pockets fold the cloth over the mitred edge as shown, stretching tightly and working out any wrinkles as you staple three places in area shown. FIGURE FIVE BRUNSWICK INSTALLATION MANUAL PAGE 9...
- Page 10 Step #12: Hold the small fold in place with thumb and forenger and rmly hold it down over facing. Then staple at rear of facing and at bottom of rail as shown. Step #13: Trim excess cloth as required. FIGURE TEN PAGE 10 BRUNSWICK INSTALLATION MANUAL...
-
Page 11: Rail Assembly
Step #4: With hex cap screws tightened, drive #8 x 3/4” pan head screws through the holes provided in each casting tab, into bottom surface of wood rail. Two screws per tab, two tabs per casting. FIGURE THREE BRUNSWICK INSTALLATION MANUAL PAGE 11... - Page 12 1/4-20 x 3/4” hex head bolts. Align each apron end with front prole of ball storage rack and tighten all fasteners. #1/4-20 x 3/4 HEX HEAD BOLT #1/4-20 x 3/4 HEX HEAD BOLT FIGURE THREE PAGE 12 BRUNSWICK INSTALLATION MANUAL...
- Page 13 Center entire rail and apron assembly across width NUT PLATE and length of the slate and tighten to a recommended torque of MACHINE STUD 15 ft/lbs. S L A T E DOMED WASHER 3/8-16 NUT F R A M E FIGURE SIX BRUNSWICK INSTALLATION MANUAL PAGE 13...
- Page 14 Attach utilizing the pre-drilled pilot holes in the end sill. After initial attachment, hang eight and nine ball racks, if available, and adjust racks as needed vertically. #8 x 3/4 PAN HEAD SCREW #8 WASHER TRIANGLE RACKS FIGURE TWO PAGE 14 BRUNSWICK INSTALLATION MANUAL...
- Page 15 (Head bed spot optional and located in the same manner) HEAD FOOT SPOT SPOT FIGURE FOUR BRUNSWICK INSTALLATION MANUAL PAGE 15...
- Page 16 Step #2: Align and attach the receiver box assembly using 5/16-18 x 4” 5/16 HEX NUT hex head bolt, at washers and 5/16-18 hex nuts. FLAT WASHER 5/16-18 x 4 HEX HEAD BOLT FLAT WASHER FIGURE TWO PAGE 16 BRUNSWICK INSTALLATION MANUAL...
- Page 17 LH HEAD GULLY TRACK LH FOOT GULLY TRACK BASE FRAME BASE FRAME #10 FENDER #10 FENDER WASHER WASHER #10 x 1-1/4 PAN #10 x 1-1/4 PAN HEAD SCREW HEAD SCREW GULLY TRACK GULLY TRACK FIGURE FOUR BRUNSWICK INSTALLATION MANUAL PAGE 17...
