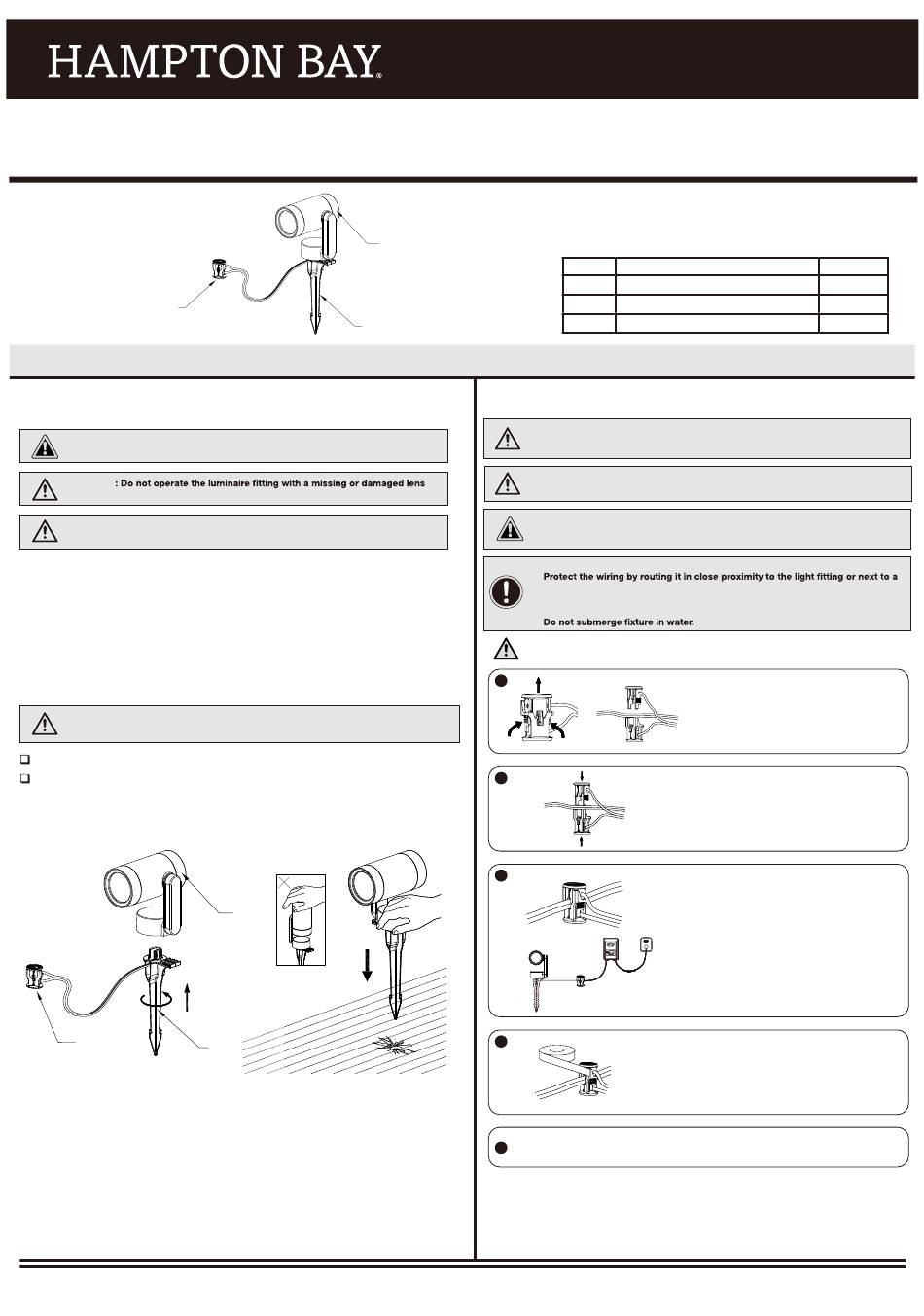

HAMPTON BAY L08557-BK Use And Care Manual

Please read and save these instructions.
PACKAGE CONTENTS
C
Assembly and Installation
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS
IMPORTANT SAFETY INSTRUCTIONS.
CAUTION: Safe for outdoor operation.
WARNING
or bulb protector.
WARNING: Install in accordance with all local codes and ordinances.
Only for use with low voltage power units with a maximum output rating of 12V,
300W per secondary.
FOR LANDSCAPE LIGHTING SYSTEMS ONLY. OUTDOOR USE ONLY. THE DEVICE IS
ACCEPTED AS A COMPONENT OF A LANDSCAPE LIGHTING SYSTEM WHERE THE
SUITABILITY OF THE COMBINATION SHALL BE DETERMINED BY CSA OR LOCAL
INSPECTION AUTHORITIES HAVING JURISDICTION.
ETL LISTED UNDER MODEL # L08557.
1
Attaching and installing the light
WARNING: Never push the fixture into the ground by the light (A) or use a
hammer to insert the spike (B) into the ground.
Carefully remove the fixture from its protective packaging.
Attach spike (B) and light (A) together by turning them
anti clockwise.
C
A
B
A
B
Part Description
A Light
B
Spike
C Connector
2
Connecting the wires
WARNING: The wire connector (C) contacts have sharp edges for piercing the
main low-voltage cable. To avoid injury, do not touch the metal contacts.
WARNING: Risk of Electric Shock. Install all luminaires 10 ft. (3.05 m) or more
from a pool, spa or fountain.
CAUTION: The wire from the low-voltage power unit shall be 12-18 AWG type
underground low energy circuit cable or SPT2W.
IMPORTANT:
•
building structure such as a house or deck.
• The landscape wire and connector can also be hidden under stone or buried
under grass at a maximum depth of 6 in. (15.24 cm).
•
BE CAREFUL! THE WIRE STABS ARE VERY SHARP!
1
2
3
4
After all fixtures are installed, turn on the transformer.
5
Note: If you want to install this with your existing low-voltage lighting
system, put the existing landscape wire in the connector instead,
and make sure the wire size is within below types:18AWG to 12AWG
SPT-2W wiring.
- 1 -
Item #1009 604 898
Model #L08557-BK
Use and Care Guide
RGBW LED SPOT LIGHT
Place the wire connector (E) on
opposite sides of the low voltage
cable (not included) where the
fixture will be located.
Align and fit the main low voltage
cable vertically to the slot of the
wire connector (E) as shown.
Press the wire connector (E) together
until fully seated and locked around
the cable. Pre-set prongs will pierce
the cable insulation and establish
contact. Turn on the power unit. If the
light fixture does not turn on, repeat
the previous steps.
Once the clip-on connector (E) is in place,
it is recommended to wrap it with electrical
tape for additional protection.
Quantity
1
1
1
