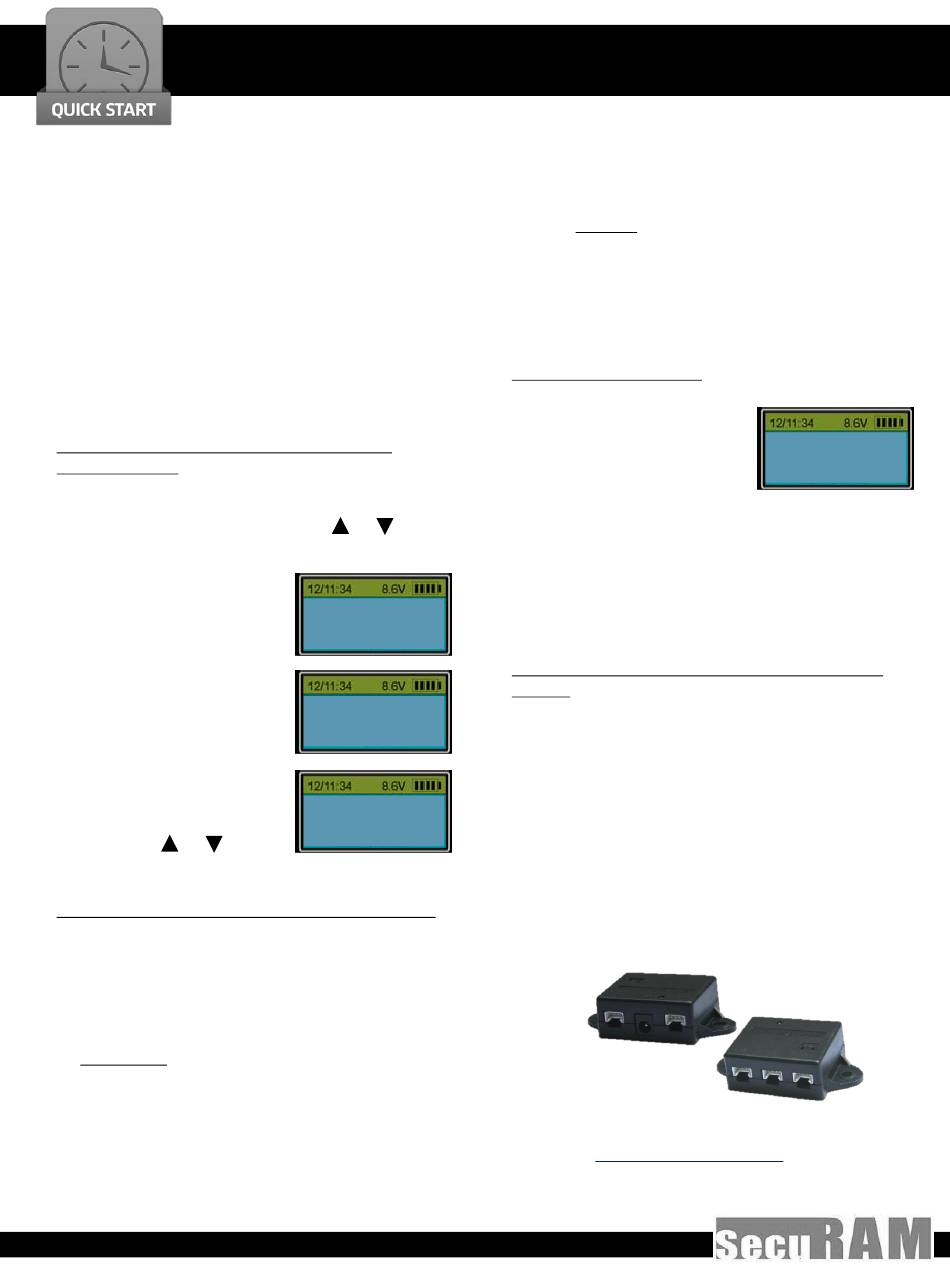

Securam ProLogic EntryPad Quick Start Manual

This guide will describe the process to set up Multi-Lock configurations, where one
ProLogic EntryPad is used to control up to 4 lock bodies .
The ProLogic Series (L02-L68) can be programmed
to manage up to 4 lock bodies from a single
EntryPad. This is accomplished using the Junction
Box (CB11-1T4). Please see the attached Multi-
Lock wiring diagrams for recommended
configurations.
To program the EntryPad to control multiple lock
bodies:
Step 1: Program the EntryPad to accept
Multiple Locks
• Enter the System Menu. When the LCD screen
shows "Select Menu", press the
until you see the menu selection " Set Number
of Locks"
• Press OK
• Now enter the Mfc. Code:
975246
• Now indicate the number
of Locks to be controlled.
• To change the number,
press the or
• Press OK.
Step 2: Set the Lock# for the First Lock Body
Each lock must be identified in the system by a
unique lock number, i.e Lock#1, Lock#2, etc.
• Connect the EntryPad cable to the port on the
CB11-1T4 marked J0
• Connect the Lock cable to the port on the CB11-
1T4 marked J1
• Disconnect the Lock Cable from the Lock Body
• Install the battery in the EntryPad.
• Locate the Reset button on the back of the Lock
body.
• Using a poke tool depress the reset button and
hold
SecuRam: Security You Can Trust...Ram Tough!
S e c u R a m : R e l i a b l e .
Quick Start Guide
or buttons,
Set Number
of Locks
Enter Mfc.
Code
Number of
Locks: 04
buttons.
I n n o v a t i v e .
Multi-Lock SetUp
-
• Now connect the Lock Cable from the junction
Box (CB11-1T4) to the lock, while holding down
the reset button
• Continue to hold down the reset button for 5
seconds
• Release the Reset button
Step 3: Open the Lock
• Enter the Manager Code to open the Lock.
• The screen will request that
a Lock number be
specified
• Press the button on the Entrypad that
corresponds to the number you would like to
name this lock. (i.e. if this lock is to be named
Lock#1, press "1",etc.)
• This opens the lock and names it accordingly.
Step 4: Set the Lock# for the remaining Lock
Bodies
• Disconnect all other locks from the junction box
(CB11-1T4).
• Connect the next lock to be identified by the
EntryPad to the next available port on the
junction box (CB11-1T4)
• Repeat Steps 2 and 3 (above) to name this lock
• Repeat this process to identify the remaining
locks

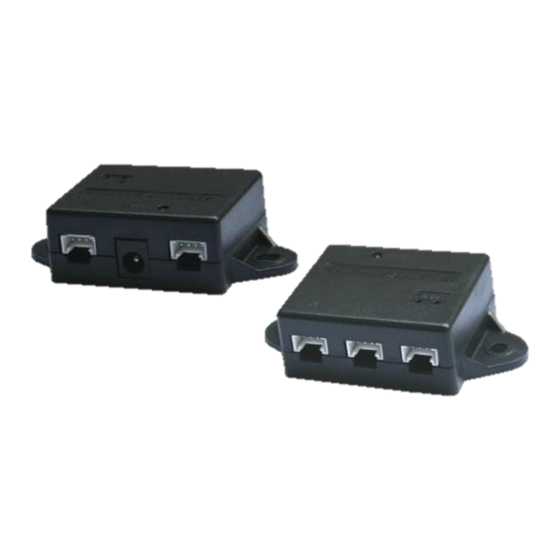

Junction Box – Part # CB11-1T4
For a full set of Operating Instructions visit our
website at www.securamsys.com
