ADX FIREBASE MT01 Instruction Manual

Currys Group Limited (co. no. 504877)
1 Portal Way, London, W3 6RS, UK
EU Representative
Currys Ireland Limited (259460)
3rd Floor O ce Suite
Omni Park SC, Santry, Dublin 9, Republic of Ireland
SAFETY
KG
SCREEN SIZE MAX
32"-50" MONITOR/TV LOAD
35 kg
WARNING! READ THE FOLLOWING BEFORE STARTING INSTALLATION
• Ensure that you have received all parts according to the unpacking checklist prior to installation. If any parts are missing or faulty,
contact your place of purchase for a replacement.
• Assembly is required. Please follow the assembly instructions. Improper installation may result in damage or severe personal injury.
• Using the mount with products heavier than the rated weights indicated may result in instability, causing possible injury.
• Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and
components.
• Use the mounting screws provided and do not over-tighten them.
• Safety gear and additional tools (not included) are required for the installation. This product should only be installed by
professionals.
• Parts are heavy; take care when handling. Two people are required for installation during some steps.
• Check that the product is secure and safe to use at regular intervals (at least every three months).
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
• This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
• Keep this quick start guide for future reference.
Visit Partmaster.co.uk today for the easiest way
to buy electrical spares and accessories. With
over 1 million spares and accessories available
we can deliver direct to your door the very
next day. Visit www.partmaster.co.uk or call
0344 800 3456 (UK customers only) Calls
charged at National Rate.
IB-ADXMT0125-240718V1
VESA COMPLIANCE
75x75 100x100 200x100
200x200 300x200 400x200
MONITOR MOUNT
INSTRUCTION MANUAL
ADXMT0125
For use exclusively with the ADX Firebase
RS03 Racing Seat (ADXRS0325).
Compatible only with VESA-compatible
monitors and TVs.

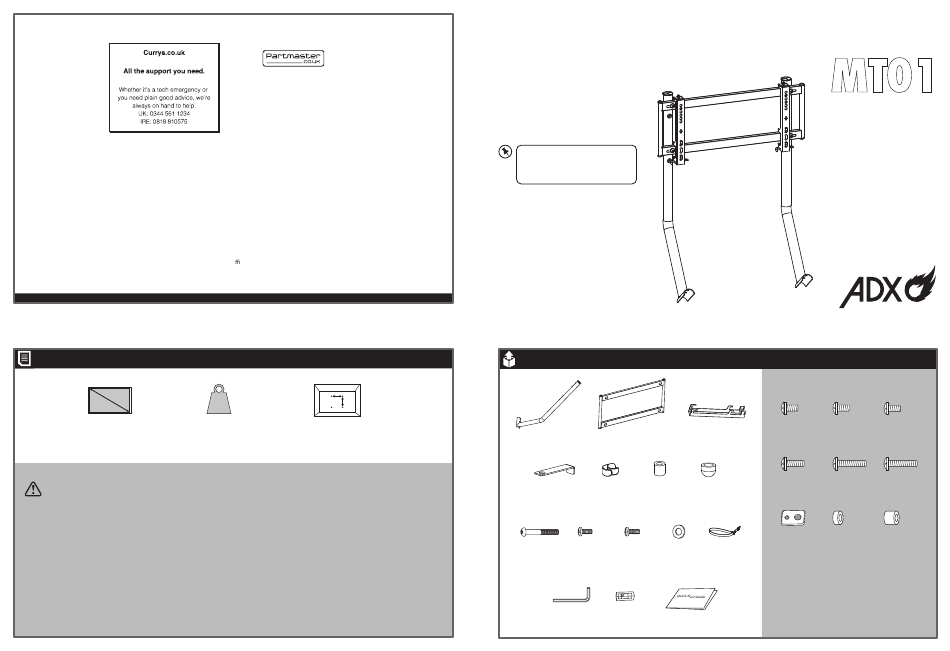

UNPACKING
A x 2 B x 1
D x 2 F x 4
E x 2
(Spacer)
(Cable clip)
Ø15 x Ø8 x 15
H x 4 I x 2 J x 2 K x 4
M8 × 50mm M6 × 14mm M6 × 20mm D8
M x 1 N x 1
5mm (spirit level) (Quick start guide)
FIREBASE
Vesa Mount Screws, Spacers & Washers
O × 4 M-A × 4
M4 × 12mm M5 × 14mm
C x 2
M-D × 4
M-C × 4
G x 2
M6 × 30mm
M8 × 20mm
M-F × 4 M-G × 8
(Washer) (Spacer)
L x 4
D5-D8 Ø15 x Ø8 x 5
M-B × 4
M6 × 14mm
M-E × 4
M8 × 30mm
M-H × 4
(Spacer)
Ø15 x Ø8 x 15
