Summary of Contents for ADX ADXDMGT17

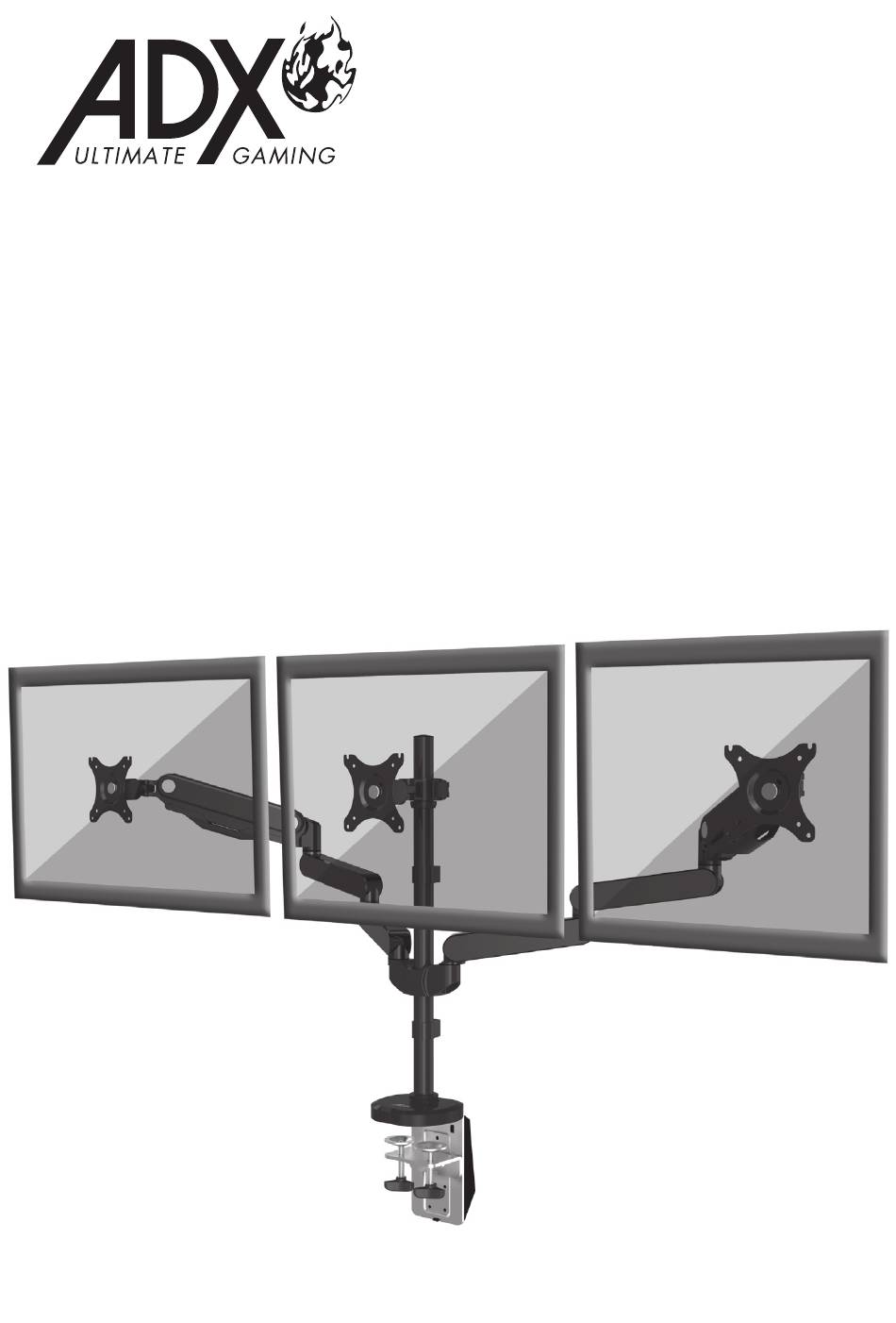

- Page 1 DELUXE TRIPLE SCREEN GAS SPRING MOUNT IDEAL FOR GAMING MONITOR INSTRUCTION MANUAL ADXDMGT17...
- Page 3 CUSTOMER HELPLINE (UK Customers Only) 0344 561 1234 KUN KUNDER I STORBRITANNIA ENBART KUNDER I STORBRITANNIEN VAIN ISO-BRITANNIAN ASIAKKAILLE KUN FOR BRITISKE KUNDER 17” – 30” 2 – 9 kg 75 x 75 mm 100 x 100 mm Monitor size Monitor load VESA compliance Skjermstørrelse...
- Page 4 WARNING! READ THE FOLLOWING BEFORE VAROITUS! LUE SEURAAVA ENNEN STARTING INSTALLATION ASENNUKSEN ALOITTAMISTA • Assembly is required. Installation must be • Kokoonpano vaaditaan. Asennuksen saa carried out by qualified personnel only. suorittaa vain pätevä henkilö. Virheellinen Incorrect assembly can result in severe kokoonpano voi johtaa vakaviin henkilö- ja personal injury and property damage.
- Page 5 In st ru c ti o n M a n u a l 3 × 3 4 × 4 5 × 5 x 12 x 12 x 12 x 12 x 24 M4 × 8 M4 × 12 M5 × 8 M5 ×...
- Page 8 D1 D2 D3 D4 VESA COMPLIANCE 100 x 100 mm VESA COMPLIANCE 75 x 75 mm Choose the size of screw that is suitable for your monitor. The screws may not be compatible for all monitor types. Velg en skruestørrelse som er egnet for skjermen. Skruene kan ikke være kompatible med alle typer skjermer.
- Page 10 Adjust the spring tension of the arm using the supplied allen key, and enable easy free movement. Adjust the screw in “–” direction when the monitor is springing up or “+” direction when it is drooping down. Juster fjærspenningen på armen med den medfølgende sekskantnøkkelen, og sjekk at det er enkel og fri bevegelse.
- Page 12 DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK www.elkjop.no/support www.elgiganten.se/support www.lefdal.com/support www.gigantti.fi/support www.elgiganten.dk/support IB-ADXDMGT17-170801V1...
