Summary of Contents for Telic LT910-EUBIS

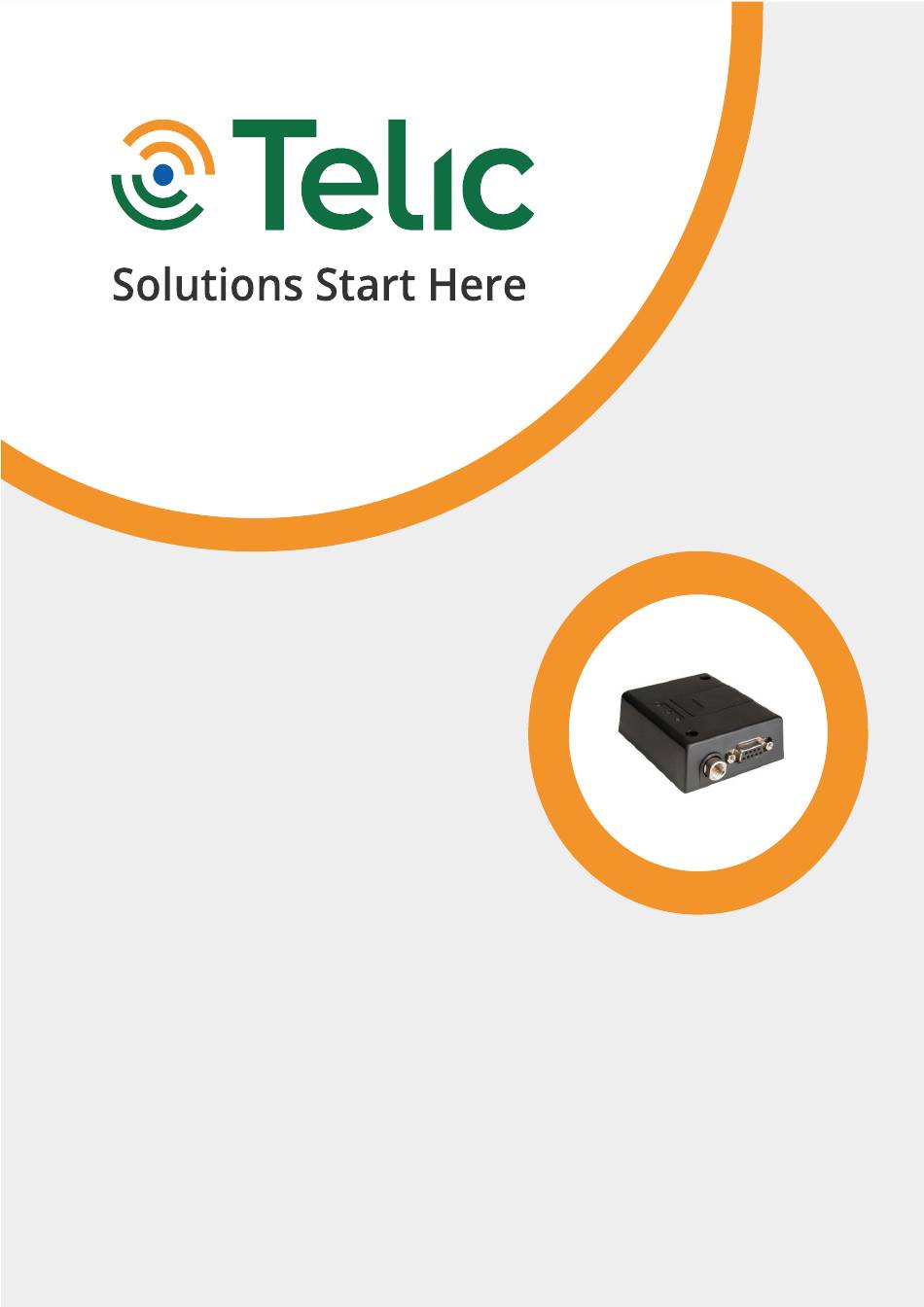

- Page 1 LT910-EUBIS USER MANUAL 23.08.2024 Release 1.0...
-
Page 2: Table Of Contents
Overview............................5 Identification ..........................7 Physical dimensions and weight ....................7 Product features and technical data ..................8 Telic certified accessories ......................9 Safety instructions ........................11 SIM card precautions ......................... 13 Antenna precautions ......................... 13 Storage conditions ........................13 Power connector ........................ -
Page 3: General Information
We cannot be held responsible for material loss or personal injury that is due to noncompliance with the safety instructions. The warranty will be void in such circumstances. Telic reserves the right to change the included information without prior notice and does not take responsibility for errors in the document and/or for any missing information. -
Page 4: Important Notice
Telic AG accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the Telic AG product, or for failure of the Telic AG product to transmit or receive such data. -
Page 5: Related Documentation
1.6 Related documentation Please consult the download zone of the Telic AG website for additional documentation related to the build-in module LE910R1-EU, such as AT command reference. Note that these documents can be accessed online only after you have registered on our website and agreed with our terms of use. -
Page 6: Revision History
Table 2: Documentation change log 2 Product description 2.1 Overview The pictures below show the mechanical design of the LT910-EUbis terminal along with the positions of the different connectors and mounting holes. The LT910-EUbis terminal case is made of durable PC/ABS plastic... - Page 7 Special DIN Rail Mounting Brackets (Art-nr. 12304) is available as an accessory item which allows installation of the modem in industrial environments using DIN Rails. For more details of our accessories please check chapter 2.5 Telic Certified Accessories. Pg 6...
-
Page 8: Identification
LT910-EUbis user manual - Telic AG 2.2 Identification On the bottom of the device, you will find the type label. Description Label Serial number Serial number barcode International Mobile IMEI Equipment Identity Firmware version CE mark Disposal in accordance with European directive 2002/96/CE 2.3 Physical dimensions and weight... -
Page 9: Product Features And Technical Data
LT910-EUbis user manual - Telic AG 2.4 Product features and technical data NOTICE Telic AG may, at any time and without notice, make changes or improvements to the products and services offered and / or cease producing or commercializing them. NOTICE – Optional Features Features identified as “optional”... -
Page 10: Telic Certified Accessories
LT910-EUbis user manual - Telic AG 2.5 Telic certified accessories NOTICE The antennas listed in this section are suitable for use with LTE networks. Please check, though, which frequency bands your mobile network service provider supports. Pg 9... - Page 11 LT910-EUbis user manual - Telic AG Table 4: Accessories list Please contact your distributor or Telic AG for availability or check Telic’s webpage http://www.telic.de. Pg 10...
-
Page 12: Safety Instructions
NOTICE If these instructions are ignored, Telic AG will not assume responsibility for any damages that are incurred. Telic AG may refuse warranty claims where evidence of product misuse is found. Please read the information in this section and the information in Section 6 Installation of the modem before starting your integration work! 3.1 Safety instructions... - Page 13 General precautions The LT910-EUbis terminal is designed for indoor use only. To use it in an outdoor application it must be integrated into a weatherproof enclosure. Do not exceed the environmental and electrical limits as specified in section “2.4 Product Features and Technical Data”.
-
Page 14: Sim Card Precautions
LT910-EUbis user manual - Telic AG 3.2 SIM card precautions Before handling the SIM card in your application, ensure that you are not charged with static electricity. Use proper precautions to avoid electrostatic discharges. When the SIM card hatch is opened, the SIM card connector lies exposed under the SIM card holder. -
Page 15: Power Connector
LT910-EUbis user manual - Telic AG 4 Electrical description The modem uses the following connectors: RJ11 6-way (power + 1 optional analogue input + 1 optional output) • Mini USB (data) - Also the power connector for the USB powered variant (optional) •... - Page 16 LT910-EUbis user manual - Telic AG Signal Direction Limits Description Input 7 – 32V Positive power input, DC ADC_IN Input 0 – 32V (Optional) Analogue Input Positive edge triggered signal to switch off modem. Use only after modem AT interface is available and PWRMON is HIGH.
-
Page 17: Antenna Requirements
LT910-EUbis user manual - Telic AG 4.2 Antenna requirements 4.3 SIM card reader The terminal is fitted with a SIM card reader designed for 1.8V and for 3V SIM cards. It is the hinge type which is lockable in the horizontal position and is accessed through a removable panel. -
Page 18: Rs232 Serial Port
(DCE) and the external application or computer as the data terminating equipment (DTE). The maximum data rate to communicate with the LT910-EUbis terminal is 921600 bits per second. The default data rate is 115200 bps. Signal... -
Page 19: Mini Usb Connector
LT910-EUbis user manual - Telic AG 4.5 Mini USB connector Figure 5 gives an overview about the pin assignment of the mini-USB connector. The modem supports a standard USB 2.0 full speed slave interface to receive AT-commands as well as data transmissions. - Page 20 LT910-EUbis user manual - Telic AG To switch on the modem, you have two options: Method 1: Continuous Power to VCC and TO_IN Provide continuous power to VCC. Provide continuous power TO_IN (pin 4). Method 2: Power Pulse to TO_IN •...
-
Page 21: Configuration Of The Bit Rate On The Serial Interface
LT910-EUbis user manual - Telic AG 5.2 Configuration of the bit rate on the serial interface The module used in the terminal does not support auto-bauding. The default data rate is 115200 baud with 8 data bits, 1 stop bit, and no parity. - Page 22 LT910-EUbis user manual - Telic AG There are three ways to switch off (power down) the modem as described below: Shut down AT-command, most preferred way: AT#SHDN The maximum time to shut down the device with this command is 25 seconds.
-
Page 23: Using Low Power Mode Of The Modem
LT910-EUbis user manual - Telic AG Warning It is highly recommended to regularly verify that the fast shutdown feature is correctly configured to avoid any potential filesystem data corruption in the event of an unexpected power loss. Use the command AT#FASTSHDN? to check the current configuration. -
Page 24: Status Leds (One Yellow, One Red)
LT910-EUbis user manual - Telic AG 5.7 Status LEDs (one yellow, one red) The yellow status LED referred as DEBUG_LED1 is controlled by GPIO 03 and the red is called DEBUG_LED2 and controlled via GPIO 02. They can be controlled via AT commands. The default status of these two LEDs is off. -
Page 25: Additional Configuration
LT910-EUbis user manual - Telic AG 5.9 Additional configuration 5.8.1 CONFIGURING MOBILE NETWORK TECHNOLOGIES The terminal is configured by default with LTE / 2G mode activated. The AT command AT+WS46 can be used to modify the usage of mobile network technologies:... -
Page 26: Where To Install The Modem
LT910-EUbis user manual - Telic AG 6 Installation of the modem This chapter gives you advice and helpful hints on how to integrate the LT910-EUbis terminal into your application from a hardware perspective. Please read the information given in Section 2 “Product Description”... -
Page 27: How To Install The Modem
Where access is restricted, it may be easier to connect all the cables to the modem prior • to securing it in the application. Securely attach the LT910-EUbis terminal to the host application using two 3 mm • diameter pan head screws. -
Page 28: Antenna
LT910-EUbis user manual - Telic AG 6.3 Antenna 6.3.1 GENERAL The antenna is the most important component in your system to maintain the radio link between the network and the modem. Since the antenna transmits and receives electromagnetic energy, its efficient function will depend on: the type of antenna (for example, omni-directional) •... - Page 29 LT910-EUbis user manual - Telic AG 6.3.5 POSSIBLE COMMUNICATIONS DISTURBANCES Possible communication disturbances include the following: Noise can be caused by electronic devices and radio transmitters. • Pathloss occurs as the strength of the received signal steadily decreases in proportion to •...
