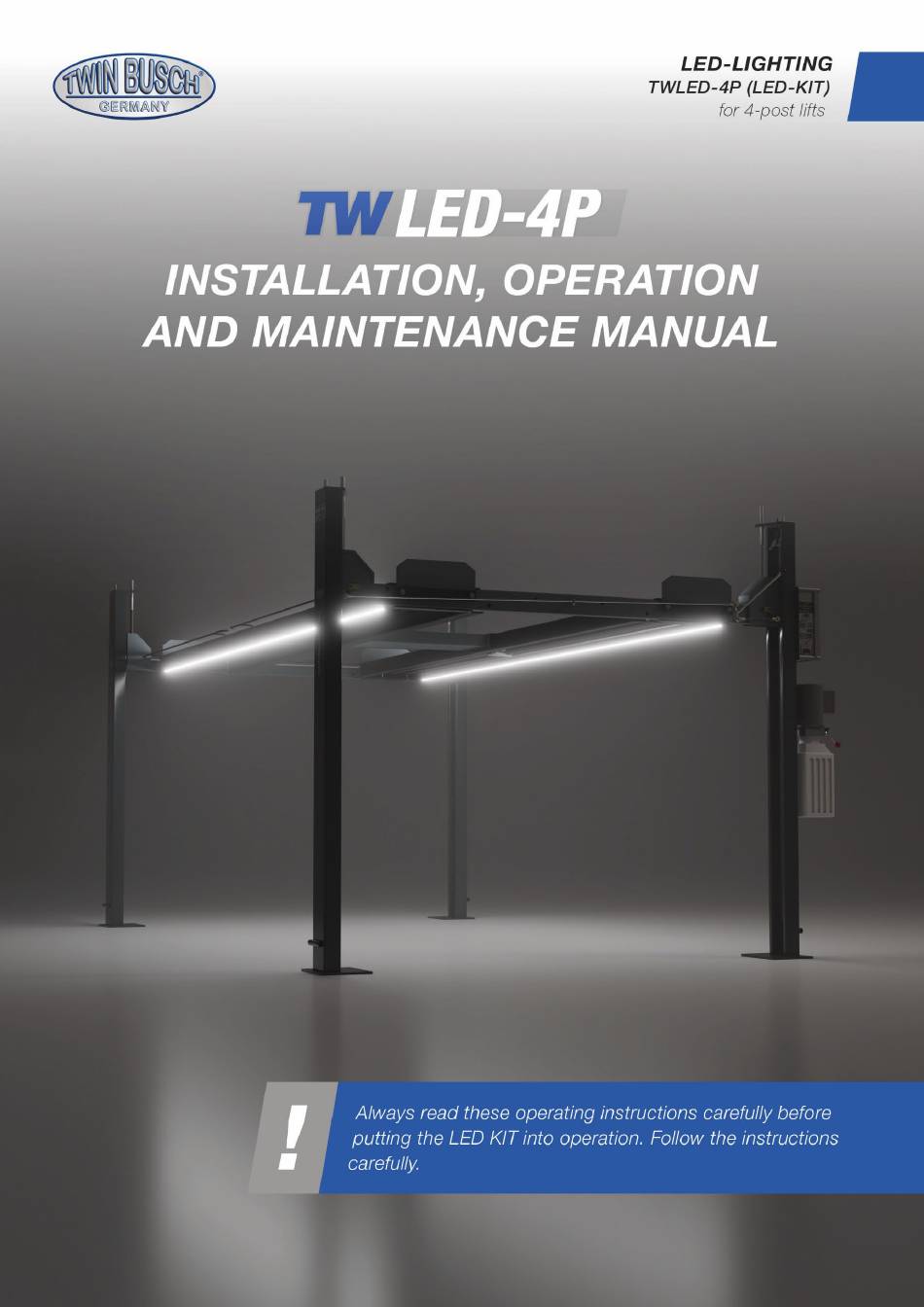

- Page 1 Manual of LED KIT TWLED-4P TWLED-4P_LED_KIT_Manual_uk_00_20240830.pdf Version -00, 30.08.2024...
-
Page 2: Table Of Contents
Manual of LED KIT TWLED-4P Table of contents 1. General information ..........................1 2. Identification of the instructions for use ....................1 3. Technical data ............................1 4. Photometric data ........................... 2 5. Scope of delivery ............................ 2 6. Installation ............................. 4 7. -
Page 3: General Information
1. General information The Twin Busch LED lighting TWLED-4P has been specially developed for our TW436P-G 4-post car park lift. A set consists of 4 flexible and magnetic LED strips, a transformer, power and connection cables, a remote control and the necessary mounting and installation material. -
Page 4: Photometric Data
Manual of LED KIT TWLED-4P 4. Photometric data LED type RGBW Luminous flux red 100 lumens per m green 280 lumens per m blue 60 lumens per m white 790 lumens per m R+G+B+W 1230 lumens per metre Wavelength red 620 nm... - Page 5 Manual of LED KIT TWLED-4P Page | 3 Misprints, errors and changes excepted.
-
Page 6: Installation
Manual of LED KIT TWLED-4P 6. Installation Inspect the outer packaging for external damage or signs of improper handling during transport. Open the packaging carefully and check the contents for completeness. Ensure that all components listed in the scope of delivery are present (see Scope of delivery). - Page 7 - Magnetically attach the controller and transformer to the column and connect them with the connecting cables. 5. Installation - Connect the TWLED-4P to a standard 230 V socket or directly in the switch box of the lift. Refer to the wiring diagram of the lift for the exact information. Page | 5...
-
Page 8: Controlling The Remote Control
Manual of LED KIT TWLED-4P 7. Controlling the remote control 7.1 Connection of remote control and controller 1. Connection of the LED strip lights - Connect the LED strip lights, the controller and the power supply unit. This should be done with the power switched off to ensure safe installation. -
Page 9: Operating The Light Colour
Manual of LED KIT TWLED-4P 7.2 Operating the light colour The upper buttons are used to control the RGB lighting, in which white light (W) is generated by mixing red (R), green (G) and blue (B). The buttons on the white background in the centre area are intended for controlling the 6000 K white light. - Page 10 Notes...
- Page 11 Notes...
