Modern-Aire Ventilating

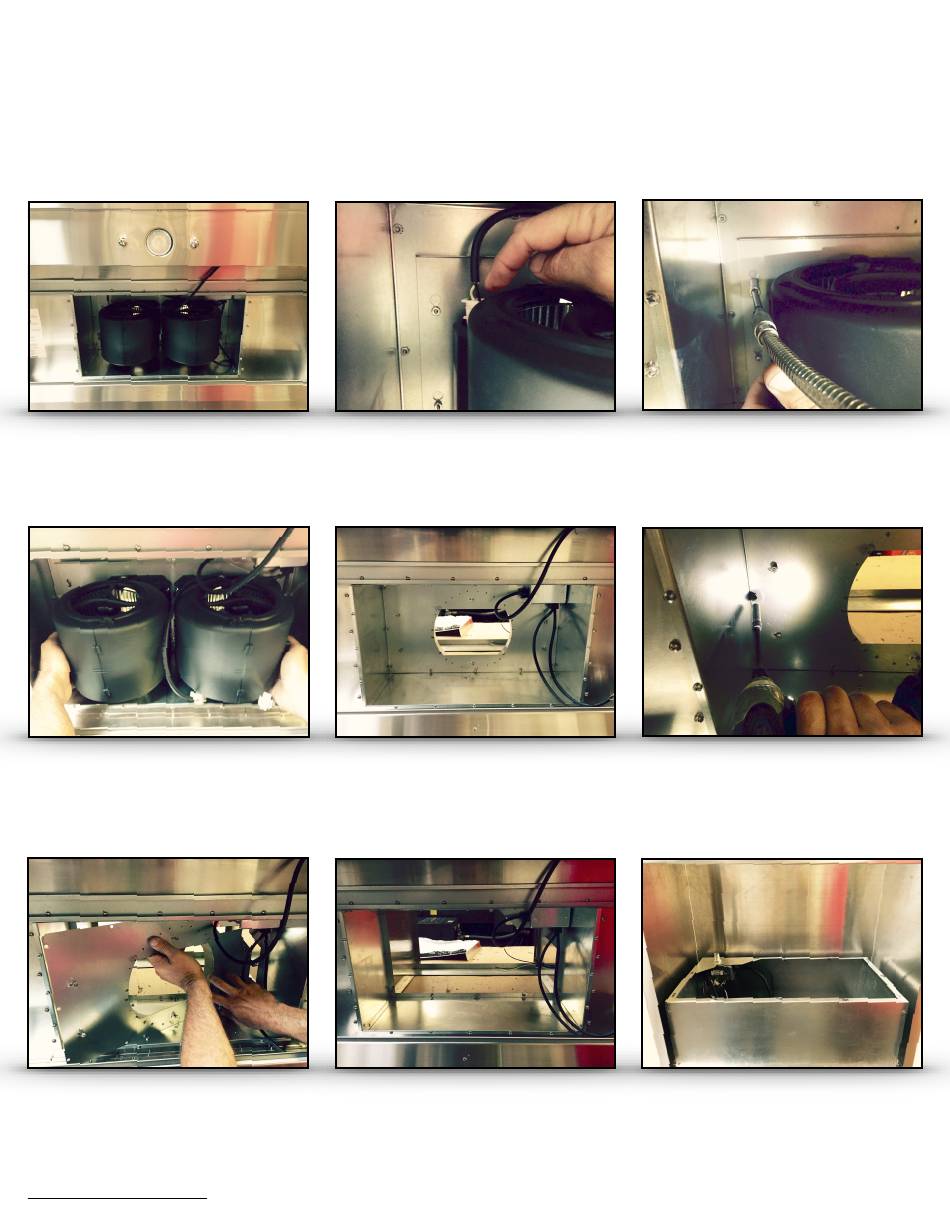

Installation Guide for PS16 & PMW16
1. Lay Hood On Back.
4. Push motors forward and pull
down.
7. Remove Collar Plate.
www.modernaire.com
2. Pinch both sides to remove
wire connector Qty. 1 600cfm -
Qty 2 1200cfm
5. Sheet metal collar plate
exposed.
8. Hood now Hollow
Page
1
of 3
16 Series Installation Guide
3. Loosen nuts (do not remove)
Qty. 4 600cfm - Qty. 6 1200cfm
6. Remove nuts Qty. 7 600cfm -
Qty. 12 1200cfm
9. Hood now Hollow (back view)
Version 1.0
Advertisement
Related Manuals for Modern-Aire PS16
Summary of Contents for Modern-Aire PS16
- Page 1 Modern-Aire Ventilating 16 Series Installation Guide Installation Guide for PS16 & PMW16 1. Lay Hood On Back. 2. Pinch both sides to remove 3. Loosen nuts (do not remove) wire connector Qty. 1 600cfm - Qty. 4 600cfm - Qty. 6 1200cfm Qty 2 1200cfm 4.
- Page 2 Modern-Aire Ventilating 16 Series Installation Guide 11. Drill holes in canopy. (top 12. Drill holes in back of duct 10. Mark stud location on and lower portion) cover at the top. canopy. 13. Duct and electrical hanging 15. Lift hood in to place then 14.
- Page 3 Modern-Aire Ventilating 16 Series Installation Guide 21. Reinstall collar plate. 19. Slide duct up into place 20. Fish wires in to junction box. through bottom of canopy. 22. Black - Power in to hood 23. Cover junction box. 24. Lift motor(s) in to place.
