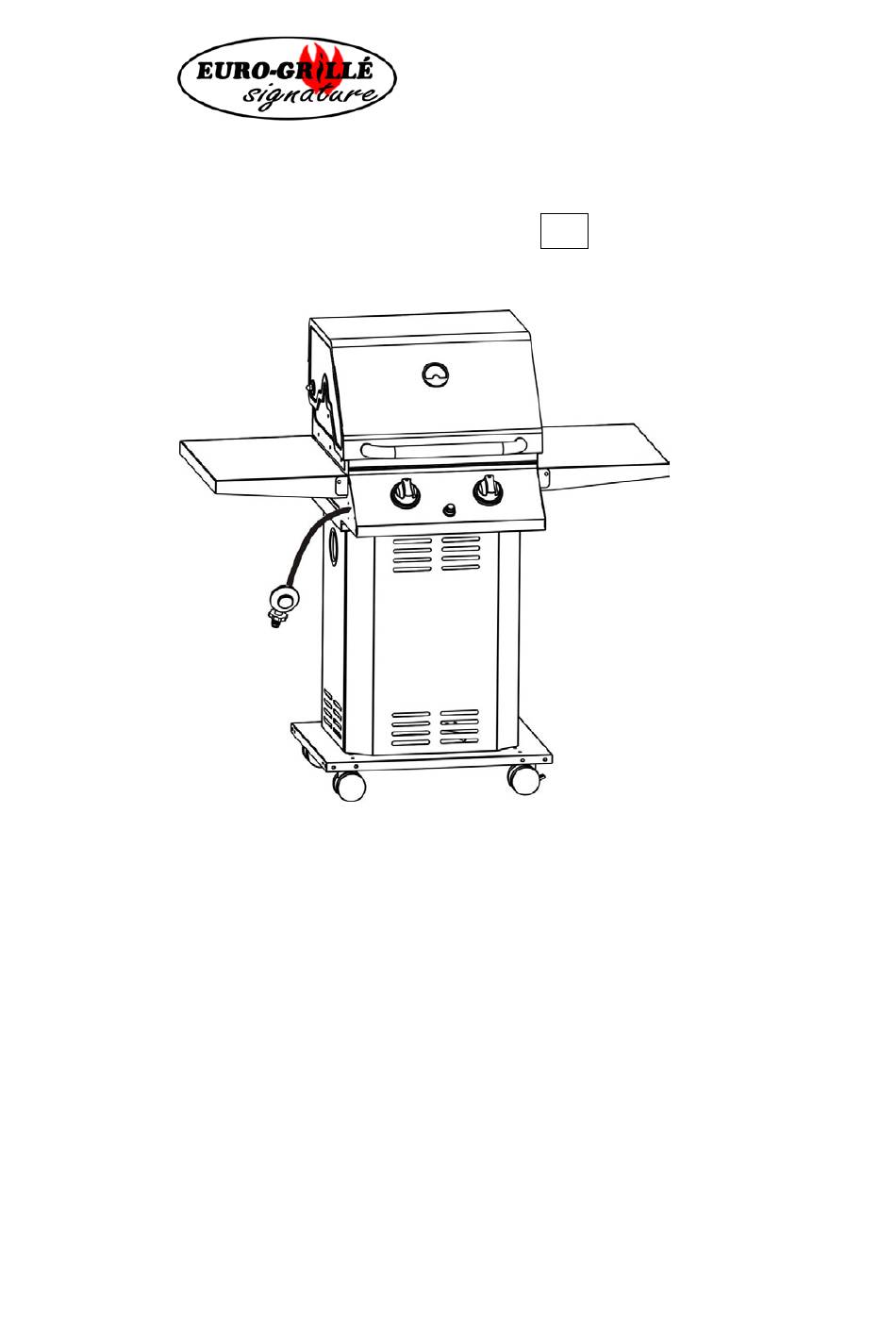

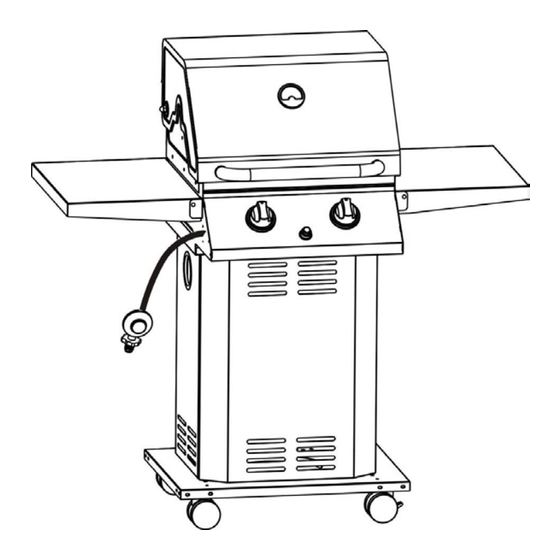

OWNER'S MANUAL FOR GAS BARBECUES
Model: BBQ-CB2
* FOR PROPANE ONLY
* IF A REPLACEMENT IS NECESSARY, PLEASE CONTACT EITHER OUR CUSTOMER SERVICE
DEPARTMENT OR YOUR LOCAL DEALER.
* THE USE OF UNAUTHORISED PARTS CAN CREATE UNSAFE CONDITIONS AND
ENVIRONMENT
* FOR OUTDOOR USE ONLY
* READ THE MANUAL CAREFULLY BEFORE ASSEMBLY AND USE
* ACCESSIBLE PARTS MAY BE VERY HOT. PLEASE KEEP YOUNG CHILDREN AND PETS AWAY.
* PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
* PLEASE REMOVE ANY TRANSIT PROTECTION BEFORE ASSEMBLY AND USE.
Advertisement
Table of Contents
Related Manuals for Euro-Grille Signature BBQ-CB2
Summary of Contents for Euro-Grille Signature BBQ-CB2
- Page 1 OWNER’S MANUAL FOR GAS BARBECUES Model: BBQ-CB2 * FOR PROPANE ONLY * IF A REPLACEMENT IS NECESSARY, PLEASE CONTACT EITHER OUR CUSTOMER SERVICE DEPARTMENT OR YOUR LOCAL DEALER. * THE USE OF UNAUTHORISED PARTS CAN CREATE UNSAFE CONDITIONS AND ENVIRONMENT * FOR OUTDOOR USE ONLY * READ THE MANUAL CAREFULLY BEFORE ASSEMBLY AND USE * ACCESSIBLE PARTS MAY BE VERY HOT.
- Page 2 Technical Information APPLIANCE CODE CB2-001-D GAS TYPE PROPANE TEST POINT PRESSURE 2.75KPA TOTAL NOMINAL 30 .0 MJ/H CONSUMPTION NOMINAL 15 MJ/h - MAIN BURNERS (x2) CONSUMPTION Ø1.12 mm MAIN BURNERS INJECTOR SIZE AGA APPROVAL NUMBER AGA 7129 G SERIAL NUMBER &...
-
Page 3: Use Outdoors Only
USE OUTDOORS ONLY This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any outdoor enclosure in which the appliance is used shall comply with one of the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover. -
Page 6: Assembly Steps
Assembly Steps * Tools Required Attach locking casters to cart, Tighten casters using the spanner. - Page 9 Instruction for replacing burners (if burner needed to be replaced):...
- Page 10 Note: Burners have already been assembled! Please take off the paper under burner before assembling flame tammer (No.3)! Place cooking grates (No. 2) into main body. Grates wires running front to back should be toward the top side of square tubes at each...
- Page 11 To assemble warming rack (No. 1), insert leg wire into holes in sides of grill top.
- Page 12 DO NOT Lean over appliance when lighting Use spanner to tighten all gas fittings Leaving cooking food unattended Check all gas hose and line connection for Store combustible material, gasoline or damage,cuts or cracks each time for using flammable liquids or vapors within vicinity of the appliance.
- Page 13 Gas Cylinder Information Gas Cylinder Safety Information • This appliance is designed to be used with a gas cylinder not exceeding (Australia 9KG) • The gas cylinder supply valve must be turned off when the appliance is not in use. •...
-
Page 14: Lighting Your Barbecue
For Safe Use Of Your Grill And To Avoid Serious Injury: ·DO NOT let children operate or play near grill. ·KEEP grill area clear and free from material that burn. ·DO NOT block holes in bottom or back of grill. ·Check burner flames regularly. - Page 15 burner. If not, repeat this process. If the burner still does not light, turn the control knob to 'OFF' wait 5 minutes and repeat step 3. When the left hand burner is lit any of the remaining burners can be lit by repeating operations 3 and 4.
-
Page 16: Abnormal Operation
4. Push and turn the Back Burner control knob to the high position. Continue to push in control knob while pressing electronic igniter for more than 5 seconds. 5. Once burner is lit, continue to push and hold control knob for 30 seconds. 6. -
Page 17: Cleaning And Care
CLEANING AND CARE This appliance should be checked and serviced by an authorised service person every year to ensure the appliance remains in a safe operation condition. All cleaning and maintenance should be carried out when the barbecue is cool and with the fuel supply turned OFF at the gas cylinder. - Page 18 Follow these instructions to clean and / or replace parts of burner assembly or if you have trouble igniting grill. 1. Turn gas off at control knobs and LP Tank. 2. Remove cooking grates, grease tray and grease cup. 3. Remove cotter pins from beneath each burner “foot” using a screwdriver or needle nose pliers. 4.
- Page 19 Outside surface Use mild detergent or baking soda and hot water solution. Non-abrasive scouring powder can be used on stubborn stains, then rinse with water. If the inside surface of the barbecue lid has the appearance of pealing paint, baked on grease build-up has turned to carbon and is flaking off.
-
Page 20: Troubleshooting
Troubleshooting Problem Possible Cause Prevention/Solution Burner(s) will not • Wire and/or electrode covered • Clean wire and/or electrode with rubbing light using ignitor. with cooking residue. alcohol and clean swab. •Electrode cracked or broken • Replace electrode(s). "sparks at crack”. •... -
Page 21: Troubleshooting-Electronic Ignition
Troubleshooting-Electronic Ignition Problem Possible Cause Check Procedure Prevention/Solution No sparks appear ·Battery installed ·Check battery orientation ·Install battery(make sure at any electrodes properly. that “+” and “-” connectors when ignition are oriented correctly, with button is pushed; “+” end up and “-” end down. no noise can be Dead battery Has battery been used... - Page 22 Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death consult thepoints below and additionall y , the information available at www.datastreamserver.com/safety - Consult all documentation, packaging and - The product has been supplied by a general merchandise...
