‐ FOR OUTDOOR USE ONLY.
‐ READ THE INSTUCTIONS CAREFULLY AND
BE SURE YOUR BARBECUE IS IN PROPERLY
INSTALLED AND ASSEMBLED.
FAILURE TO FOLLOW THESE INSTRUCTIONS
MAY RESULT IN SERIOUS INJURY OR DAMAGE.
‐ PLEASE RETAIN THE MANUAL FOR FUTURE
REFERENCE.
‐CONVERSION OF NATURAL GAS ONLY TO BE
DONE BY AUTHORIZED PERSONS.
‐REMOVAL OF ANY TRANSIT PROTECTION BEFORE
USING
NOTE TO INSTALLER:
TEST OPERATION OF THE APPLICANCE AND INSTRUCT
THE USER BEFORE LEAVING.
2/5 Stanton Road, Seven Hills NSW 2147 AUSTRALIA
Mills International Trading Pty, Ltd.
User Manual and
Install Instructions

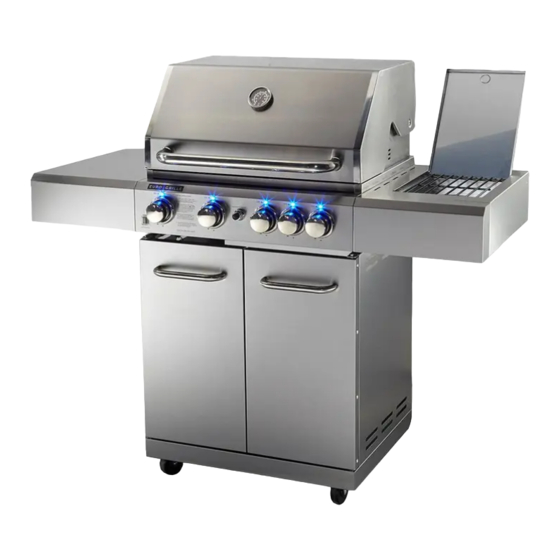

COKBBQEUGABR5
Advertisement
Table of Contents
Related Manuals for Euro-Grille COKBBQEUGABR5
Summary of Contents for Euro-Grille COKBBQEUGABR5
- Page 1 COKBBQEUGABR5 NOTE TO INSTALLER: ...
-
Page 2: Use Outdoors Only
USE OUTDOORS ONLY This appliance shall only be used in an above ground open‐air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any outdoor enclosure in which the appliance is used shall comply with one of the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover. See l Figure 1. Within a partial enclosure that includes an overhead cover and no more than two walls. See Figure 2 & 3. l Within a partial enclosure that includes an overhead cover and more than two walls, the following shall apply: l ‐ At least 25% of the total wall area is completely open; and ‐ At least 30% of the remaining wall area is open and unrestricted. See Figure 4 & 5. In the case of balconies, at least 20% of the total of the side, back and front wall areas shall be and remain open and l unrestricted. The following diagrams provide a diagrammatic representation of outdoor areas. Rectangular areas have been used in these figures ‐ the same principles apply to any other shaped area ... - Page 3 GAS CYLINDER INFORMATIO ...
-
Page 4: Lighting Your Barbecue
LIGHTING YOUR BARBECUE This barbecue is designed for use outdoors, away from any flammable materials. It is important that there are no overhead obstructions above the appliance. It is important that the ventilation openings of the cylinder compartment are not obstructed. The barbecue must be used on a level, stable, non‐flammable surface. The appliance should be protected from direct draughts and shall be positioned or protected against direct penetration by any trickling water (e.g. rain). Parts sealed by the manufacturer or his agent must not be altered by the user. No modifications should be made to any part of this barbecue and repairs and maintenance should only be carried out by a registered service engineer DO NOT let children operate or play near grill. DO NOT use charcoal or ceramic briquets in a gas grill DO NOT light or use the side burner with the lid in the closed position. DO NOT attempt to light burner with lid closed. A buildup of non‐ignited gas inside a closed grill is hazardous The side burner is designed for pot/pan with diameter 60‐260mm. Side burner lid can not be used as work table, do not put anything on the side burner lid while it is not working ‐Lighting the Appliance ... -
Page 5: Cleaning And Care
While igniting main burner and infrared rear burner, please make sure the lid for main burner is in open situation While igniting side burner, please make sure the lid for side burner is in open situation While cooking with the hood closed and with all the burners on, please make sure all these burners in LOW flame position. CLEANING AND CARE All cleaning and maintenance should be carried out when the barbecue is cool and with the fuel supply turned OFF at the gas cylinder after each time use. DO NOT mistake brown or black accumulation of grease and smoke for paint. Interiors of gas grills are not painted at the factory (and should NEVER be painted). Apply a strong solution of detergent and water or use a grill cleaner with scrub brush on insides of grill lid and bottom. Rinse and allow to completely air dry. DO NOT apply a caustic grill / oven cleaner to painted surfaces. DO NOT use abrasive or flammable cleaners, as it will damage the parts of the product and may start a fire. Stainless steel surfaces: Stainless steel would get rust if not maintain well. To maintain your grill’s high quality appearance, wash with mild detergent and warm soapy water and wipe dry with a soft nonabrasive cloth after each use. Cooking grid: ... -
Page 6: Natural Hazard Spiders
We suggest following ways to clean the burner tubes. (A) Bend a stiff wire( a light weight coat hanger works well) into a small hook. Run the hook through each burner tube and burner several times. (B) Use a narrow bottle brush with a flexible handle (DO NOT use a brass wire brush), run the brush through each burner tube and burner several times. (C) Wear eye protection: use an air hose to force air into the burner tube and out the air ports. Check each port to make sure air comes out each hole. NATURAL HAZARD SPIDERS FACT: sometimes spiders and other insects climb into the grill tubes attached to the burners. The spiders spin webs, build nests and lay eggs. The webs or nests can be very small, but they are very strong and can block the flow of gas. Clean burners prior to use after storing, at the beginning of grilling season or after a period of one month not being used. Spider guards are on the air intakes in an effort to reduce this problem, but it will not eliminate it! An obstruction can result in a “flashback” (a fire in the burner tubes). The grill may still light, but the obstruction does not allow full gas flow to the burners. Abnormal Operation: Any of the following are considered to be abnormal operation and may require service ... -
Page 7: Technical Information
Technical Information Model No. COKBBQEUGABR5 Gas Type: Universal LP Gas & Natural Gas Test Point Pressure: Universal LP Gas‐ 2.75KPA Natural Gas‐1.0KPA Total Nominal Gas Consumption: Universal LP Gas‐63MJ/h Natural Gas‐57MJ/h Nominal Gas Consumption & Injector size: Universal LP Gas ‐ Main Burners: 13MJ/h x 4 Injector size 0.98mm ... - Page 8 ASSEMBLY INSTRUCTIONS Tools required: 1. Philips Screwdriver 2. Gloves ( if necessary) EXPANDEW VIEW ...
- Page 9 . Note: Screws being preassembled. Please unscrew then assembly Castors with locking REAR ...
- Page 10 M6*10 6PCS ...
- Page 11 2xAA battery for LED light M5*10 1 PC...
- Page 12 NOTE: It requires 2 persons to lift with gloves. After assembling, the screws could stop the grease tray sliding out. M6*25 4 PCS...
- Page 13 M5*10 5 PCS NOTE: Be careful for the sharp edge. Please use the long Philip Screwdrivers for easy operation. M6*10 1PC M6*10 4PCS M5*10 6 PCS...
- Page 14 NOTE: make sure the side burner connector well insert into the side burner tube. NOTE: Attached the ignition wire to the ignition lead ...
- Page 15 Note: Please insert 1 AA battery in the igniter to operate the grill (battery not provided).
- Page 16 NOTE: A hook is fixed to tighten the gas hose to avoid the chance to tough the high temperature parts like grease tray.
- Page 17 15. Connect the led cable to battery box ...
-
Page 18: Natural Gas Conversion
Natural Gas Conversion CONVERSIONS ONLY TO BE DONE BY AUTHORIZED PERSON Tools required 1. Socket head set screw driver (Included with the product) 2. Wrench Gas Piping 1. A minimum pipe with diameter 15mm is required for inlet piping. A lever operated shut‐off valve should be installed with 1 meter of the appliance for serving the appliance. ... - Page 19 2. Unscrew the main burner securing screws and remove the burner sitting it just beside. 3. With the burner removed, you will see the brass gas jet which is screwed into the end of the valve. Using the socket driver supplied, unscrew the end LPG jet while retaining the inner (NG) jet. ...
- Page 20 * Instructions for converting the side burner 1. Remove the side burner ignition wire and take away the side burner ...
- Page 21 Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety Consult all documentation, packaging and product The product has been supplied by a general ...
