ALPHA-Q20
Dehumidifier
INSTRUCTION MANUAL [EN]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALPHA-Q20 and is the answer not in the manual?

Questions and answers

Related Manuals for Greenmigo ALPHA-Q20

Summary of Contents for Greenmigo ALPHA-Q20

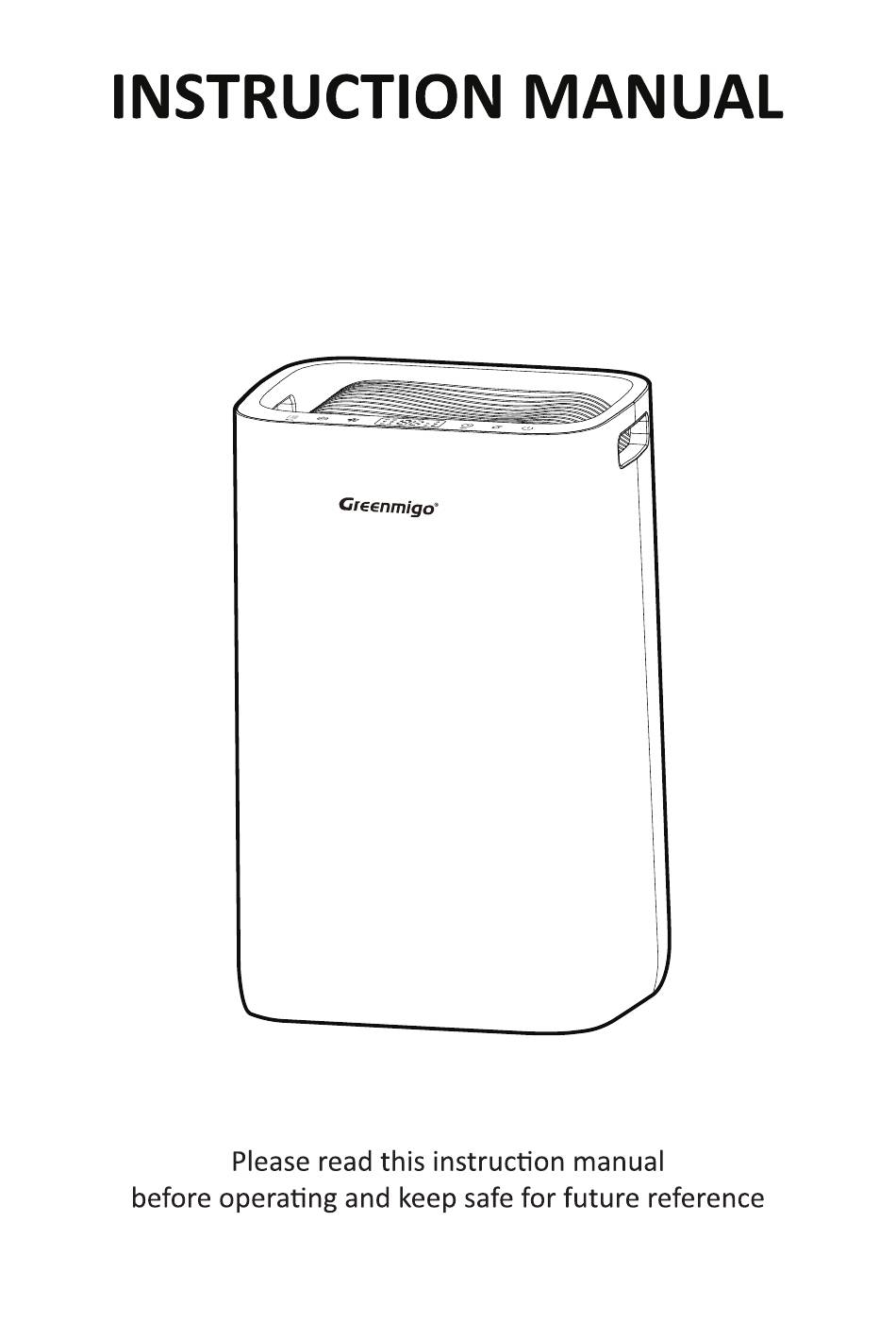

  • Page 1 ALPHA-Q20 Dehumidifier INSTRUCTION MANUAL [EN]...
  • Page 2 9-13...

  • Page 3: Safety Instruction

    Dehumidifier Please read the instruction manual before using the product and then save it for future reference. We reserve the right for any error in text or images and any necessary changes made to technical data. · Failure to abide by this warning could result in an explosion, death, injury and property damage.
  • Page 4 SAFETY INSTRUCTION Unplug the product when it is not in use. · Before the machine is moved, make sure it is switched off, unplugged and that the water tank is · empty. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or ·...
  • Page 5 If R290(propane) is detected in the room, or a leak is suspected, do not allow unauthorized persons to search for the source of the leak. In such cases, evacuate all people from the room, open the windows, leave the room and notify your local fire department to advise them that a propane leak has occurred.
  • Page 6 including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks.
  • Page 7 Air Outlet Handle Control Panel Air Filter Front Casing Con nuous Drainage Outlet Water Tank Power Cord 1. Power Bu on 4. Fan Speed Bu on 2. Manual Bu on 5. Auto Bu on 3. Timer Bu on/Childlock Bu on 6.
  • Page 8 Model ALPHA-Q20 Power Supply 220-240V~ 50Hz 30°C RH80% 20L/day Dehumidifying Capacity 27°C RH60% 12L/day Rated Power 245W Rated Current 1.73A High 190m³/h Air Flow 160m³/h High 44dB(A) Noise Level 40dB(A) Refrigerant R290/0.06kg Water Tank Capacity 4.5L Operating Temperature 5~35°C Net Weight 14.9 kg...

  • Page 9: Switching On/Off The Unit

    Note: Ensure the supply power is in correspondence with the value on the nameplate. · Ensure the water tank is correctly fitted before the dehumidifier can be switched on. · If the dehumidifier is turned off and then turned back on again immediately, it will take ·...
  • Page 10 Fan Speed Option Press the Fan Speed button to select your preferred fan speed setting of low and high to meet the different usage requirements. Auto Dehumidifying Function Press the Auto button to enter into the Auto Dehumidifying Mode, the unit runs automatically accordance to the ambient humidity detected below.
  • Page 11 ·Sleeping Mode Press Mode button twice to select the Sleeping mode, its corresponding Sleeping indicator will be displayed on screen. The unit works in previous mode but in low fan speed and 10 seconds later, all indicators will be off. Note: At Sleeping Mode, press any button to wake up the unit first then to operate as usual.

  • Page 12: Child Lock Function

    Childlock Function To prevent the mishandling by young children, unit is equipped with a Childlock function. Press Timer button for 2 seconds to activate or deactivate the childlock function. Note: After activating the childlock function, the childlock indicator will be displayed on screen. Automatic Shut Off hen the water tank becomes full during normal use, the unit shuts off automatically with tank full indicator on the screen and buzzer alarm goes off for 5 times.

  • Page 13: Memory Feature

    Automatic Defrost Feature The unit is equipped with an automatic defrost feature. When room temperature is too low, compressor shuts off and unit runs on high fan speed setting until the frost has disappeared, no other setting can be made for this feature. Its corresponding indicator will be displayed on screen.

  • Page 14: Cleaning The Dehumidifier

    Cleaning the dehumidifier To ensure the effectiveness of the dehumidifier, it is recommended to clean the unit at least every two weeks. 1. Turn the dehumidifier off and pull out the plug before cleaning. 2. Use a soft cloth to gently wipe the outer case to remove dust. 3.

  • Page 15: Responsible Disposal

    Make sure that the mains lead is properly plugged in and that there is power in the wall socket. The dehumidifier will not switch on The water tank is full or incorrectly fitted. The set humidity level has been reached. Power plug or cord damaged.
