INSTRUCTION MANUAL

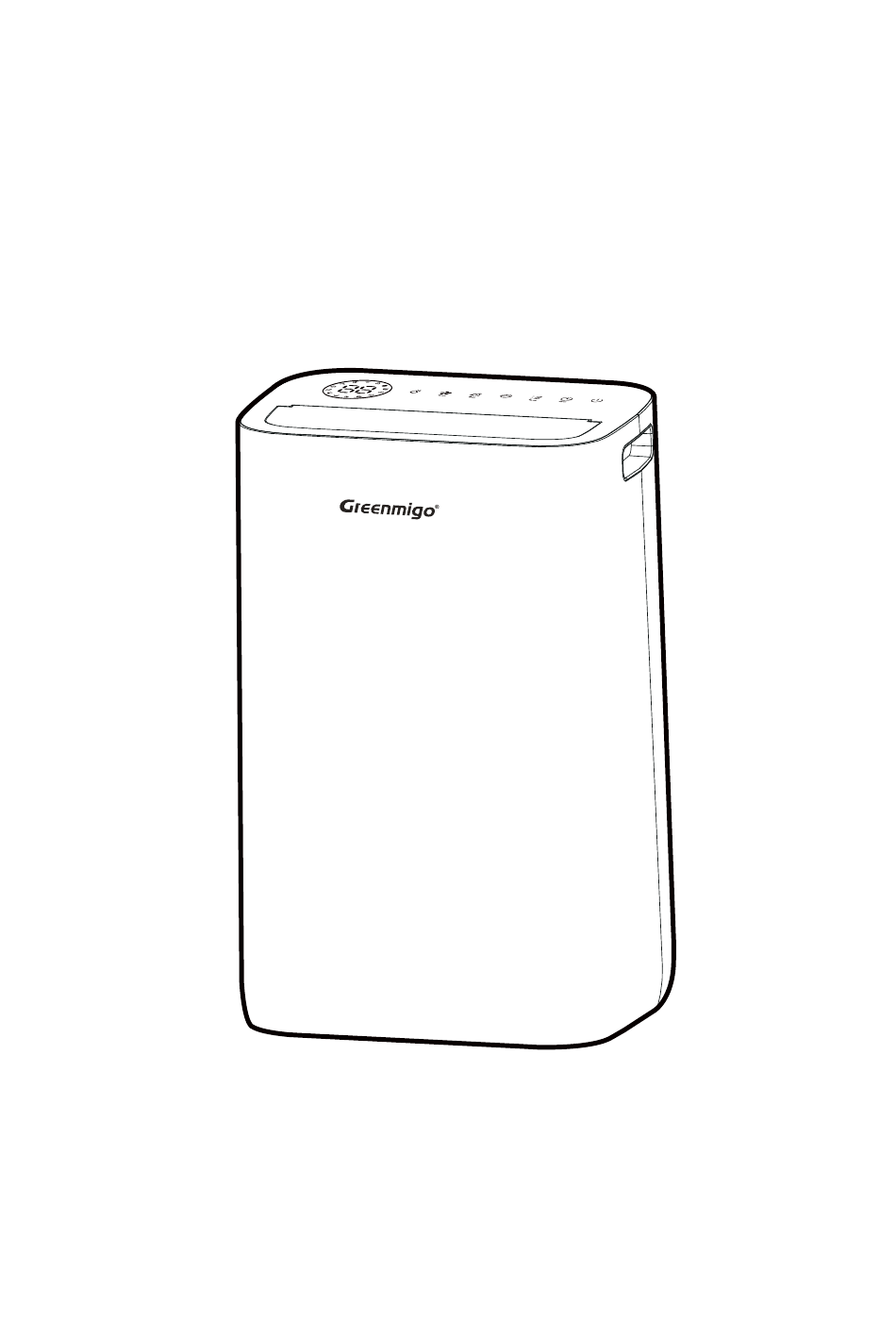

ALPHA-Q25 Pro WiFi

Dehumidiﬁer

Please read this instruction manual

before operating and keep safe for future reference

INSTRUCTION MANUAL [EN]

Table of Contents

Need help?

Do you have a question about the ALPHA-Q25 Pro WiFi and is the answer not in the manual?

Questions and answers

Summary of Contents for Greenmigo ALPHA-Q25 Pro WiFi

Page 1 INSTRUCTION MANUAL ALPHA-Q25 Pro WiFi Dehumidiﬁer Please read this instruction manual before operating and keep safe for future reference INSTRUCTION MANUAL [EN]...
Page 2: Table Of Contents
CONTENTS Safety Instruction……………………………………………………………………………… 3-5 Safety Regulations For Service And Repaire Work………………...………….. 5-6 Product Description…………………………………………………………………………….. 7 Control Panel Description … ………………………………………………………….…...7 … Technical Specifications … …………………………………………………………………..8 … Placement … . ……………… ………………… …………………………………………………….. 8 Operating Instructions……………………………………………………………………. 9-14 Cleaning And Maintenance…………………………………………………………..…….14 Trouble Shooting…………………………………………………………………………………15 Responsible Disposal…………………………………………………………….…………….15 Smart Connection Operation Guide .…………………………………….………...
Page 3: Safety Instruction
Dehumidifier Please read the instruction manual before using the product and then save it for future reference. We reserve the right for any error in text or images and any necessary changes made to technical data. · Failure to abide by this warning could result in an explosion, death, injury and property damage.
Page 4 SAFETY INSTRUCTION Unplug the product when it is not in use. · Before the machine is moved, make sure it is switched off, unplugged and that the water tank is · empty. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or ·...
Page 5: Safety Regulations For Service And Repaire Work
If R290(propane) is detected in the room, or a leak is suspected, do not allow unauthorized persons to search for the source of the leak. In such cases, evacuate all people from the room, open the windows, leave the room and notify your local fire department to advise them that a propane leak has occurred.
Page 6 including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks.
Page 7: Product Description
PRODUCT DESCRIPTION Control Panel Handle Louver Air Filter Front Casing Con nuous Drainage Outlet Water Tank Power Cord CONTROL PANEL DESCRIPTION 1. Power Bu on 5. Automa c Louver Bu 2. Timer Bu on/Childlock Bu on 6. Fan Speed Bu on/WiFi Bu on 3.
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS Model ALPHA-Q25 Pro WiFi Power Supply 220-240V~ 50Hz 30°C RH80% 25L/day Dehumidifying Capacity 27°C RH60% 15L/day Rated Power 290W Rated Current 1.63A High 190m³/h Air Flow 160m³/h High 44dB(A) Noise Level 42dB(A) Refrigerant R290/0.075kg Water Tank Capacity 4.5L Operating Temperature 5~35°C...
Page 9: Operating Instructions
OPERATING INSTRUCTIONS Note: Ensure the supply power is in correspondence with the value on the nameplate. · Ensure the water tank is correctly fitted before the dehumidifier can be switched on. · If the dehumidifier is turned off and then turned back on again immediately, it will take ·...
Page 10 OPERATING INSTRUCTIONS Fan Speed Option Press the Fan Speed button to select your preferred fan speed setting of low and high to meet the different usage requirements. WiFi Function Press the Fan Speed button for 2 seconds to activate the WiFi function and enter into the distribution network mode, during the network configuration, the WiFi indicato after WiFi connected, the indicator is on.
Page 11 OPERATING INSTRUCTIONS Multifunction Optional ·Laundry Drying Mode Press Mode button once to select the Laundry Drying mode, its corresponding Laundry Drying indicator will be displayed on screen. The unit works in continuous dehumidification with high fan speed for 6 hours then switch off automatically. ·Sleeping Mode Press Mode button twice to select the Sleeping mode, its corresponding Sleeping indicator will be displayed on screen.
Page 12 OPERATING INSTRUCTIONS Automatic Louver Air Louver oscillates from diﬀerent angle for better air circulation and optimum diﬀusion of the dehumidiﬁed air throughout the room. UV Sterilization Function Press and hold the Automatic Louver button for 2 seconds to activate the UV Sterilization function, it's corresponding UV indicator will display on the screen.
Page 13 OPERATING INSTRUCTIONS Automatic Shut Off When the water tank becomes full during normal use, the unit shuts off automatically with tank full indicator on the screen and buzzer alarm goes off for 5 times. Note: If water tank is removed or not placed properly, above phenomenon will appear also. Pull water tank out Pour water away Restore the water tank...
Page 14: Cleaning And Maintenance
1. Remove the rubber plug covering the drain hose connection. 2. Connect a suitable drain hose (14mm inner diameter) through the drainage outlet. Ensure that the hose is secure and tight to prevent leakage. 3. Always make sure the drainage hose is not blocked or obstructed to maintain a smooth flow. Drainage Pipe CLEANING AND MAINTENANCE Cleaning the dehumidifier...
Page 15: Trouble Shooting
TROUBLE SHOOTING Make sure that the mains lead is properly plugged in and that there is power in the wall socket. The dehumidifier will not switch on The water tank is full or incorrectly fitted. The set humidity level has been reached. Power plug or cord damaged.
Page 16: Smart Connection Operation Guide
SMART CONNECTION OPERATION GUIDE APP Binding Device Search an APP pla�orm for “TuyaSmart” or scan the following QR code to download the APP. Step One Make sure the phone is connected to the WIFI at home, and turn on the Bluetooth device, tap the upper right corner of the home page+ to add device.
Page 17 SMART CONNECTION OPERATION GUIDE Step Two Follow the guide to select the device to be conﬁgured, then enter the WiFi password. Step Three Complete the connec�on to set the dehumidiﬁer with APP. [EN]...
Page 18 SMART CONNECTION OPERATION GUIDE Adding Device Manually Step One Tap Add Device on the home page or + in the upper right corner to go to the Add Device page. Step Two Conﬁrm the indicator rapidly blink and enter the WiFi password. [EN]...
Page 19 SMART CONNECTION OPERATION GUIDE Adding Device Manually Step Three Complete the connec�on to set the dehumidiﬁer with APP. [EN]...
