- Page 1 5 WAY DC POWER LINK 40A 12-24V DUAL USB 3.0 SMART CHARGE Model No. KT70705 USER MANUAL IS571 Issue 1 06.09.2023...
- Page 2 USER MANUAL Please refer to this user manual before using or installing this product. FEATURES 143mm 160mm • Power up to 6 devices at once: 4 x 10A (each) heavy duty connector outputs (40A combined max output) & 2 x USB QC3.0 USB Ports. •...
-
Page 3: Specifications

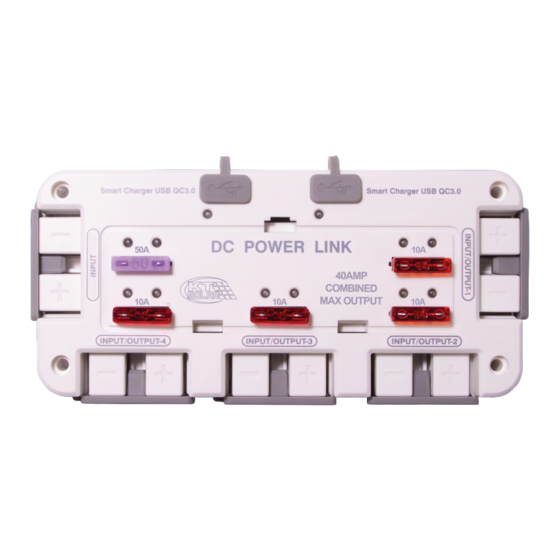

USER MANUAL COMPONENTS 1. Smart charging USBs QC3.0 ( 2 ) 2. 10A Input / Output 1 3. 10A Input / Output 2 4. 10A Input / Output 3 5. 10A Input / Output 4 6. 40A Input 7. 50A Fuse ( 1 ) - (Can use up to 1 x 50A Fuse for one INPUT only) 8. -
Page 4: Operational Instructions
USER MANUAL OPERATIONAL INSTRUCTIONS The innovative KT 40A, 12-24V, 5 Way DC Power Link is a sophisticated controller with omnidirectional capabilities. The unit has 1 Main Battery Source INPUT (40A) and can support 4 INPUT/OUTPUT accessories, including solar (must use regulator if putting power back into Main Battery). -
Page 5: Replacement Of Fuses
Amperage (50A or 10A Standard Blade Fuse). PRODUCT SAFETY This product is dustproof and splashproof. Care must be taken when using the KT Solar DC Power Link in outdoor environments. 1. Always follow user manual for operational and safety instructions. - Page 6 USER MANUAL CONFIGURATION 1 1x 12/24V Battery Source (Input) EG: 12V - 24V Can be anything from solar panels, lighting, camping 2x USB Device (Outputs) fridges & laptops. 4x 12/24V Devices (Output) Power Source USB Device 12/24V Device DEVICE DEVICE 12/24V DEVICE Power In...
- Page 7 USER MANUAL CONFIGURATION 2 1x 12/24V Solar Source (Input) Regulated EG: 12V - 24V Can be anything from solar panels, lighting, camping 1x 12/24V Battery Source (Input) fridges & laptops. 2x USB Device (Outputs) 3x 12/24V Devices (Output) Power Source Many solar panels can be connected at once to the USB Device DC Power Link providing there is a Solar Controller...
-
Page 8: Warranty Statement
USER MANUAL WARRANTY STATEMENT Brown & Watson International Pty Ltd of 1500 Ferntree Gully Road, Knoxfield, Vic. telephone (03) 9730 6000, fax (03) 9730 6050, warrants that all products described in its current catalogue (save and except for all bulbs and lenses whether made of glass or some other substance) will under normal use and service be free of failures in material and workmanship for a period of one (1) year (unless this period has been extended as indicated elsewhere) from the date of the original purchase by the consumer as marked...
