- Page 1 USER MANUAL USER MANUAL 300W 12V PORTABLE FOLDING SOLAR BLANKET ULTIMATE SOLAR POWER PERFORMANCE Model No. KT70743 IMPORTANT This manual contains important safety and operational instructions. Please read carefully before using this product.
-
Page 2: Warranty / Guarantee

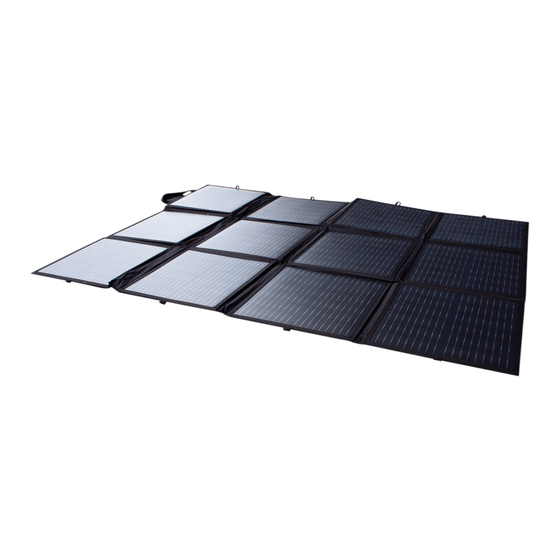

USER MANUAL Warranty Guarantee This product carries an unconditional 12 Month Warranty against defects under the terms of the manufacturers warranty. Should the manufacturers warranty not comply with Australian Consumer Law, AECAA Pty Ltd Trading as Automotive Electrical & 4WD Accessories will provide a warranty against defects for 3 years from date of purchase on the following terms: a ) For valid claims, Automotive Electrical &... - Page 3 USER MANUAL For your personal safety, please read, understand and follow the information provided in this instruction manual. Congratulations on your new & Innovative 300 Watt, 12V Portable Folding Solar Blanket! Designed to fold down to 350 x 350 x 70mm. Features •...
- Page 4 USER MANUAL Components 12 x 25W monocystralline cells in series 20A, 12V PWM solar controller - can be programmed 1 x 4.8m, 50A extension lead 1 x Positive & Negative alligator clamps, 500mm lead to 50A, 12V connector 300W Portable Folding Solar Blanket Operational Instructions Step 1 - Unfold &...
- Page 5 USER MANUAL Solar Controller Diagram AMP / AMP / VOLT VOLT BATTERY BATTERY TYPE TYPE Hold for 3 seconds Hold for 3 seconds for settings for settings 20A 12V PWM 20A 12V PWM SOLAR CHARGE CONTROLLER SOLAR CHARGE CONTROLLER KT70757 KT70757 Solar Controller Operation Step 1: Connect the battery.
- Page 6 USER MANUAL Solar Controller Specifications Type Operating Temperature -20°C to +80°C Operating Voltage Rated to (Amps) Rated to (Voltage) Battery Voltage Dimensions (mm) 100 (H) x 130 (W) x 28 (D) Product Weight 1.20kg Manufactured from material Polycarbonate The KT 20A, 12V Solar Charge Controller is designed to charge Deep Cycle Batteries. Suited to charge Lead Acid, Gel, AGM, Lithium &...
-
Page 7: Wiring Connections
USER MANUAL • Can be connected to the battery permanently to keep the battery fully charged by using a process called "floating". This means the controller will stop charging when the battery is full and will automatically start charging the battery as required. This process will also reduce water loss and help prevent the battery from 'drying out'. -
Page 8: Display Features
USER MANUAL Display Features LITH Please check your battery manufacturer’s specifications to select correct battery type. The unit provides 5 battery types for selections: Gel, AGM, WET (conventional lead acid), Lithium and Calcium. Press BATTERY TYPE button and hold for 3 seconds to go into your battery type selection mode, the battery type you select will be shown on the LCD meter, the default setting is AGM Battery;... - Page 9 USER MANUAL Display in the day time- Display during the night Alternatively Display voltage and FUL when battery is fully charged The VOLT / AMP button can be changed at any time during charging process. The LCD also can be treated as an independent voltage meter or thermometer. A voltage less than 11.5V Volts (for 12V battery) indicates that the battery is discharged and needs re-charging.
-
Page 10: Charging Stages
USER MANUAL CHARGING STAGES Soft Charge - When batteries suffer an over-discharge, the controller will softly ramps the battery voltage up to 10V for 12V battery. Bulk Charge - Maximum current charging until batteries rise to Absorption level Absorption Charge-Constant voltage charging and battery is over 85%. Equalisation Charge - Only for WET battery or Calcium battery type, when the battery is deeply drained below 10V (for 12V battery), it will automatically run this stage to bring the internal cells as an equal states and fully complement the loss of capacity. - Page 11 USER MANUAL ABNORMAL OPERATION MODE SOLAR CONTROLLER WIRING DIAGRAM...
-
Page 12: Specifications
USER MANUAL SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS Electrical Parameters Electrical Parameters Rated solar panel amps 10/15/20 Max. Rated solar panel amps 10/15/20 Max. Normal input Solar cell array voltage 15-22 Max. solar cell array voltage (output has no load) Normal input Solar cell array voltage 15-22 Max. -
Page 13: Product Care
Do not attempt to increase module output by concentrating light on its surface with mirrors. When storing the KT Solar Blanket - to avoid damage, do not pack heavy items on top. Do not disassemble the controller. Take to a qualified electrician if the unit requires repairing. - Page 14 USER MANUAL...
- Page 15 USER MANUAL...
- Page 16 USER MANUAL...
