Dorel Home Products 4304019 Manual

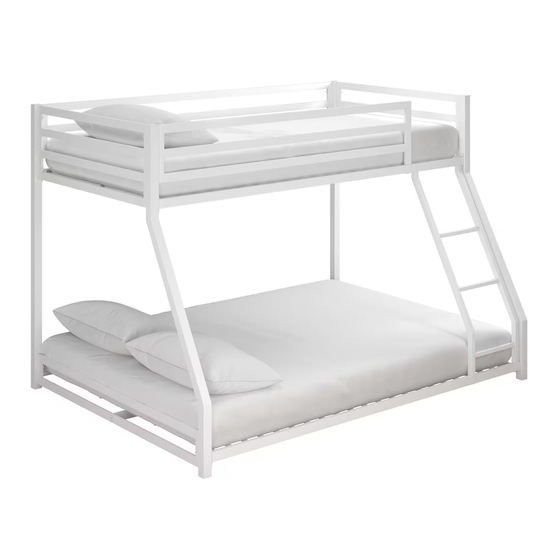

Metal bunk bed
Hide thumbs

Advertisement

Table of Contents

4304019(Black), 4304119(White), 4304419(Silver), 4304619(Blue)
Weight Limit:
Upper Bed:200 Lb / 91 Kg
Lower Bed:450 Lb / 204 Kg
C.W. - 2019/10/10
2014 Dorel Home Products All Rights Reserved
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Metal Bunk Bed
Twin - Full
Lot Number
B34430401900
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4304019 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dorel Home Products 4304019

Summary of Contents for Dorel Home Products 4304019

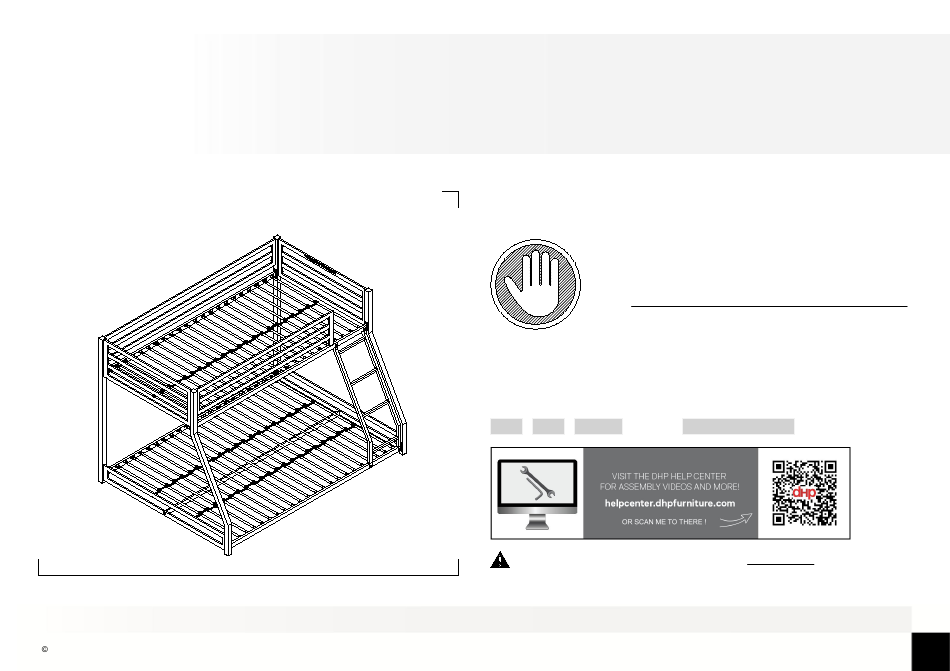

  • Page 1 Visit www.dhpfurniture.com/eng/replacement-parts or call Toll-Free 1-800-267-1739 Date of Purchase Lot Number THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. B34430401900 C.W. - 2019/10/10 2014 Dorel Home Products All Rights Reserved...

  • Page 2: Warranty Information

    Warranty Information Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship and Call our toll free number if you need assistance. agrees to remedy any such defect. This warranty covers one year from the date of Work in a spacious area and near where the unit will be used, preferably on a original purchase.
  • Page 3 Parts Replacement Parts, visit www.dhpfurniture.com/eng/replacement-parts All in 1 big box! There are inner box(es) that include components required to complete this assembly. Before you throw the package, please use the Post Post Post Post End Guard Rail Check Box to identify the parts and ensure that you have all the parts needed for the assembly.
  • Page 4 Parts Replacement Parts, visit www.dhpfurniture.com/eng/replacement-parts All in 1 big box! There are inner box(es) that include components required to complete this assembly. Before you throw the package, please use the Guard Rail Guard Rail Ladder Check Box to identify the parts and ensure that you have all the parts needed for the assembly.
  • Page 5 Parts IMPORTANT: Below part numbers list is unique to your product. Please keep it on hand when calling for replacement parts. Replacement Parts, visit www.dhpfurniture.com/eng/replacement-parts Part Number 4304019 4304119 4304419 4304619 Part (Black) (White) (Silver) (Blue) Labels T964630 T972850 T964670...

  • Page 6: Hardware Pack

    Hardware Pack 4304019(Black) HP#: T4304019-00 4304619(Blue) 1/4" 4304119(White) HP#: T4304419-00 4304419(Silver) 5/16" X 3/4" X 16 1/4" X 1 3/16" 1/4" X 2" X 22 1/4" X 2 3/8" 40 X 12 X 5 mm Please do not completely tighten all the hardware,...
  • Page 7 Step 1 Attach I to C & D with Attach T to C & D with For your safety, please ensure that the warning on (I) is oriented towards upside and inside of the bed.
  • Page 8 Step 2 Attach G to A & B with Attach T to A & B with...
  • Page 9 Step 3 Stick X 3 to X where illustrated. . Remove the cover before sticking ! 18.9'' 18.9'' 18.9'' 18.9''...
  • Page 10 Step 4 Attach J X 2, H and K to A/B/C and D with Attach X to T X 2 with Wide side of the slot should be facing up ! Holds on H & K for ladder should be located close to Note: The x 3 attached to X must be oriented towards floor.
  • Page 11 Step 5 Insert O into H and J on upper bed (TWIN SIZE), lock O in-place with Y. Insert P into K and J on lower bed (FULL SIZE), lock P in-place with Y .
  • Page 12 Step 6 6.1 Press W onto O approximately in the middle for upper bed. Press W onto P following the distances as shown for lower bed. 6.2 Press Q onto W alternating left and right. 17.5'' 17.5'' 17.5''...
  • Page 13 Step 7 Attach E to B/C with Attach F to A/H with &...
  • Page 14 Step 8 Attach Z to H & K with...

  • Page 15: Helpful Hints

    For the best comfort, we recommend a 6" height mattress to be used on lower bunk. Some parts have been pre-assembled for this item. They are illustrated on this page and available for replacement. End Cap 4304019(Black) T392460 4304619(Blue) 4304119(White) T392640 4304419(Silver)
  • Page 16 WARNINGS for Bunk Bed Follow the information on the warnings appearing on the upper bunk end structure and on the carton. Do not remove warning label from bed. Always use the recommended size mattresses or mattress supports, or both, to help prevent the likelihood of entrapment or falls. Use only a twin mattress which is 74"-75"...
  • Page 17 4304019(Negro), 4304119(Blanco) NO LO REGRESE A LA TIENDA ! 4304419(Plata), 4304619(Azul) Si le faltan piezas o las que se incluyen est n da adas, con mucho gusto le enviaremos sus piezas de reemplazo sin Litera de metal cargo extra. Visite www.dhpfurniture.com/spa/replacement-parts...
  • Page 18 Partes N mero de pieza 4304019 4304119 4304419 4304619 Etiqueta Piezas de reemplazo, visite www.dhpfurniture.com/spa/replacement-parts (Negro) (Blanco) (Plata) (Azul) de pieza IMPORTANTE: la lista de n meros de pieza que aparece a continuaci n es exclusiva de su producto. Por favor, mant ngalo a mano cuando solicite piezas...
  • Page 19 Paquete de componentes Instrucciones Paso 1 Paquete de componentes #: 4304019(Negro)/4304619(Azul): T4304019-00 Una la parte I en C & D con 4304119(Blanco)/4304419(Plata): T4304419-00 Una la parte T en C & D con Nota: Por favor no apriete completamente las piezas hasta que el...
  • Page 20 Consejos tiles L mites de peso: 200 Lb / 91 Kg en la cama superior; 450 Lb / 204 Kg en la cama inferior. Mueva sus muebles nuevos con cuidado, con dos personas levantando y llevando el aparato a su nueva ubicaci n. Precauc on Sus muebles DHP se pueden desmontar y volver a ensamblar en caso de mudanza.

  • Page 21: Avant De Commencer L'assemblage

    4304019(Noir), 4304119(Blanc) NE RETOURNEZ PAS AU MAGASIN ! 4304419(Argent), 4304619(Bleu) Si une pi ce est manquante ou endommag e, nous vous exp dierons avec plaisir vos pi ces de remplacement Lit superpos en m tal gratuitement. Visitez www.dhpfurniture.com/fre/replacement-parts Lit une place - Lit deux places...
  • Page 22 Pi ces Num ro d'article 4304019 4304119 4304419 4304619 tiquette Pi ces de rechange, visitez www.dhpfurniture/fre/replacement-parts (Noir) (Blanc) (Argent) (Bleu) d'article IMPORTANT: La liste des r f rences ci-dessous est propre votre produit. Veuillez le garder sous la main lorsque vous appelez des pi ces de rechange.
  • Page 23 Quincaillerie Instructions tape 1 Emballage coque #:4304019(Noir)/4304619(Bleu): T4304019-00 Attacher I C et D avec 4304119(Blanc)/4304419(Argent): T4304419-00 Attacher T C et D avec Remarque: Ne serrez pas compl tement les boulons jusqu' ce que l'ensemble est achev , sauf indication contraire dans les intructions tape tape 2 par tape.

  • Page 24: Conseils Utiles

    Conseils utiles Limite de Poids: 200 Lb / 91 Kg sur le lit sup rieur; 450 Lb / 204 Kg sur le lit inf rieur. D placez votre nouveau mobilier avec soin, nous recommandons deux personnes pour soulever et transporter le mobilier vers son nouvel emplacement. Avertissement Votre mobilier DHP peut tre d mont et r -assembl pour faciliter les d m nagements.
