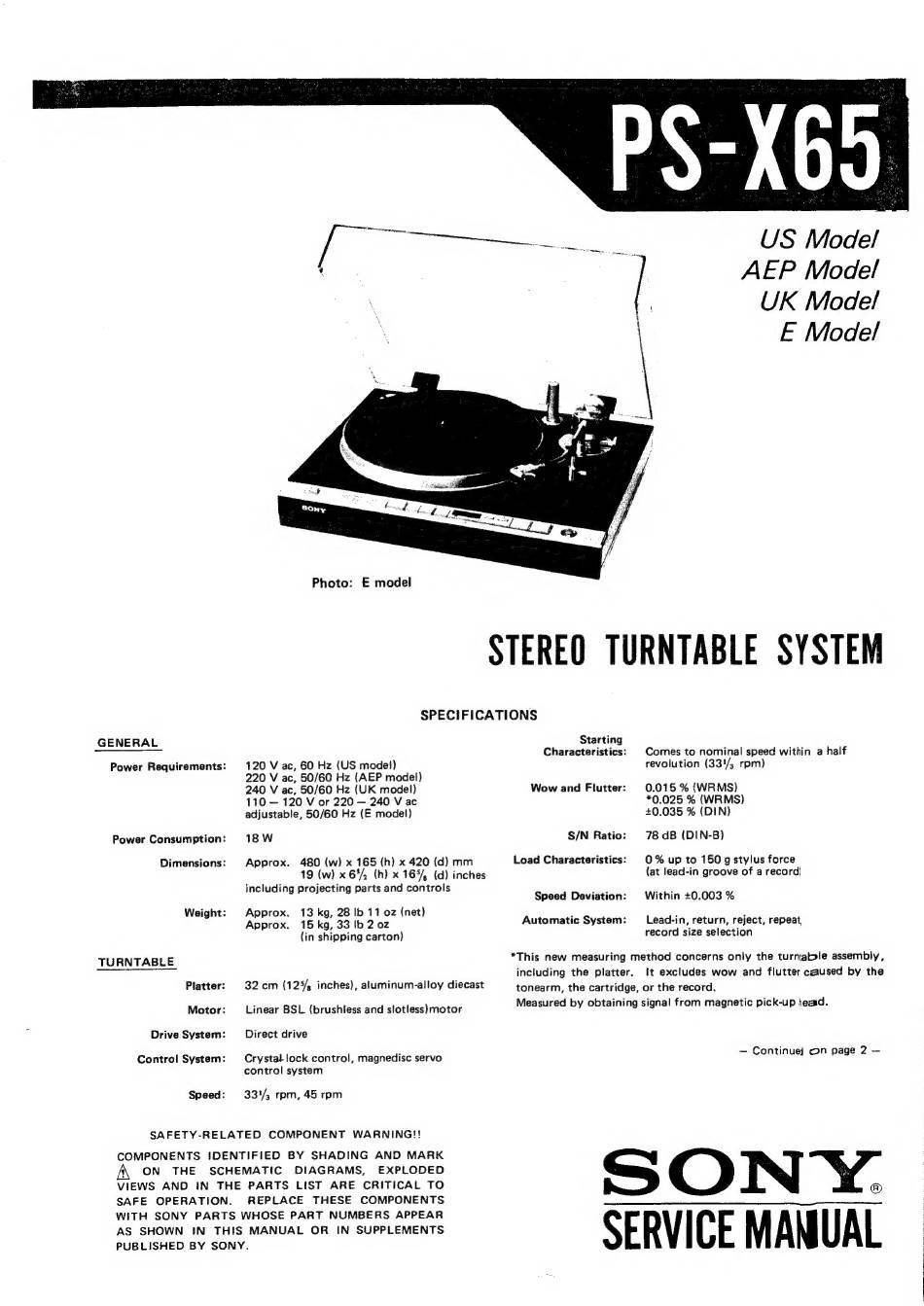

Sony PS-X65 Service Manual

GENERAL
Power Requirements:
Power Consumption:
Dimensions:
Weight:
TURNTABLE
Platter:
Motor:
Drive System:
Control System:
Speed:
eee ren:

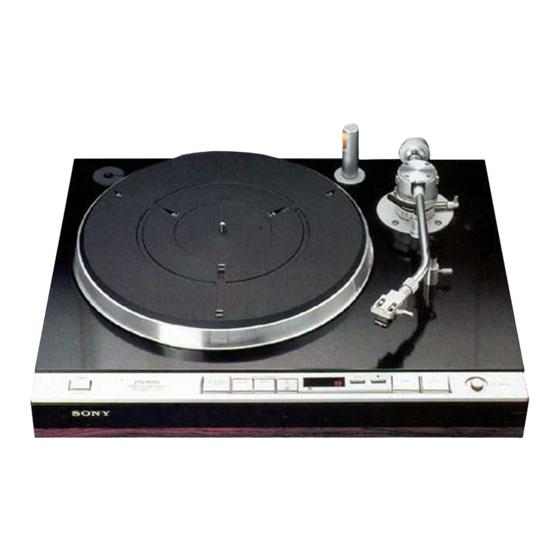

Photo: E model
SPECIFICATIONS
120 V ac, 60 Hz (US mode!)
220 V ac, 50/60 Hz (AEP model)
240 V ac, 50/60 Hz (UK model)
110 — 120 V or 220 — 240 V ac
adjustable, 50/60 Hz (E model)
18 W
Approx. 480 (w) x 165 (h) x 420 (d) mm
19 (w) x 64, (h) x 16%, (d) inches
including projecting parts and controls
13 kg, 28 Ib 11 oz {net)
15 kg, 33 Ib 2 oz
{in shipping carton)
Approx.
Approx.
32 cm (125/s inches), atuminum-alloy diecast
Linear BSL (brushless and slotless)motor
Direct drive
Crystal lock control, magnedisc servo
control system
331/; rpm, 45 rpm
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK
ON THE SCHEMATIC DIAGRAMS, EXPLODED
VIEWS AND IN THE PARTS LIST ARE CRITICAL TO
SAFE OPERATION.
REPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS APPEAR
AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
Starting
Characteristics:
Wow and Flutter:
S/N Ratio:
Load Characteristics:
Speed Deviation:
Automatic System:
US Model
AEP Model
| UK Model
E Mode!
STEREO TURNTABLE SYSTEM
Comes to nominal speed within a half
revolution (331/, rpm)
0.015 % {WRMS)
*0.025 % (WRMS)
+0.035 % (DIN)
78 dB (DIN-B)
0% up to 150 g stylus force
(at lead-in groove of a record)
Within +0.003 %
Lead-in, return, reject, repeat,
record size selection
*This new measuring method concerns only the turntable assembly,
including the platter.
It excludes wow and flutter caused by the
tonearm, the cartridge, or the record.
Measured by obtaining signal from magnetic pick-up head.
— Continuel On page 2 —
