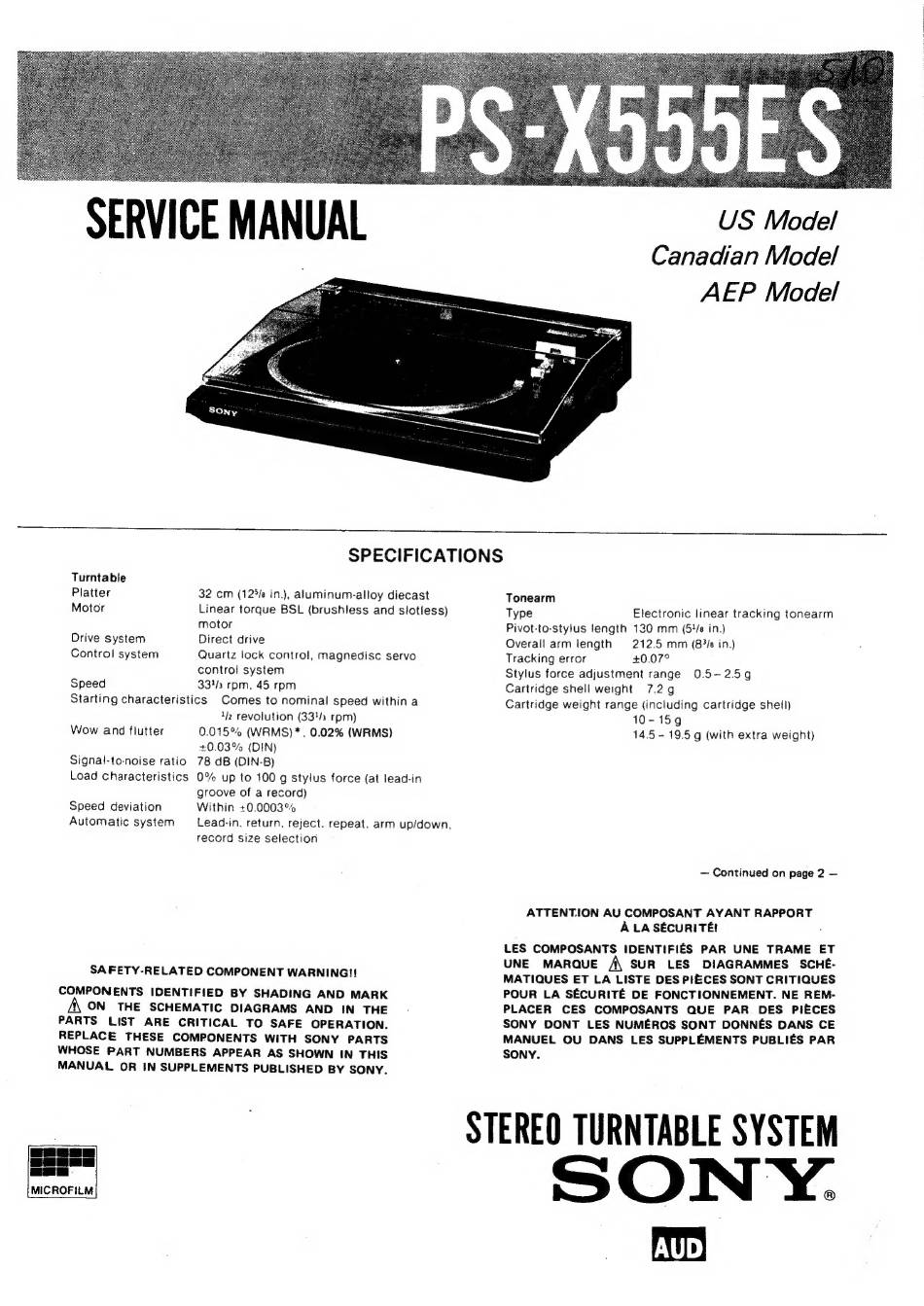

Sony PS-X555ES Service Manual

Sony PS-X555ES Service Manual

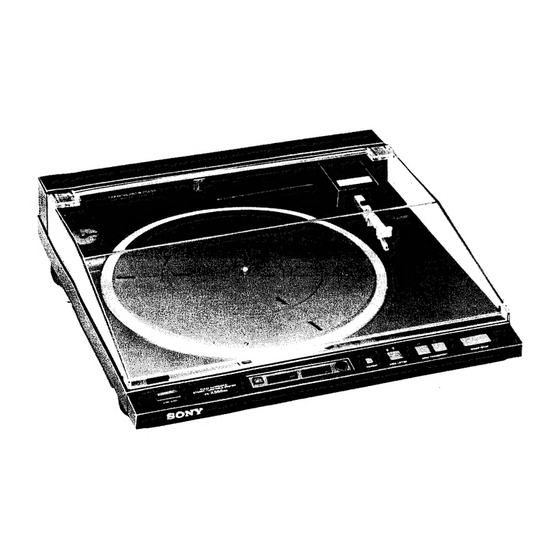

Stereo turntable system
Hide thumbs Also See for PS-X555ES:

Advertisement

Quick Links

MICROFILM
US Model
Canadian Model
AEP Model
SPECIFICATIONS
Turntable
Platter
32 cm (125/s in.), aluminum-alloy diecast
Motor
Linear torque BSL (brushless and slotless)
motor
Drive system
Direct drive
Control system
Quartz lock control, magnedisc servo
control system
Speed
331/; rpm. 45 rpm
4h revolution (33! rpm)
Wow and flutter
0.015% (WRMS)*. 0.02% (WRMS)
+0.03% (DIN)
Signal-to-noise ratio
78 dB (DIN-B)
groove of a record)
Speed deviation
Within +0.0003%
record size selectiori
Tonearm
Type
Electronic linear tracking tonearm
Pivot-to-stylus length 130 mm (5:/в in.)
Overall arm length
212.5 mm (836 in.)
Tracking error
+0.07°
Stylus force adjustment range
0.5 ~ 2.5 9
Cartridge shell weight
7.2g
Cartridge weight range (including cartridge shell)
10-150
14.5 - 19.5 g (with extra weight)
— Continued on page 2 —
