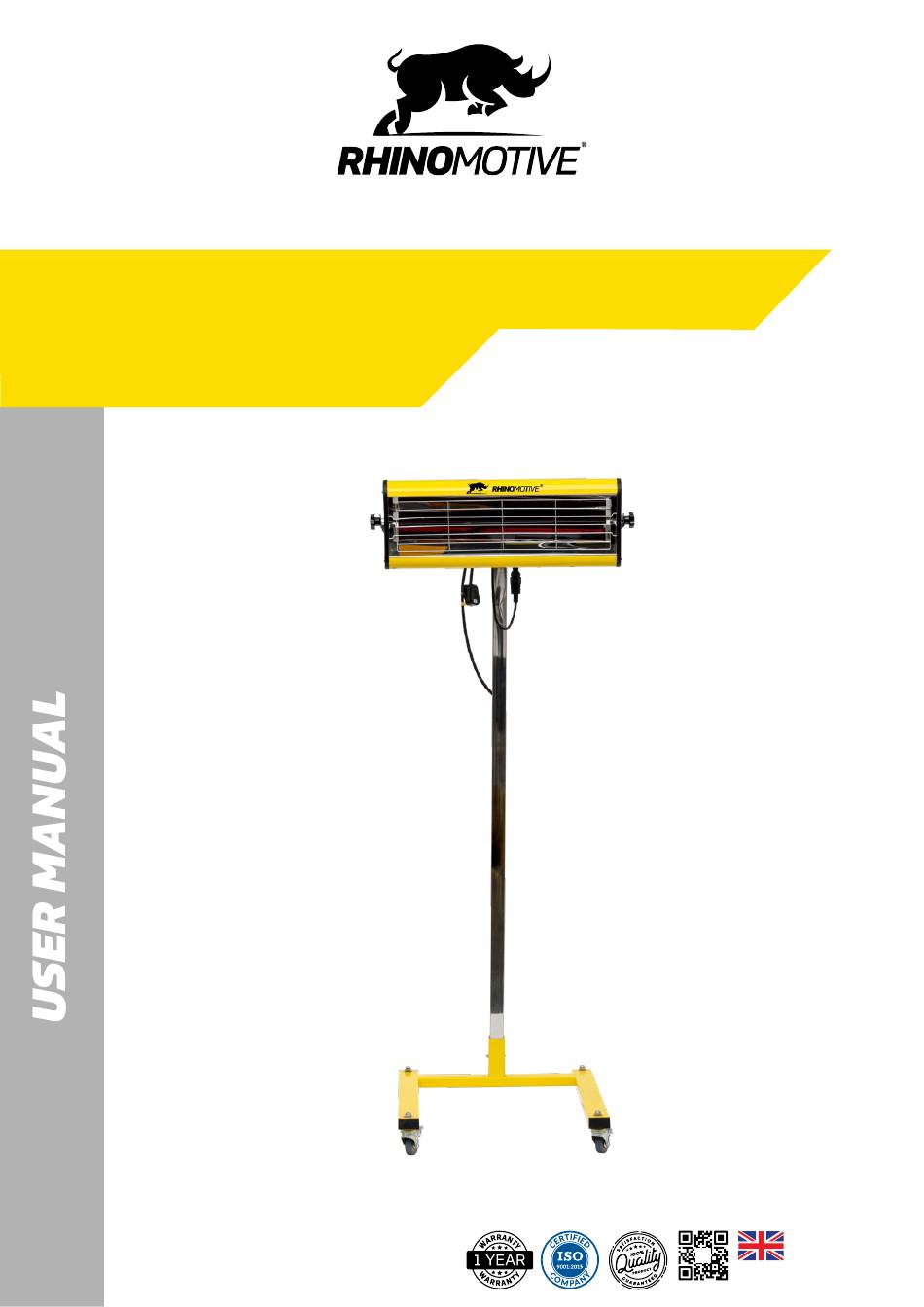

- Page 1 SINGLE INFRATECH PAINT CURING LAMP - POWER 1050W PN: R1105 RHINOMOTIVE LTD - UK 71-75 Shelton Street, London, United Kingdom Scan QR Code www.rhinomotive.com...
-
Page 2: General Information
• IR bulb: 1x 1050W • Max power: 11DOW • Rated input current: 12A • Covering area: 0.6Mx0.4M • Timing range: 0-60MIN • Timer operation: By knob • Temperature: 60°C--70°C • Recommended curing distance: 30-50cm (please adjust it according to actual conditions) www.rhinomotive.com... -
Page 3: Safety Instructions
(Minutes. For reference only. You may adjust it according to actual conditions): PAINT TYPE TIME Waterborne basecoat 5-10 min Filler/Stopper 10-15 min Primer 10-15 min Waterborne primer 10-20 min Hi-build 15-20 min Solid color 10-15 min Clear coat 15-20 min www.rhinomotive.com... -
Page 4: Replacing Lamp Bulb
And then hold the housing and slide bracket up or down with two hands. To avoid damaging lamp, do NOT move it with only one hand. 9. OPERATION INSTRUCTIONS • Move dryer to obtain optimal distance (recommended distance: 50cm You may adjust it according to actual conditions) • Set baking time. • Turn on power switch and lamp switch. www.rhinomotive.com... -
Page 5: 10. Troubleshooting
Cable Socket Stand Switch Column Straightener Timer Knob Column Control Panel End Cover Bracket Handle Lamp Cable Control Box Side Cover Bracket Grille M12 Hand Nut Housing Connector Timer Bulb Housing Assembly Ms Hand Nut Back Cover U-Bar Main Reflector www.rhinomotive.com... - Page 6 12. PARTS BRAKEDOWN 13. PACKING LIST Main carton: Stand x1 Replacement Bulb x1 Housing Assembly x1 Control Box x1 Column carton: Column x1 RHINOMOTIVE LTD - UK 71-75 Shelton Street, London, United Kingdom Scan QR Code www.rhinomotive.com www.rhinomotive.com...
