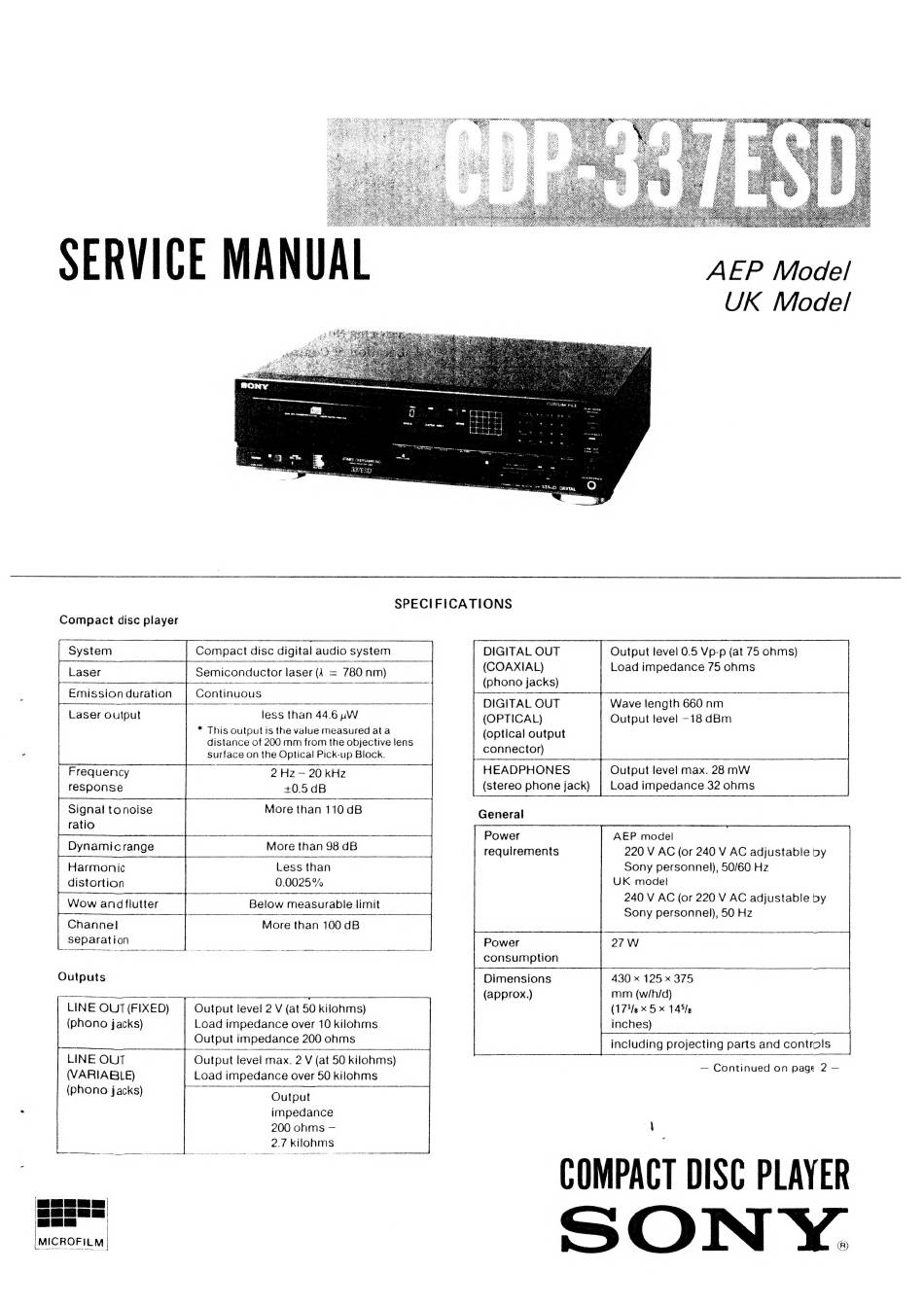

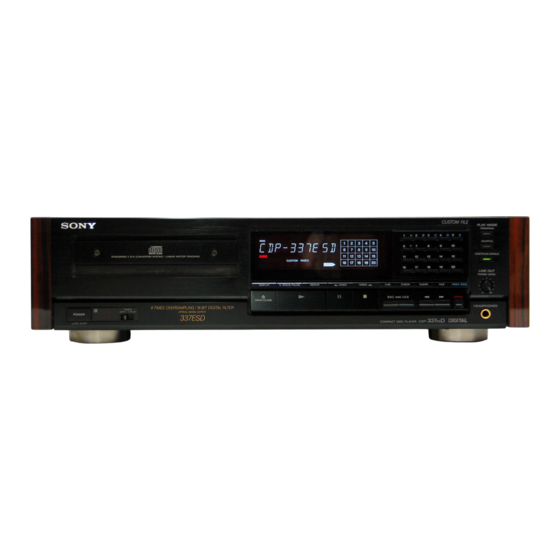

Sony CDP-337ESD Service Manual

AEP Model
UK Model
Neti mneen sh memen,
CUSTOM ALE
oe
SPECIFICATIONS
Compact disc player
Compact disc digital audio system
Semiconductor laser (A = 780 nm)
Continuous
less than 44.6 pW
* This output is the value measured ata
distance of 200 mm from the objective lens
surface on the Optical Pick-up Block.
2 Hz — 20 kHz
+0.5 dB
More than 110 dB
Laser output
Frequency
response
Signal tonoise
ratio
Harmonic Less than
distortion 0.0025%
Below measurable limit
More than 100 dB
Wow and flutter
Channel
separation
LINE OUT (FIXED)
(phono jacks)
Output level 2 V (at 50 kilohms)
Load impedance over 10 kilohms
Output impedance 200 ohms
Output level max. 2 V (at 50 kilohms)
Load impedance over 50 kilohms
LINE OUT
(VARIABLE)
(phono jacks)
Output
impedance
200 ohms —
2.7 kilohms
DIGITAL OUT
(COAXIAL)
(phono jacks)
DIGITAL OUT
Output level 0.5 Vp-p (at 75 ohms)
Load impedance 75 ohms
Wave length 660 nm
Output level -18 dBm (OPTICAL)
(optical output
connector)
~ HEADPHONES
(stereo phone jack)
Output level max. 28 mW
Load impedance 32 ohms
General
AEP model
220 V AC (or 240 V AC adjustable by
Sony personnel), 50/60 Hz
UK model
240 V AC (or 220 V AC adjustable by
Sony personnel), 50 Hz
Power
requirements
Power 27 WwW
consumption
430 « 125 x 375
mm (w/h/d)
(174/a x 5 x 145/g
inches)
including projecting parts and controls |
— Continued on page 2 —
Dimensions
(approx.)
COMPACT DISC PLAYER
