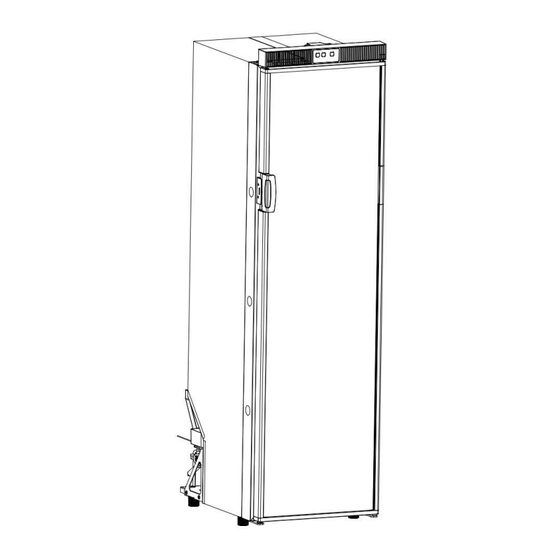

RCN Series Compressor Refrigerator
Installation and Operating Manual
More information https://www.caravansplus.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCN Series and is the answer not in the manual?

Questions and answers

Errol Murfet
July 22, 2025

We have a new RCE170L . The freezer door is very difficult to open . The lock button is retracting ok Sometimes almost impossible

Summary of Contents for SANJO RCN Series

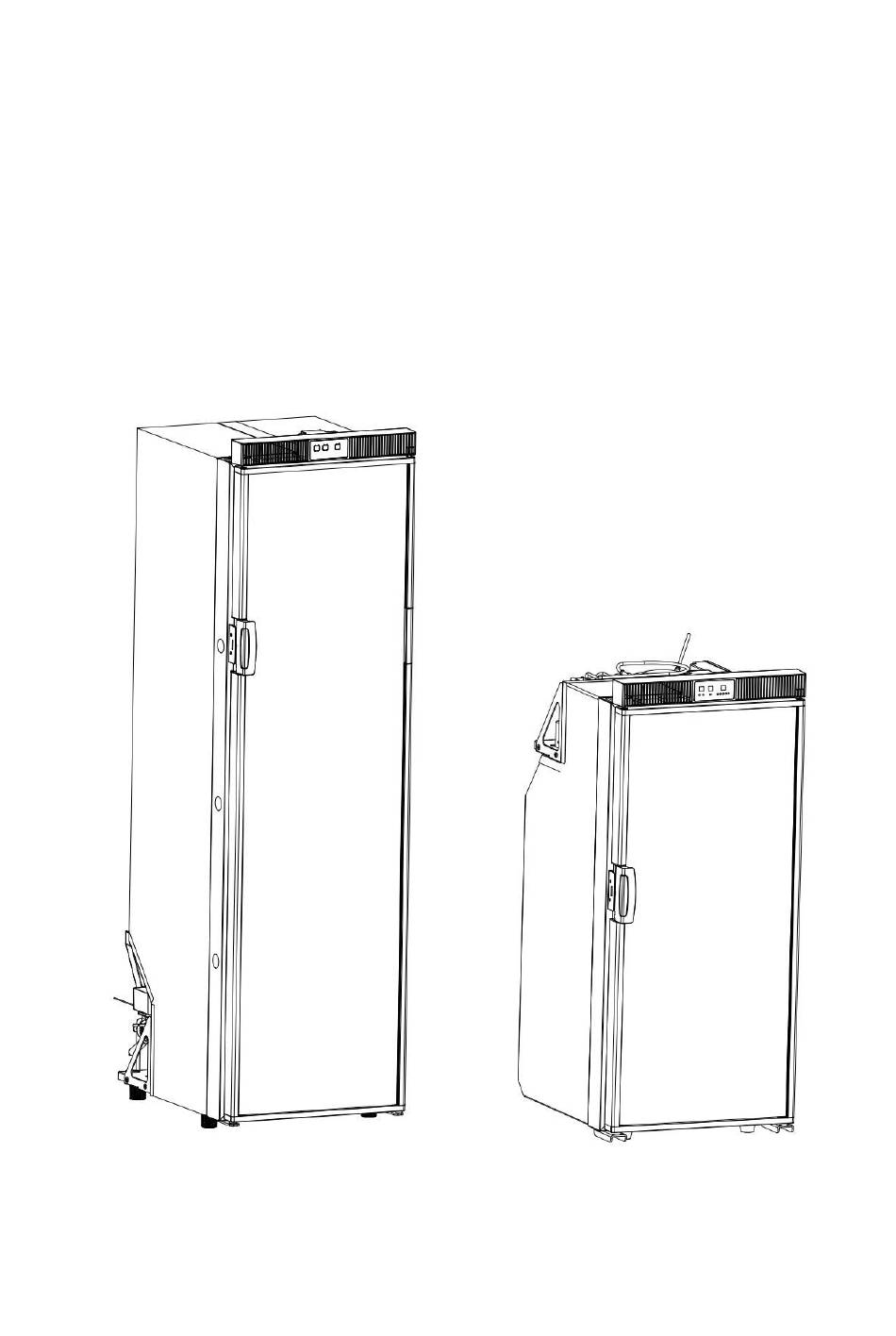

  • Page 1 RCN Series Compressor Refrigerator Installation and Operating Manual More information https://www.caravansplus.com.au...
  • Page 2 More information https://www.caravansplus.com.au...
  • Page 3 RCN90L RCN90L-A More information https://www.caravansplus.com.au...
  • Page 4 RCN150L More information https://www.caravansplus.com.au...
  • Page 5 RCN150L-A More information https://www.caravansplus.com.au...
  • Page 6 RCN90L,RCN150L RCN150L-A More information https://www.caravansplus.com.au...
  • Page 7 More information https://www.caravansplus.com.au...
  • Page 8 More information https://www.caravansplus.com.au...
  • Page 9 More information https://www.caravansplus.com.au...
  • Page 10 More information https://www.caravansplus.com.au...
  • Page 11 100-240V- rd/bk Fuse 12V/24V More information https://www.caravansplus.com.au...
  • Page 12 RCN90L/RCN90L-A 418mm 480mm More information https://www.caravansplus.com.au...
  • Page 13 RCN150L / RCN 150L-A 560mm 418mm More information https://www.caravansplus.com.au...
  • Page 14: Table Of Contents

    Respected Users: Thank you for choosing 3J refrigerator! Please read this instruction manual carefully before installation and first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it.
  • Page 15 7.7 Connecting therefrigeratorto ACvoltage......... 27 8.Using the refrigerator..................28 8.1 Energy saving tips................29 8.2 Switching on the refrigerator..............29 8.3 Setting the temperature..............30 8.4 Conserving foodstuffs.................31 8.5 Defrosting the freezer................. 32 8.6 Switching off and storing the refrigerator.........32 9.Cleaning and maintenance................33 10.Disposal......................33 11.Troubleshooting....................
  • Page 16: Explanation Of Symbols

    1.Explanation of symbols DANGER! Safety instruction: Failure to observe this instruction will cause death or serious injury. WARNING! Safety instruction: Failure to observe this instruction can cause death or serious injury. CAUTION! Safety instruction: Failure to observe this instruction can lead to injury.
  • Page 17: General Safety

    · Damage to the product resulting from mechanical influences and incorrect connection voltage. · Alterations to the product without express permission from the manufacturer. · Use for purposes other than those described in the operating manual. 2.1 General safety DANGER! Failure to obey these warnings will result in death or serious injury.
  • Page 18 hazards. · This device may only be repaired by qualified personnel. Inadequate repairs may cause serious hazards. HEALTH HAZARD · This appliance can be used by children aged from 8 years and above and persons with reduced Physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 19 NOTICE! DANGER OF DAMAGE · Check that the voltage specification on the type plate is the same as that of the power supply. · Never pull the plug out of the socket by the connection cable. · If the refrigerator is connected to the DC socket: Disconnect the refrigerator and other electric consumers from the battery before connecting the quick charging device.
  • Page 20: Operating The Device Safely

    - Air the room well. · Set up the device in a dry location where it is protected against splashing water. 2.2 Operating the device safely DANGER! Failure to obey these warnings will result in death or serious injury. DANGER OF ELECTROCUTION ·...
  • Page 21: Scope Of Delivery

    NOTICE!DANGER OF DAMAGE · Do not use electrical devices inside the cooling device unless they are recommended by the manufacturer for that purpose. · Do not place it near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.) DANGER OF OVERHEATING ·...
  • Page 22: Accessories

    4.Accessories Available as accessories (not included in the scope of delivery): Description Explanation Ref. no. Suitable for RCN90LDC,RCN150LDC,RCN150L-A AC/DC DC,Transforms an input voltage of ⎓ Adapter AC 100 – 240 V to DC 12 V or 24 ⎓ , so that the refrigerator can be connected to an AC power supply If you have any questions, please contact the dealer or your service partner directly.
  • Page 23: Technical Description

    6.Technical description The SANJO RCN series cooling appliance can cool products and keep them cool. Products can be deep-frozen in the freezer compartment. All materials used in the refrigerator are compatible for use with foodstuffs. The refrigerant circuit is maintenance free.
  • Page 24: Control Panels

    Wire shelf Shelf Fruit bowl Storage Box 6.2 Control Panels No. In fig. 5, page 4 Explanation On/Off button Sleep mode Temperature selection button LED: Temperature levels LED Service display No. In fig. 6,page 4 Explanation IR sensor for switching the interior light LED Service display LED Blue:Compressor is running LED Orange:Compressor is off...
  • Page 25: Installing And Connecting The Refrigerator

    7.Installing and connecting the refrigerator 7.1 Safety instructions for installation Please note the following instructions for installation DANGER! DANGER OF ELECTROCUTION If the appliance is powered by the mains, ensure that the voltage supply has a residual current circuit breaker. NOTICE! DANGER OF DAMAGE ·...
  • Page 26: Installing The Refrigerator

    Explanation Cold intake air Hot waste air Condenser Product size: Dimensions Dimensions Model W*H*D(mm) W*H*D(inch) RCN90L 418*972*480 16.45*38.26*18.89 RCN150L 418*1498*560 16.45*58.97*22.04 Observe the following installation dimensions: Dimensions Dimensions Model W*H*D(mm) W*H*D(inch) RCN90L 428*980*490 16.85*38.58*19.29 RCN150L 428*1510*570 16.85*59.44*22.44 · Keep objects clear of openings in the housing or installation structure (such as ventilation slots, etc.).
  • Page 27: Positioning The Shelves

    Push the refrigerator into the recess.  Fix the refrigerator in place using suitable screws (fig. 7, Page 5).  7.4 Positioning the shelves WARNING! Children beware! All shelves are fixed in place to prevent children from climbing inside the refrigerator. ·...
  • Page 28: Connecting The Refrigerator To Dc Voltage

    7.6 Connecting the refrigerator to DC voltage NOTICE! DANGER OF DAMAGE · To avoid voltage drops and loss of performance, keep the connection cable as short as possible and not be interrupted. Therefore avoid additional switches, plugs, power strips or Power bar. ·...
  • Page 29: Connecting Therefrigeratorto Acvoltage

    cable length according to fig. 17, Page 8. Coordinate axis Meaning Unit Cable length φ Cable cross section NOTICE! DANGER OF DAMAGE Make sure the polarity is correct. Before starting up the device for the first time, check whether the ...
  • Page 30: Using The Refrigerator

    Seek advice from a trained technician. 8.Using the refrigerator The refrigerator conserves fresh foodstuffs. The freezer compartment conserves frozen foodstuffs and freezes fresh foodstuffs. NOTICE! DANGER OF DAMAGE · Do not place any electrical devices inside the cooler. The only exceptions are devices approved for the purpose by the manufacturer.
  • Page 31: Energy Saving Tips

    · Do not remove the control panel membrane when operating the refrigerator. 8.1 Energy saving tips · Choose a well ventilated location which is protected from direct sunlight. · Allow hot food to cool down first before you put it in the refrigerator.
  • Page 32: Setting The Temperature

    RCN150-I Turn on the quite mode: Press and hold the on/off button and the  temperature selection button simultaneously, then the orange light flashes three times to turn on the quite mode. Turn off the silent mode: Press and hold the on/off button and ...
  • Page 33: Conserving Foodstuffs

    8.4 Conserving foodstuffs NOTICE! DANGER OF DAMAGE · Do not conserve warm foodstuffs in the refrigerator. · Do not place glass containers containing liquid in the freezer compartment. NOTE! Food which can easily absorb tastes and odours, as well as liquids and products with a high alcohol content, should be conserved in airtight containers.
  • Page 34: Defrosting The Freezer

    with a lid. This ensures that aromas, the shape and the freshness will be better conserved. 8.5 Defrosting the freezer NOTICE! DANGER OF DAMAGE Never use mechanical tools to remove ice or to loosen objects stuck to the device. The only exceptions are devices approved for the purpose by the manufacturer.
  • Page 35: Cleaning And Maintenance

    The door stays open thus preventing smells from arising.  9. Cleaning and maintenance NOTICE!DANGER OF DAMAGE · Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the refrigerator. · Do not use hard or pointed tools to speed up the defrosting process.
  • Page 36: Troubleshooting

    Place the packaging material in the appropriate recycling waste  bins wherever possible. If you want to get rid of these products eventually, consult your local recycling center or ask a professional dealer for details. 11.Troubleshooting The significance of the red LED For operational faults it illuminates several times.
  • Page 37 If the cooling system is overloaded, Speed too low the minimum speed of the motor of 1,850 rpm cannot be maintained. Overheating of If the cooling system is loaded too the electronics heavily or the temperature is set too unit high, the electronics can overheat.
  • Page 38 Ambient temperature too – high Move the Start attempt with Check the ventilation refrigerator to ≥ U Term another location Clean the Condenser is dirty condenser Electric circuit between the pins Contact customer Defective compressor in the compressor service interrupted : Voltage between the positive and negative terminals of the Term electronics...
  • Page 39 Ambient temperature – too high Voltage is present but the compressor Move the refrigerator Check the ventilation doesn't run to another location Condenser is dirty Clean the condenser Electric circuit between the pins in Contact customer Defective compressor the compressor service interrupted Poor cooling, increase in interior temperature...
  • Page 40: Technical Data

    Unusual noises Problem Possible cause Remedy A component of the refrigerant Bend the component circuit cannot move freely carefully away from (touching the wall) the obstruction Loud There is a foreign object stuck humming Remove the foreign between the cooling unit and object the wall Fan noise...
  • Page 41 Cooling temperature range Refrigerator: +5℃(+41℉)~ +15℃(59℉) Freezer: -18℃(0℉) Climatic class: N or T Short-term inclination: maximum 30° Max. pressure: LP 11bar/HP 25 bar Propellant: Refrigerant: R1234yf Refrigerant quantity: fig. 20, fig. 21, Dimensions(W*H*D)mm: Page 10 Page 11 20.5kg 33.4kg Weight: (45.19lbs)...
  • Page 42 More information https://www.caravansplus.com.au...
  • Page 43 More information https://www.caravansplus.com.au...
  • Page 44 Jiangsu Sanjo Intelligent Technology Co.,Ltd Address:No.8 JinGuaZi Road,NanDu Town,LiYang City,JiangSu Province,China Tel:400-839-8111 E-Mail:sanjo@jssqzn.com URL:www.jssqzn.com More information https://www.caravansplus.com.au...
