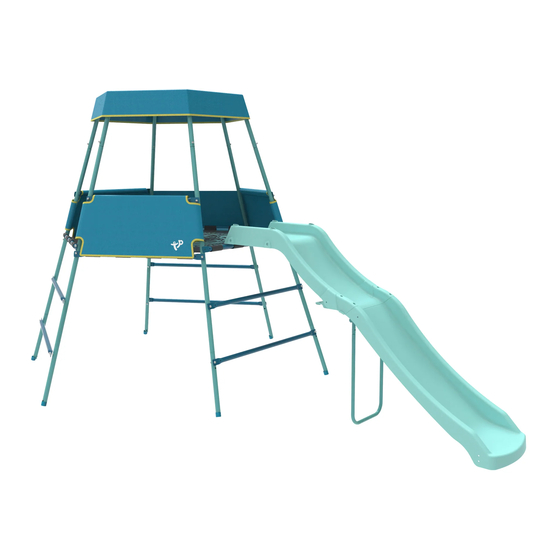

TP Little Adventurer Climbing Frame TP898 Instructions For Assembly, Maintenance And Safe Use

TP Little Adventurer Climbing Frame TP898 Instructions For Assembly, Maintenance And Safe Use

Metal climbing frame

Advertisement

Quick Links

TP898 TP899
18m+
TP898 - Little Adventurer Climbing Frame
TP899 - Growable Adventurer Climbing Frame (full height)
TP899 - Growable Adventurer Climbing Frame (low height)
Instructions for assembly, maintenance and safe use.
We constantly strive to improve our assembly instructions. To see the most current
version of this instruction for assembly, maintenance and safe use. Please visit the
product page at tptoys.com
WARNING:
2hr Build time
x1 Person build
ADULT ASSEMBLY REQUIRED
tptoys.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Little Adventurer Climbing Frame TP898 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TP Little Adventurer Climbing Frame TP898

  • Page 1 TP898 TP899 18m+ TP898 - Little Adventurer Climbing Frame TP899 - Growable Adventurer Climbing Frame (full height) TP899 - Growable Adventurer Climbing Frame (low height) Instructions for assembly, maintenance and safe use. We constantly strive to improve our assembly instructions. To see the most current version of this instruction for assembly, maintenance and safe use.
  • Page 2 WARNINGS! LOW HEIGHT - THIS PRODUCT IS INTENDED FOR USE BY CHILDREN FROM AGES 18+ MONTHS. REMOVE ALL PACKAGING BEFORE GIVING TO YOUR CHILDREN. THIS PRODUCT CONTAINS SMALL PARTS AND IS NOT SUITABLE FOR CHILDREN UNDER 36 MONTHS UNTIL ANCHORS THAT ARE SUPPLIED WITH THIS PRODUCT MUST BE FITTED BEFORE USE. FULLY ASSEMBLED.
  • Page 3 ACHTUNG! AUF NIEDRIGER HÖHE GEBAUT DIESES PRODUKT IST FÜR KINDER AB ALTER 18 MONATEN BESTIMMT. ALLE VERPACKUNGEN ENTFERNEN, BEVOR IHRE KINDER DAS PRODUKT ERHALTEN ODER DAMIT SPIELEN DÜRFEN. EHE ES MONTIERT IST, IST ES NICHT FÜR KINDER UNTER 36 MONATEN GEEIGNET. DIE MITGELIEFERTEN ANKER MÜSSEN VOR DER VERWENDUNG DES PRODUKTS ANGEBRACHT WERDEN.
  • Page 4 AVVERTENZA! COSTRUITO A BASSA ALTEZZA QUESTO PRODOTTO È DESTINATO ALL’USO DAI BAMBINI DAI 18 MESI + ELIMINARE LA CONFEZIONE PRIMA DI DARE IL GIOCATTOLO AI BAMBINI O PERMETTERE LORO DI UTILIZZARLO. NON ADATTO PER BAMBINI DI ETÀ INFERIORE A 36 MESI FINO A QUANDO NON È COMPLETAMENTE MONTATO. I PERNI DI FISSAGGIO FORNITI CON QUESTO PRODOTTO DEVONO ESSERE MONTATI PRIMA DELL’USO.
  • Page 5 ADVERTÊNCIA! CONSTRUIDO A BAJA ALTURA: ESTE PRODUCTO ESTÁ DISEÑADO PARA QUE LO UTILICEN NIÑOS A PARTIR DE LOS NIÑOS NO DEBEN UTILIZAR ESTE PRODUCTO HASTA QUE ESTÉ CORRECTAMENTE INSTALADO. LOS 18 MESES DE EDAD. RETIRAR TODO EL EMBALAJE ANTES DE ENTREGAR ESTE JUGUETE AL NIÑO O PERMITIR QUE JUEGUE CON NO APTO PARA NIÑOS MENORES DE 36 MESES HASTA QUE ESTÉ...
  • Page 6 100 : TP898 TP899 (low height) 142cm 172cm 233cm TP899 (full height) 170cm 192cm 300cm...
  • Page 7 WARNINGS! LOW HEIGHT - THIS PRODUCT IS INTENDED FOR USE BY CHILDREN FROM AGES 18+ MONTHS. ANCHORS THAT ARE SUPPLIED WITH THIS PRODUCT MUST BE FITTED BEFORE USE. THIS PRODUCT CONTAINS SMALL PARTS AND IS NOT SUITABLE FOR CHILDREN UNDER 36 MONTHS UNTIL KEEP AWAY FROM FIRE.
  • Page 8 X3.1.1 Loose-Fill Materials: TABLE X3.1 Fall Height in Feet From Which a Life Threatening Head Injury Would Not Be Expected X3.1.1.1 Maintain a minimum depth of 9 inches of loose fill materials such as wood mulch/chips, Type of Material 6 inch. depth 9 inch.
  • Page 9 TP898 MT5510 640mm MT5512 640mm TP845 MT5513 640mm MT5515 640mm MT5516 635mm FB3020 MT5525 717mm MT5518 717mm FB3021 MT5519 798mm FB3022 SP9898 MT0332-571 1240mm FA1112 M6 x 40mm PM7074 slotted bolt, washer and nut WF5280 FA1113 M6 x 15mm Allen Key PM9739-571 allen bolt, washer and nut FA1114 M6 x 15mm...
  • Page 10 TP899 MT5510 640mm MT5511 350mm MT5512 640mm MT5513 640mm MT5514 350mm MT5515 640mm MT5516 635mm MT5517 717mm MT5518 717mm MT5519 798mm MT5520 940mm MT5523 300mm MT5524 306mm MT0332-571 1240mm...
  • Page 11 TP899 PM9739-571 FB3020 PM9737-571 FB3021 MT5521 PM9738-571 FB3022 WF5280 TP845 MT5522 1232mm WF9804 SP9899 Allen Key FA2839 M10 x 13mm PM7074 PM2072 lock bolt and nut Allen Key FA1113 M6 x 15mm FA1112 M6 x 40mm allen bolt, washer and nut slotted bolt, washer and nut Spanner FA1114 M6 x 15mm...
  • Page 12 pg 13-26 TP899 pg 27-43...
  • Page 13 MT0332-571 1240mm FA2839 M10 x 13mm lock bolt and nut...
  • Page 14 MT5510 640mm FA3839 M8 x 24mm lock bolt and nut MT5513 640mm...
  • Page 15 MT5512 640mm MT5515 640mm...
  • Page 16 MT5517 717mm MT5518 717mm TP845 FA3839 M8 x 24mm lock bolt and nut...
  • Page 17 MT5518 717mm FA3839 M8 x 24mm lock bolt and nut...
  • Page 18 MT5516 635mm FB3021 FA3839 M8 x 24mm lock bolt and nut...
  • Page 19 MT5516 635mm FA3839 M8 x 24mm lock bolt and nut FB3022...
  • Page 20 FB3020...
  • Page 21 MT5519 798mm FA3839 M8 x 24mm lock bolt and nut...
  • Page 22 PM7074...
  • Page 23 PM9739-571 PM9737-571...
  • Page 24 FA1114 M6 x 15mm FA1113 M6 x 15mm allen bolt, washer and nut allen bolt, washer and nut...
  • Page 25 FA1112 M6 x 40mm slotted bolt, washer and nut TP898 TP899 (low height)
  • Page 26 WF5280 45°...
  • Page 27 MT0332-571 1240mm FA2839 M10 x 13mm lock bolt and nut...
  • Page 28 MT5510 640mm FA3839 M8 x 24mm lock bolt and nut MT5513 640mm...
  • Page 29 MT5511 350mm MT5512 640mm MT5514 350mm MT5515 640mm...
  • Page 30 MT5517 717mm MT5518 717mm TP845 FA3839 M8 x 24mm lock bolt and nut...
  • Page 31 MT5518 717mm FA3839 M8 x 24mm lock bolt and nut...
  • Page 32 MT5516 635mm FB3021 FA3839 M8 x 24mm lock bolt and nut...
  • Page 33 MT5516 635mm FA3839 M8 x 24mm lock bolt and nut FB3022...
  • Page 34 FB3020...
  • Page 35 MT5519 798mm FA3839 M8 x 24mm lock bolt and nut...
  • Page 36 MT5520 940mm FA3839 M8 x 24mm lock bolt and nut...
  • Page 37 PM7074...
  • Page 38 PM9738-571 PM9737-571...
  • Page 39 FA1113 M6 x 15mm allen bolt, washer and nut...
  • Page 40 MT5523 300mm FA1116 M6 x 58mm allen bolt and washer MT5524 306mm MT5521 MT5522 1232mm...
  • Page 41 FA1114 M6 x 15mm allen bolt, washer and nut...
  • Page 42 FA1115 M6 x 65mm PM2072 slotted bolt, washer and nut...
  • Page 43 WF9804 WF5280 45°...
  • Page 44 The TP logo is a UK Registered trademark. Robovision Ltd t/a TP Toys protects their unique designs worldwide with patents and design registrations. For full information on the intellectual property relating to TP products please visit www.tptoys.com/intellectualproperty...
