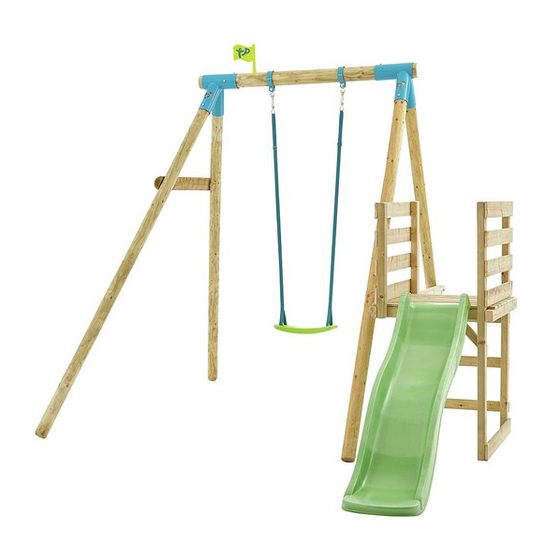

TP890 TP Robin Wooden Single
Swing Set and Slide
Instructions for assembly, maintenance and safe use.
We constantly strive to improve our assembly instructions. To see the most current version of this
instruction for assembly, maintenance and safe use. Please visit the product page at tptoys.com
Deck Position A
WARNING!
THIS PRODUCT IS NOT SUITABLE FOR CHILDREN UNDER 36
MONTHS. CONTAINS SMALL PARTS. CHOKING HAZARD.
ONLY FOR DOMESTIC USE.
FOR OUTDOOR USE.
TOY MUST BE ASSEMBLED BY AN ADULT BEFORE USE.
ADULT SUPERVISION IS REQUIRED
CHILDREN MUST NOT USE THE EQUIPMENT UNTIL PROPERLY
INSTALLED.
REMOVE ALL PACKAGING BEFORE GIVING TO YOUR
CHILDREN.
ANCHORS THAT ARE SUPPLIED WITH THIS PRODUCT MUST
BE FITTED BEFORE USE.
x2
TP890 Robin Wooden Single Swing Set and Slide In0890-A 03.01.20.indd 1
4 Hrs
Build Time
Robovision Ltd t/a TP Toys
Unit 11, Enterprise Way, Flitwick, Bedfordshire, MK45 5BX England
www.tptoys.com
Deck Position B
THIS PRODUCT IS INTENDED FOR USE BY CHILDREN FROM
AGES 3+ YEARS.
MAXIMUM COMBINED USER WEIGHT FOR SWING FRAME
150KGS
MAXIMUM SEAT USER WEIGHT 60KGS
03/01/2020 09:53
