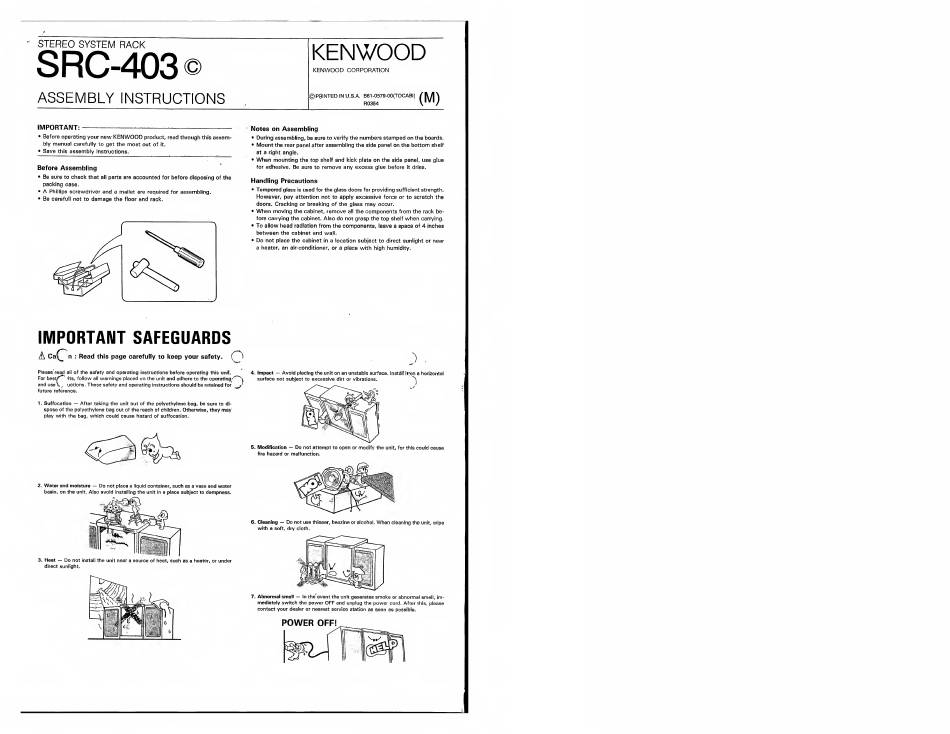

STEREO SYSTEM RACK
SRC-403
KENWOOD
KENWOOD CORPORATION
ASSEMBLY INSTRUCTIONS
©PRINTED IN U.S.A. B61-0579-00(TOCABI)
R0354
• Before operating your new KEIMWOOD product, read through this assem¬
bly manual carefully to get the most out of it.
• Save this assembly instructions.
Before Assembling
• Be sure to check that all parts are accounted for before disposing of the
packing case.
• A Phillips screwdriver and a mallet are required for assembling.
• Be carefull not to damage the floor and rack.
Notes on Assembling
• During assembling, be sure to verify the numbers stamped on the boards.
• Mount the rear panel after assembling the side panel on the bottom shelf
at a right angle.
• When mounting the top shelf and kick plate on the side panel, use glue
for adhesive. Be sure to remove any excess glue before it dries.
Handling Precautions
• Tempered glass is used for the glass doors for providing sufficient strength.
However, pay attention not to apply excessive force or to scratch the
doors. Cracking or breaking of the glass may occur.
• When moving the cabinet, remove all the components from the rack be¬
fore carrying the cabinet. Also do not grasp the top shelf when carrying.
• To allow head radiation from the components, leave a space of 4 inches
between the cabinet and wall.
• Do not place the cabinet in a location subject to direct sunlight or near
a heater, an air-conditioner, or a place with high humidity.
IMPORTANT SAFEGUARDS
A
n : Read this page carefully to keep your safety,
f
Please read all of the safety and operating instructions before operating this unif.
For best^^ 'Its, follow all warnings placed on the unit and adhere to the operating.''^'^^
and use \
uctions. These safety and operating instructions should be retained for
future reference.
1. Suffocation — After taking the unit out of the polyethylene bag, be sure to di¬
spose of the polyethylene bag out of the reach of children. Otherwise, they may
play with the bag, which could cause hazard of suffocation.
2. Water and moisture — Do not place a liquid container, such as a vase and water
basin, on the unit. Also avoid installing the unit In a place subject to dampness.
3. Heat — Do not install the unit near a source of heat, such a
direct sunlight.
4. Impact — Avoid placing the unit on an unstable surface. Install iron a horizontal
surface not subject to excessive dirt or vibrations.
A
5. Modification - Do not attempt to open or modify the unit, for this could cause
fire hazard or malfunction.
6. Cleaning — Do not use thinner, benzine or alcohol. When cleaning the unit, wipe
with a soft, dry cloth.
7. Abnormal smell — In the event the unit generates smoke or abnormal smell, im¬
mediately switch the power OFF and unplug the power cord. After this, please
contact your dealer or nearest service station as soon as possible.
POWER OFF!
