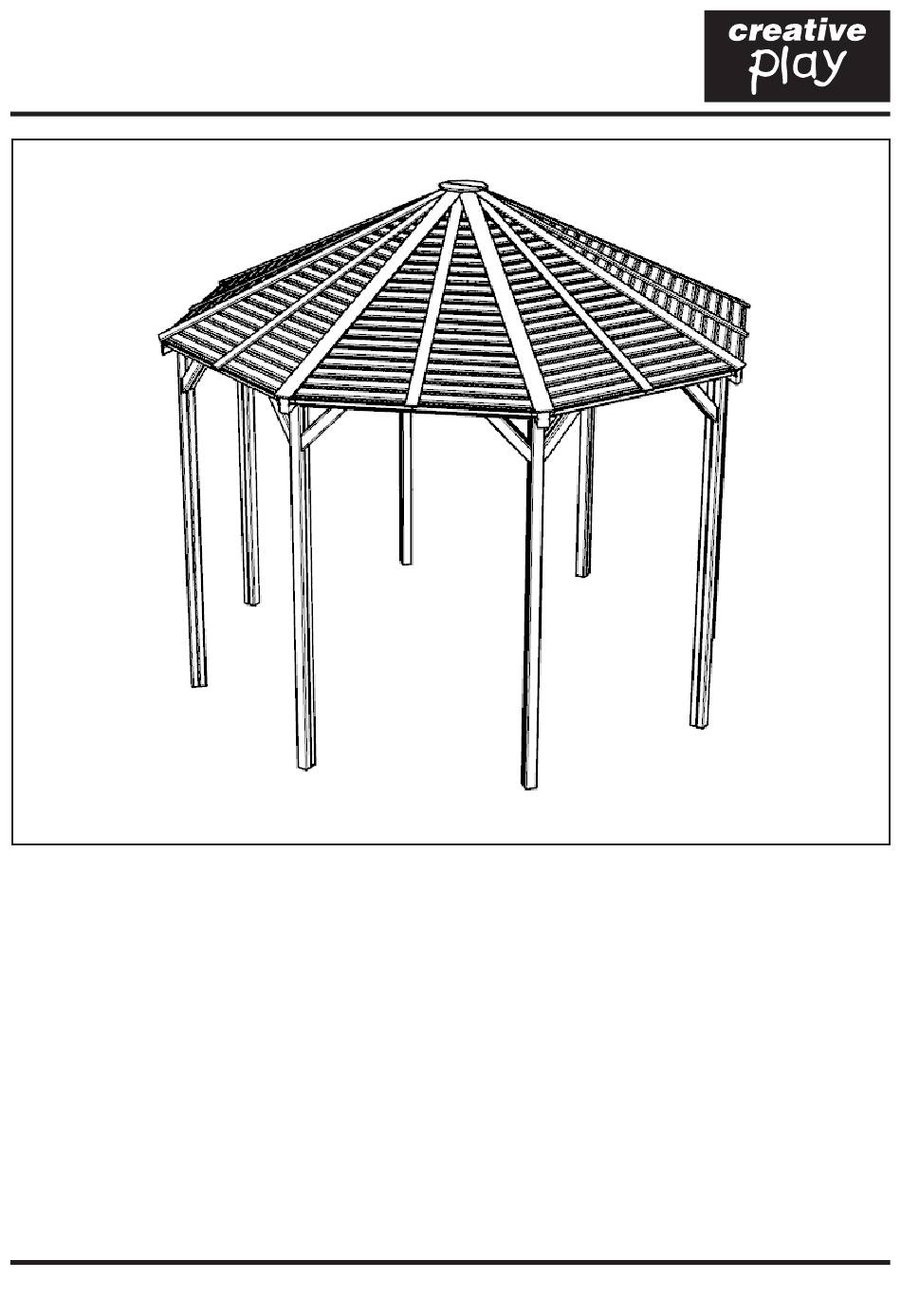

- Page 1 OS118 - OCTAVIA CANOPY (5M) Installation Instructions REF: OS118 pg 1 of 13 26.07.2019...
-
Page 2: Parts Required
PARTS REQUIRED UPRIGHT MAIN TIMBER UMT - QTY x8 UPRIGHT TIMBERS x420 97.M8X80CSK 97.M8X120CSK 97.M8X180CSK REF: OS118 pg 2 of 13 26.07.2019... - Page 3 PARTS REQUIRED ROOF TRIM / KING ‘POST’ INCLUDES RT1 - QTYx2 RT2 - QTY x1 RT3a - QTY x4 RT3b - QTY x4 RT3c - QTY x4 ROOF ASSEMBLIES RA-L & RA-R INCLUDES RA-L- QTYx8 RA-R - QTY x8 ROOF MAIN SUPPORTS RM - QTY x 8 ROOF SUPPORTS ADDITIONAL INCLUDES...
-
Page 4: Foundation Details
FOUNDATION DETAILS NOTES: POST HOLES 400MM x 400MM ENTRANCE REF: OS118 pg 4 of 13 26.07.2019... - Page 5 REF: OS118 pg 5 of 13 26.07.2019...
- Page 6 INSTALLATION INSTRUCTIONS INSTALL THE UMT TIMBERS ACCORDING TO GROUND PLAN ATTACH THE RS ROOF TIMBERS USING 2 X M8X80MM WOOD SCREW EITHER END, ENSURE TIMBERS ARE POSITIONED AS SHOWN NOTES: ENSURE TIMBERS ARE PRE-DRILLED AND COUNTERSUNK TIMBERS ARE POSITIONED LEVEL WITH THE TOP OF THE UPRIGHT TIMBER REF: OS118 pg 6 of 13...
- Page 7 INSTALLATION INSTRUCTIONS ATTACH RM TIMBERS TO KING POST (RT2) AND SCREW TO UPRIGHTS USING 2 X M8X120MM & 2 X M8X180MM WOOD SCREWS NOTES: ENSURE SCREWS ARE AS SHOWN TO RIGHT, TAKE CARE NOT TO SPLIT UPRIGHT TIMBER 2X 120MM PER TIMBER 2X 180MM SCREWS PER END REPEAT FOR THE REMAINING RM TIMBERS USING 120MM SCREWS INTO THE KING POST AND 180 SCREWS INTO THE UPRIGHT TIMBERS...
- Page 8 INSTALLATION INSTRUCTIONS SCREW THE RBA-U ROOF SUPPORTS TO THE RM TIMBERS USING - 97.M8X120CSK - QUANTITY X 10 SCREW THE RBA-L ROOF SUPPORTS TO THE RM TIMBERS USING - 97.M8X120CSK - QUANTITY X 8 / 97.M8X180CSK - QUANTITY X 2 REF: OS118 pg 8 of 13 26.07.2019...
-
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS ENSURE ALL TIMBERS ARE SCREWED INTO THE UPRIGHTS AND TOGETHER USING - BOTH 120 & 180 SCREWS NOTES: USE 180 SCREWS TO SCREW THROUGH THE LOWER & UPPER ROOF BRACE SUPPORTS ATTACH THE RA-L / RA-R ASSEMBLIES TO THE RM TIMBERS USING - 97.M8X80CSK - QUANTITY X 8 (INTO EACH RM TIMBER EITHER SIDE) RA - L RA - R... - Page 10 INSTALLATION INSTRUCTIONS SECURE THE 2 SECTIONS OF ROOF (L - R) TOGETHER USING - 97.M8X80CSK - QUANTITY X 12 MIDDLE SECTION REPEAT FOR THE REMAINING ROOF ASSEMBLIES USING - 97.M8X80CSK - QUANTITY X 28 PER ROOF PANEL RA-R RA-L RA-R RA-L REF: OS118 pg 10 of 13 26.07.2019...
- Page 11 INSTALLATION INSTRUCTIONS ATTACH THE ROOF TRIM TIMBERS USING - 97.M8X80CSK REPEAT FOR THE REMAINING ROOF ASSEMBLIES USING - 97.M8X80CSK - QUANTITY X 6 PER TIMBER RT3b RT3b RT3b RT3a RT3b RT3a RT3b RT3a RT3b RT3b RT3b RT3a NOTES: RT3b HAS A ‘ANGLE CUT TOP’ REF: OS118 pg 11 of 13 26.07.2019...
- Page 12 INSTALLATION INSTRUCTIONS ATTACH THE ROOF TRIM TIMBERS RT3c USING - 97.M8X80CSK - QUANTITY X 6 TIMBER (4 FOR THE ROOF CAP) RT3c RT3c RT3c RT3c RT3c RT3c RT3c RT3c ATTACH ROOF BRACES - LEFT / RIGHT USING - 97.M8X80CSK - QUANTITY X 4 PER TIMBER RIGHT LEFT NOTES:...
-
Page 13: Installation Complete
FURTHER SUPPORT THE ROOF USING RB-T TIMBERS USING - 97.M8X80CSK - QUANTITY X 4 PER ‘WEDGE’ NOTES: RB-T TIMBER BLOCKS SECURES / SUPPORT THE ADJOINING ROOF ASSEMBLIES INSTALLATION COMPLETE PLEASE CHECK ALL SCREWS COUNTERSUNK / NEAT SAND ANY TIMBERS AS REQUIRED REF: OS118 pg 13 of 13 26.07.2019...
