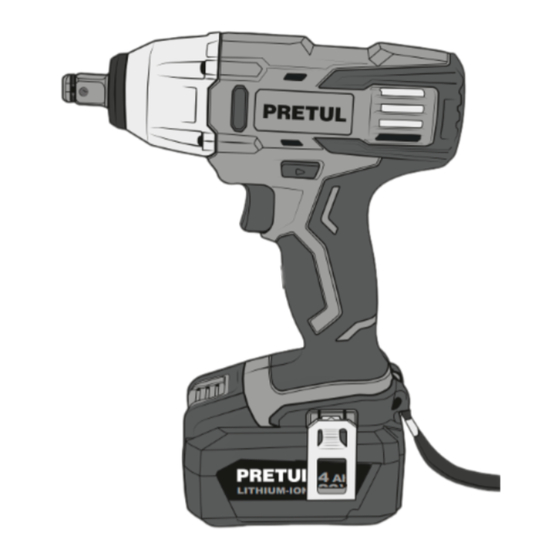

- Page 1 INSTRUCTIVE Cordless impact wrench ½ 13 mm 20 V ” Drive Applies for: Code Model 28268 LIMI-20P LIMI-20P LITHIUM-ION Read this manual thoroughly CAUTION before using the tool.
-
Page 2: Table Of Contents
Contents CAUTION Technical data Power requirements To get the most out of the tool, extend its lifespan, claim the General safety requirements warranty if necessary, and avoid for electric tools serious risks or injuries, it is essential to read this manual in Safety warnings for the use its entirety before using the tool. -
Page 3: Technical Data
Technical data LIMI-20P Code 28268 Description Cordless impact wrench Drive 1/2” Voltage 20 V Speed 0 RPM - 2 200 RPM Strokes per minute 0 beats/min - 3 000 beats/min (BPM) Rotation forward- reverse IP rating IP 20 Maximum Torque... -
Page 4: For Electric Tools
General security warnings for electric tools WARNING. Read all safety warnings and all instructions listed This allows better control of the tool in unexpected situations. below carefully. Failure to follow any of them may result in electric Dress appropriately. Do not wear loose clothing or jewelry. shock, fire, and/or serious injury. - Page 5 General safety warnings for the use of cordless impact wrenches Batteries and charger Before operating the tool DANGER • Take the necessary time to evaluate the task and ensure all • Use only the included charger for the safety precautions are observed before starting to work. battery of the tool.
-
Page 6: Parts
Parts Drive Retaining ring light Reversible mode and lock Non-slip grid selector Battery charger Handle Battery terminals Switch Battery release button Wrist strap LITHIUM-ION Battery indicator light Belt clip Battery Start up Battery charge • Connect the charger plug to a 127 V~ outlet (the green light on the charge indicator will turn on). - Page 7 Start up Considerations for battery use The battery is shipped in a DISCHARGED state by default. It is necessary to charge it for approximately 1 hour and 30 minutes before use. The normal charging temperature range is from 32 °F (0 °C) or above 113 °F (45 °C). Charging is automatically suspended outside this range until it reaches the correct temperature.
- Page 8 Start up Rotation direction • To screw, release the switch and press the rotation direction button on the side indicated by the marks. • To reverse and unscrew, press it on the opposite side. • The tool switch locks if the rotation direction button is in the middle position.
-
Page 9: Troubleshooting
Troubleshooting Problem Cause Corrective action The tool • Low battery. • Charge the battery. loses efficiency. The trigger cannot be • The rotation direction button is in the • Move the rotation direction button to pressed. lock position. forward or reverse position. The trigger can be •... -
Page 10: Notes
Notes ENGLISH LITHIUM-ION... -
Page 11: Authorized Service Centers
Authorized service centers ENGLISH... -
Page 12: Warranty Policy
Marca Brand 28268 LIMI-20P Warranty. Duration: 1 year. Coverage: parts, components and workmanship against manufacturing or operating defects, except if used under conditions other than normal; when it was not operated in accordance with the instructive; was altered or repaired by personnel not authorized by TRUPER. To make the warranty valid, present the product, stamped policy or invoice or receipt or voucher, in the establishment where you bought it or in Corregidora 35, Centro, Cuauhtémoc, CDMX, 06060, where you can also purchase parts, components,...
