Summary of Contents for Cloud M-1 Series

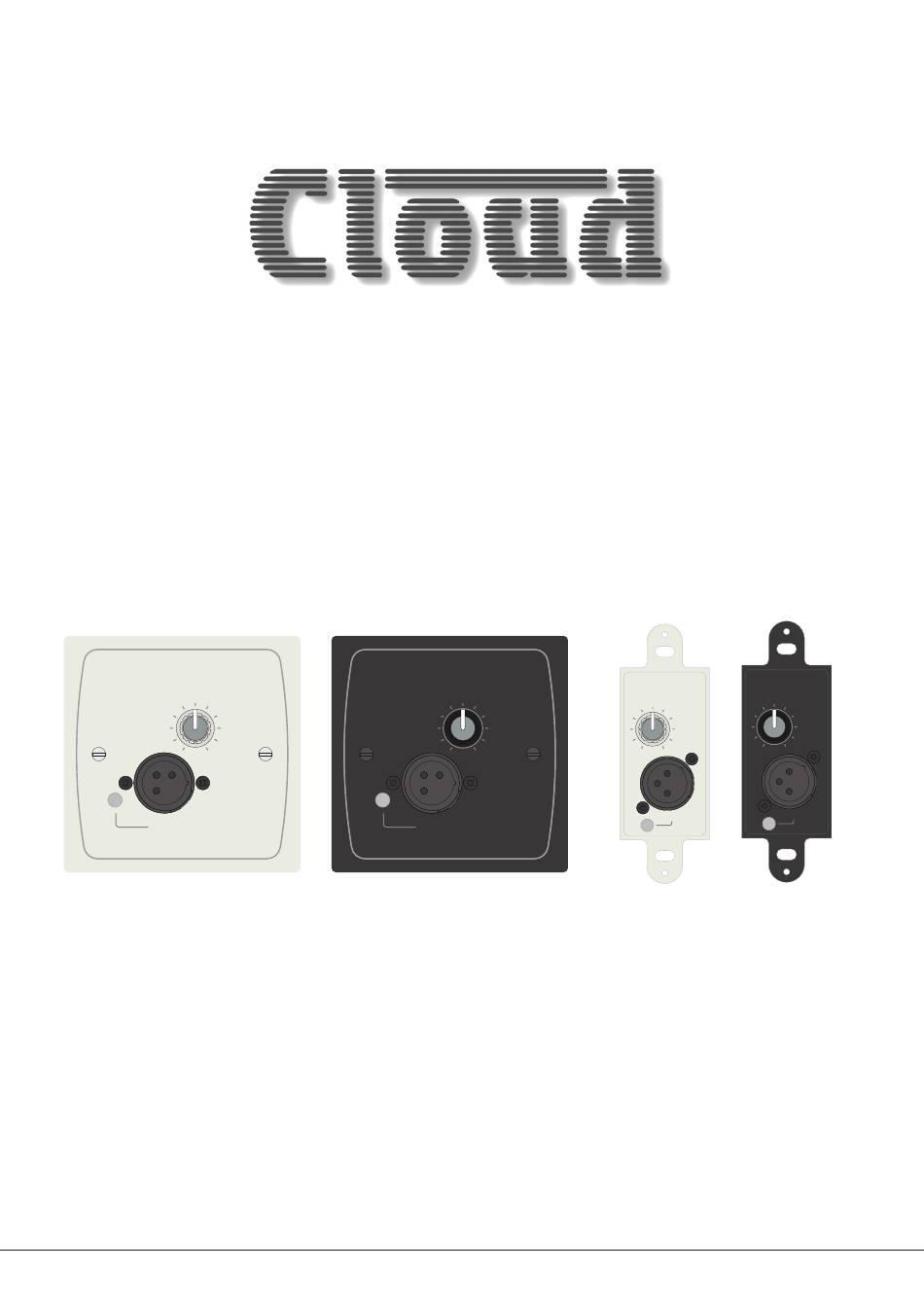

- Page 1 M-1 Series Remote Line Input Modules MIC LEVEL MIC LEVEL MIC LEVEL MIC LEVEL MIC LEVEL MIC LEVEL PRIORITY PRIORITY PRIORITY PRIORITY M-1A MIC PRIORITY MIC PRIORITY M-1A M-1A M-1A M-1W (White) M-1B (Black) M-1AW (White) M-1AB (Black) Installation Guide...
-
Page 2: Table Of Contents
Contents Introduction ................................3 Mounting - mechanical ............................3 Faceplate Controls and Connections ........................4 Block Diagram ................................4 Installation - connections ............................5 M-1 Priority Operation ................................ 6 Power considerations ................................6 M-1 Installation Guide v1.0... -
Page 3: Introduction
Mounting - mechanical M-1 (UK version) The Cloud M-1 fits a standard UK-style single-gang electrical back box. The box used should have a depth of at least 35 mm. M-1A (US version) The Cloud M-1A is compatible with Decora housings, in vertical orientation. The housing should have a depth of at least 1½”. -
Page 4: Faceplate Controls And Connections
MIC PRIORITY – pressing this button activates the host unit’s priority circuitry to ensure that the microphone is audible over any music in the zone. Block Diagram Cloud M-1 M-1 Installation Guide v1.0... -
Page 5: Installation - Connections
Installation - connections Both the M-1 and M-1A have a single PCB fitted to the rear of the faceplate. The RJ45 connector marked SK1 is mounted on the PCB. Output Output Connector SK1 Connector SK1 M-1 rear view: UK version M-1A rear view: Decora version The M-1’s SK1 connector should be connected to the host unit’s FACILITY PORT for the Zone in which it is installed* with screened Cat 5 cable and shielded RJ45 plugs. -
Page 6: M-1 Priority Operation
Zones as normal. However, if Line 6 Priority is selected for the Zone containing the M-1, and is active, the Line 6 source will still be ducked by the M-1’s Priority. As the various Cloud host units provide slightly different priority facilities, installers should consult the Installation and User Guide for the host unit if further clarification is needed. - Page 7 www.cloudusa.pro...
