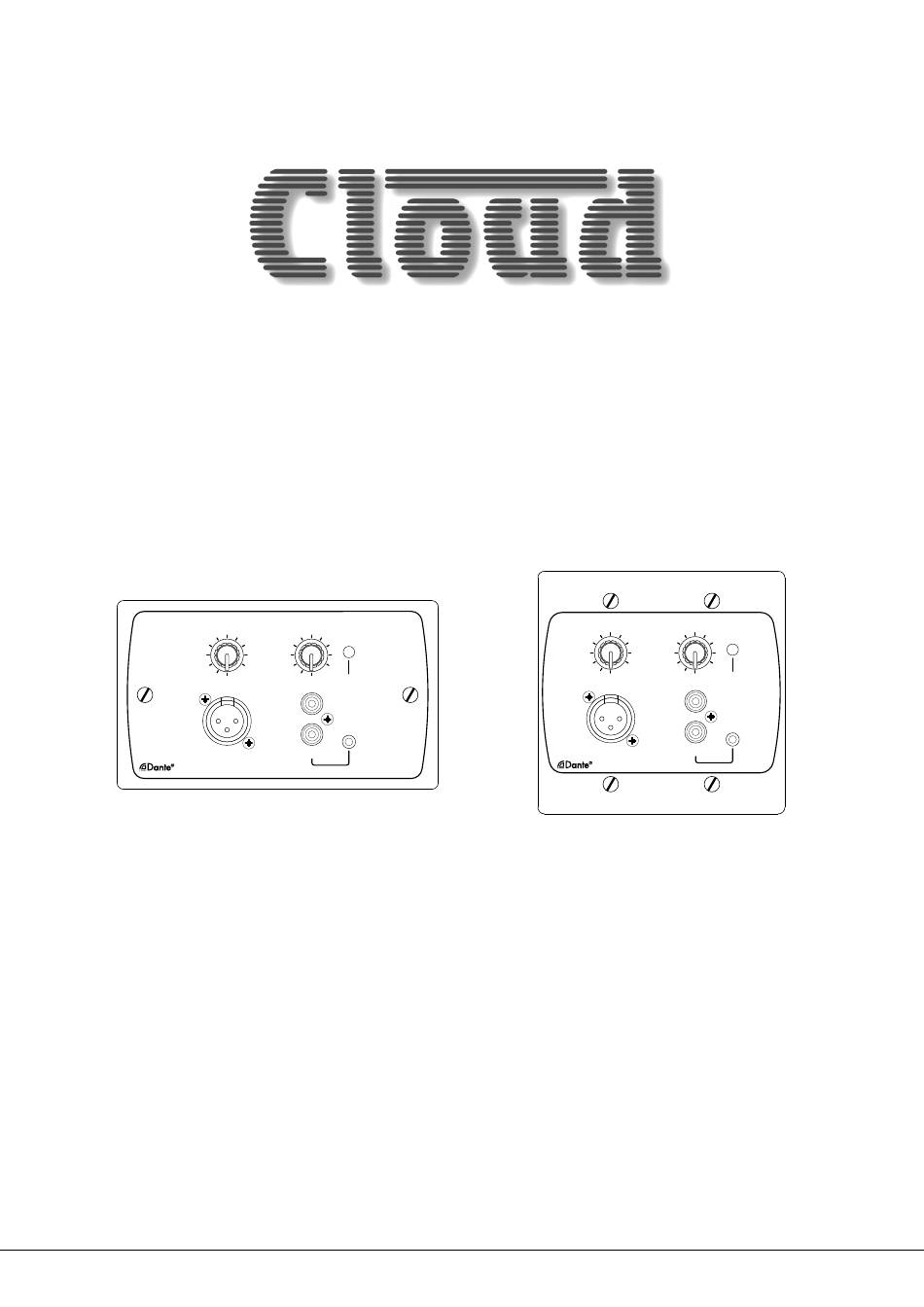

DLM-1 Series Remote Dante™
Mic/line Input Modules
MIC LEVEL
MUSIC LEVEL
6
5
7
5
4
8
4
3
9
3
2
2
10
1
1
0
MIC INPUT
LINE INPUT
DLM-W (White)
DLM-1B (Black)
6
7
8
9
10
0
MIC
PRIORITY
DLM-1
Installation Guide
MIC LEVEL
MUSIC LEVEL
6
6
5
7
5
7
4
4
8
8
3
9
3
9
2
2
10
10
1
1
0
0
MIC
PRIORITY
MIC INPUT
LINE INPUT
DLM-1A
DLM-1AW (White)
DLM-1AB (Black)
DLM-1 Series Installation Guide V1.0
Advertisement
Table of Contents
Related Manuals for Cloud Remote Dante DLM-1 Series
Summary of Contents for Cloud Remote Dante DLM-1 Series
- Page 1 DLM-1 Series Remote Dante™ Mic/line Input Modules MIC LEVEL MUSIC LEVEL MIC LEVEL MUSIC LEVEL PRIORITY PRIORITY MIC INPUT LINE INPUT MIC INPUT LINE INPUT DLM-1A DLM-1 DLM-W (White) DLM-1AW (White) DLM-1B (Black) DLM-1AB (Black) Installation Guide DLM-1 Series Installation Guide V1.0...
-
Page 2: Table Of Contents
CONTENTS Introduction ................................3 Mounting - mechanical ............................3 Faceplate Controls and Connections ........................4 Rear Controls and Connections ........................... 5 Block Diagram ................................6 Installation - connections ............................6 Network switch considerations ............................7 Power considerations ................................7 Connecting multiple DLM-1s ............................8 Local inputs ..................................10 DLM-1 Priority Operation ............................10 Technical Specifications ............................11... -
Page 3: Introduction
Dante network audio system, or other Dante-compatible The Cloud DLM-1 fits a standard UK-style dual-gang electrical networks. It is ideal for use with Cloud CDI-CA or CDI-CV back box. The box used should have a depth of at least 35 Dante input cards, to provide Dante connectivity with Cloud CA Series or CV Series multichannel power amplifiers. -
Page 4: Faceplate Controls And Connections
FACEPLATE CONTROLS AND CONNECTIONS MIC LEVEL MUSIC LEVEL PRIORITY MIC INPUT LINE INPUT DLM-1 1. MIC INPUT – 3-pin XLR3F connector for dynamic microphones. Note that the DLM-1 does not provide phantom power. 2. LINE INPUT (a) – 2 x phono (RCA) sockets for connection of sources such as CD players, audio mixers, radio mic receivers, etc;... -
Page 5: Rear Controls And Connections
REAR CONTROLS AND CONNECTIONS SETTINGS 1: MIC INPUT FILTER 2: FACTORY (NVM) 3: FACTORY (BOOT) DEFAULT 7. Ethernet port – standard RJ45 network connector. Connect the DLM-1 to a Dante-compliant network here. The connector has two LEDs: • Yellow – ON: data rate of 100 Mb/s in use (auto-negotiated with switch) OFF: data rate of 10 Mb/s in use (auto-negotiated with switch) •... -
Page 6: Block Diagram
The DLM-1’s RJ45 connector is at the rear of the module; cable access is from the left-hand side. Insert the network cable’s RJ45 plug, ensuring that it latches securely. www.cloud.co.uk This device requires power from a Power over Ethernet (PoE) switch or 802.3af compliant PoE injector. -
Page 7: Network Switch Considerations
The injector should be rated for 100Mb/s use. It can be installed “in-line” at any convenient point; its location will generally be dictated by the availability of AC power. www.cloud.co.uk This device requires power from a Power over Ethernet (PoE) switch or 802.3af compliant PoE injector. -
Page 8: Connecting Multiple Dlm-1S
The relative volume of the mic and line sources will be determined by the module’s level controls. The Dante Controller screengrab below shows a single DLM-1 (the transmitter) and a Cloud CDI-CA4 Dante input card (the receiver). In a real-world Dante network, there will be many more transmitters and receivers. Note that any Dante-compliant device (amplifier, mixer, etc.) may act as the receiver. - Page 9 This device requires power from a Power over Ethernet (PoE) switch or 802.3af compliant PoE injector. DLM1-b1c08e Serial Number MAC Address Default Name www.cloud.co.uk This device requires power from a Power over Ethernet (PoE) switch or 802.3af compliant PoE injector.
-
Page 10: Local Inputs
Local inputs When modules are “daisy-chained” together in this way, the audio signals from each module are summed together to produce a single mono feed to the host unit. Thus two (or more) microphones may be connected within a zone and either or both used as wished, with individual mic level controls at their respective modules. -
Page 11: Technical Specifications
252 g (8.9 oz) All versions Shipping weight 350 g (12.3 oz) Should you have any questions concerning the installation and connection of the DLM-1, please visit www.cloud.co.uk/resources, where you will find additional technical information. DLM-1 Series Installation Guide V1.0... - Page 12 Audinate® is a registered trademark of Audinate Pty Ltd. Dante™ is a registered trademark of Audinate Pty Ltd. www.cloud.co.uk www.cloudusa.pro...
