Summary of Contents for Frigidaire Gallery FDB836GFS2

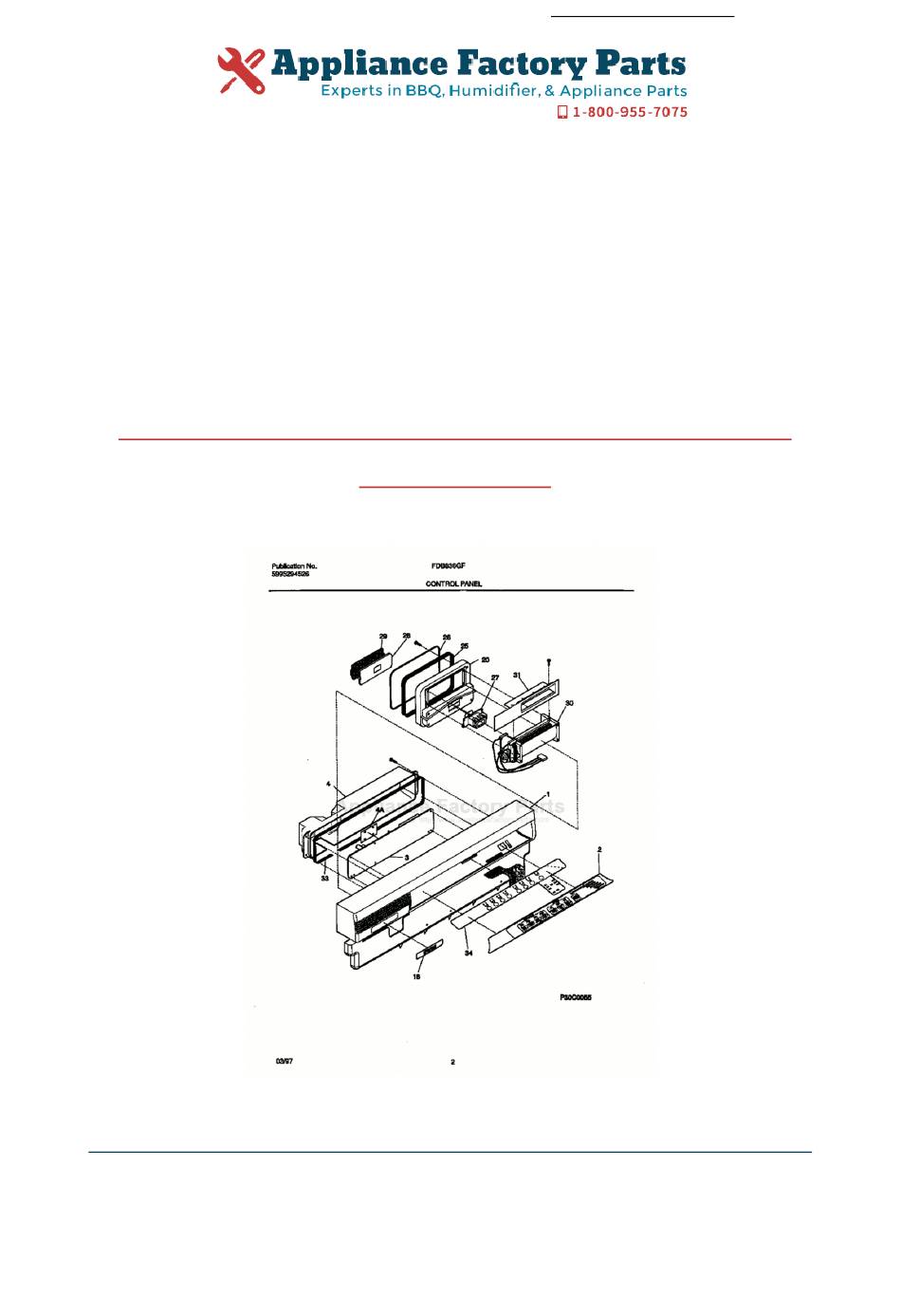

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Electrolux FDB836GFS2 Owner's Manual Shop genuine replacement parts for Electrolux FDB836GFS2 Find Your Electrolux Dishwasher Parts - Select From 406 Models -------- Manual continues below --------...
  • Page 2: Table Of Contents

    Consumer Services Model #: Warranty & Service ......17-18 Versión en español ......17 Serial #: (see Features page for location) Questions?1-800-944-9044 (United States) 1-800-661-9913 (Canada) Visit Frigidaire Company's Web Site at http://www.frigidaire.com READ AND SAVE THESE INSTRUCTIONS P/N 154314302 (9704)
  • Page 3: Instructions

    Important Safety Instructions • Use only detergents and rinse agents recommended for use in a dishwasher. This symbol will help alert you to such • Store dishwasher detergent and rinse agents out of the reach of children. dangers as personal injury, burns, fire and electrical shock.
  • Page 4: Features

    Dishwasher Features Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces. Each cycle begins with a pre-drain. Next, the dishwasher fills with water covering the filter area. Water is then pumped through the filter and spray arms. Soil particles go down the drain as the water is pumped out and replaced with clean water.
  • Page 5: Normal Operating Sounds

    Operating Instructions Vent Latch Very Important Getting Started Information— 1. Load dishwasher (See Preparing and Loading Read Before Dishes). Operating Your Dishwasher! 2. Add detergent (See Dishwasher Dispenser & Detergents). 3. Add rinse aid, if needed (See Rinse Aid). Normal Operating 4.
  • Page 6: Operating Instructions

    Operating Instructions (continued) light above the pad will come on and remain on Pots Pans until end of cycle. To turn off the HI-TEMP WASH (106 minutes) (2 washes, 5 rinses, dry) option, press the pad a second time. The light (8.4 gallons) (7.0 imp.
  • Page 7: Preparing And Loading Dishes

    Preparing and Operating Instructions Loading Dishes (continued) Dish Preparation Status Indicator Lights Scrape away large pieces of food, bones, pits, toothpicks, etc. The continuous filtered wash When the ADD-A-DISH light is on, you can system will remove remaining food particles. add additional items.
  • Page 8 Preparing and Loading Dishes (continued) Loading the Top Rack Upper Rack Option Important: Do not cover the funnel when SHORT WASH—UPPER RACK option can be loading. used to wash a wide assortment of items when The upper rack is designed for flexibility in you don't have a full load.
  • Page 9 Preparing and Loading Dishes (continued) Utility Basket Loading the Bottom Rack The utility basket has two dividers that can be The lower rack is best for plates, saucers, opened to hold longer items or closed for small bowls and cookware. Large items should be items like measuring spoons, bottle stoppers, placed along the edge so they don't block the etc.
  • Page 10 Preparing and Loading Dishes (continued) Loading the Silverware Adding a Dish Basket To add or remove items after wash cycle starts: Mix spoons, forks and knives to prevent • Unlatch door and wait a few seconds until nesting. Mixing items gives better cleaning and wash action stops before opening.
  • Page 11: And Detergents

    Dishwasher Dispenser & Detergents • Use only fresh automatic dishwashing Filling the Detergent Dispenser detergent. Other types will cause The detergent dispenser has one covered and oversudsing. one uncovered cup. Detergent in the • Add detergent just before starting cycle. uncovered cup falls into the dishwasher when •...
  • Page 12: Dishwasher Dispenser

    Dishwasher Factors Affecting Dispenser & Performance Detergents (continued) Water Pressure Rinse Aid The hot water line to dishwasher must provide Rinse aid greatly improves drying and reduces water spots and filming. Water water pressure between 20 and 120 psi. Low water pressure may occur when laundry or "sheets"...
  • Page 13: Care And Cleaning

    Care and Cleaning Overfill Protector keeps dishwasher — from overfilling and is located in the left front corner of the tub. Burn Hazard • Clean occasionally with household cleaner Allow heating element to cool containing vinegar or bleach to dissolve before cleaning the interior.
  • Page 14 Care and Cleaning (continued) Property Damage Hazard Freezing temperatures may cause water lines to rupture. Be sure all supply lines to and circulating lines within dishwasher are protected. Failure to do so could result in property damage. Winterizing A dishwasher left in an unheated place should be protected from freezing.
  • Page 15: Solutions To Common Dishwashing Problems

    Solutions to Common Dishwashing Problems Factors Affecting Performance.) Before calling for service, review this list. It • Avoid overloading and improper loading. may save you both time and expense. This (See Preparing and Loading Dishes.) list includes common experiences that are •...
  • Page 16 Solutions to Common Dishwashing Problems (continued) Vapor at Vent Etching • Water vapor escapes from the vent when the • Using too much detergent in soft or softened dishwasher goes into the drying part of cycle. water causes this film that cannot be This is normal.
  • Page 17 Solutions to Common Dishwashing Problems (continued) Removing Spots and Film Hard water can cause lime deposit buildup on the interior of the dishwasher. Dishes and glasses may also get spots and film for a number of reasons. (See Glassware/Flatware Spotted or Cloudy section.) To remove buildup, spots and film, clean using the following instructions: 1.
  • Page 18: Consumer Services

    (Tub and Door Liner) For twenty years from date of purchase, properly connected and grounded to a power supply of Frigidaire Company will provide a replacement tub or door liner if sufficient voltage. the original tub or door liner fails to contain water because of a •...
  • Page 19 The warrantor however reserves the right to charge transportation and travelling costs for distances in excess of 48 kilometres (30 miles) from the nearest FRIGIDAIRE PARTS AND SERVICE authorized service depot.
  • Page 20 Notes...
  • Page 21 Notes...
