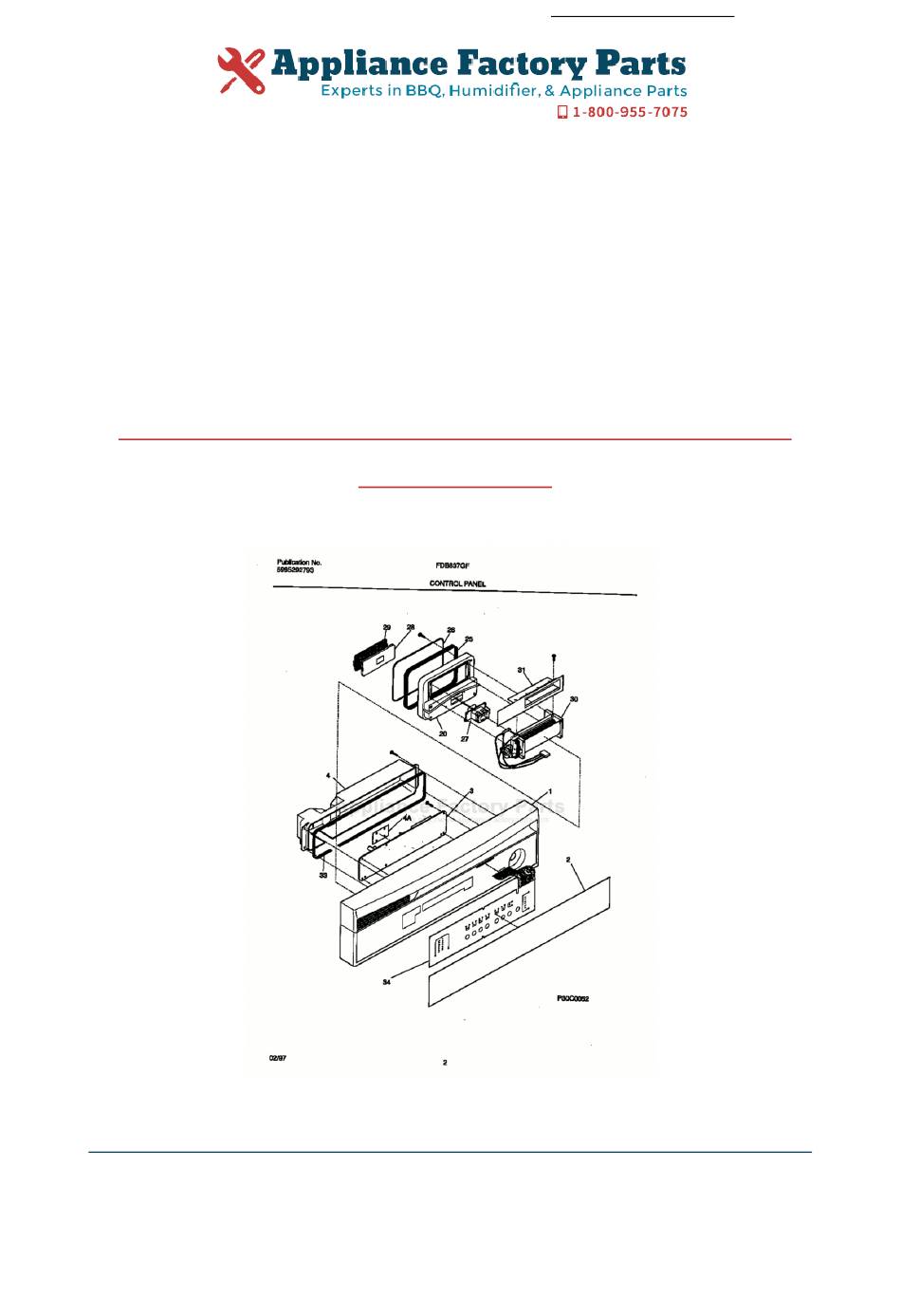

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Electrolux FDB837GFR0 Owner's Manual Shop genuine replacement parts for Electrolux FDB837GFR0 Find Your Electrolux Dishwasher Parts - Select From 406 Models -------- Manual continues below --------...
-
Page 2: Table Of Contents
15-17 Serial #: Consumer Services (see Features page for location) Warranty & Service ......18-19 Questions?1-800-944-9044 Versión en español ......18 (United States) 1-800-661-9913 (Canada) Visit Frigidaire Company's Web Site at http://www.frigidaire.com READ AND SAVE THESE INSTRUCTIONS P/N 154255802 (9703) -
Page 3: Instructions
Important Safety Instructions • Use only detergents and rinse agents recommended for use in a dishwasher. This symbol will help alert you to such • Store dishwasher detergent and rinse dangers as personal injury, burns, fire and agents out of the reach of children. electrical shock. -
Page 4: Features
Dishwasher Features Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces. Each cycle begins with a pre-drain. Next, the dishwasher fills with water covering the filter area. Water is then pumped through the filter and spray arms. Soil particles go down the drain as the water is pumped out and replaced with clean water. -
Page 5: Normal Operating Sounds
Operating Instructions Vent Latch Very Important Getting Started 1. Load dishwasher (See Preparing and Loading Information— Read Before Dishes). Operating Your Dishwasher! 2. Add detergent (See Dishwasher Dispenser & Detergents). 3. Add rinse aid, if needed (See Rinse Aid). Normal Operating 4. -
Page 6: Operating Instructions
Operating Instructions (continued) When HI-TEMP WASH option is selected, the Pots Pans light above the pad will come on and remain on (115 minutes) (2 washes, 5 rinses, dry) until end of cycle. To turn off the HI-TEMP (8.4 gallons) (7.0 imp. gallons) (31.8 liters) WASH option, press the pad a second time. -
Page 7: Preparing And Loading Dishes
Preparing and Operating Instructions Loading Dishes (continued) Dish Preparation Status Indicator Lights Scrape away large pieces of food, bones, pits, When the ADD-A-DISH light is on, you can toothpicks, etc. The continuous filtered wash add additional items. system will remove remaining food particles. Burned-on foods should be loosened before The WASHING light comes on at the loading. - Page 8 Preparing and Loading Dishes (continued) Upper Rack Option Loading the Top Rack (available select models) Important: Do not cover the funnel when SHORT WASH—UPPER RACK option can be loading. used to wash a wide assortment of items The upper rack is designed for flexibility in when you don't have a full load.
- Page 9 Preparing and Loading Dishes (continued) Utility Basket (available select models) The utility basket has two dividers that can be opened to hold longer items or closed for small items like measuring spoons, bottle stoppers, etc. The covers on each end can be folded down out of the way or closed to keep small items inside.
- Page 10 Preparing and Loading Dishes (continued) Adding a Dish Loading the Silverware To add or remove items after wash cycle Basket starts: Mix spoons, forks and knives to prevent • Unlatch door and wait a few seconds until nesting. Mixing items gives better cleaning and wash action stops before opening.
-
Page 11: And Detergents
Dishwasher Dispenser & Detergents • Use only fresh automatic dishwashing Filling the Detergent Dispenser detergent. Other types will cause The detergent dispenser has one covered and oversudsing. one uncovered cup. Detergent in the • Add detergent just before starting cycle. uncovered cup falls into the dishwasher when •... -
Page 12: Dishwasher Dispenser
Dishwasher Factors Affecting Dispenser & Performance Detergents (continued) Water Pressure Rinse Aid Rinse aid greatly improves drying and The hot water line to dishwasher must provide reduces water spots and filming. Water water pressure between 20 and 120 psi. Low water pressure may occur when laundry or "sheets"... -
Page 13: Care And Cleaning
Care and Cleaning Overfill Protector keeps dishwasher from — overfilling and is located in the left front corner of the tub. Burn Hazard • Clean occasionally with household cleaner Allow heating element to cool containing vinegar or bleach to dissolve before cleaning the interior. - Page 14 Care and Cleaning (continued) Property Damage Hazard Freezing temperatures may cause water lines to rupture. Be sure all supply lines to and circulating lines within dishwasher are protected. Failure to do so could result in property damage. Winterizing A dishwasher left in an unheated place should be protected from freezing.
-
Page 15: Changing Color Panels
Changing Color Panels STEP 1 Cut Hazard Metal door panels are sharp and should be handled with care. Wear gloves to protect Color hands. Panel(s) Failure to do so can result in injury. Some models come with reversible door panel Bottom inserts which offer three decorative colors. -
Page 16: Solutions To Common Dishwashing Problems
Solutions to Common Dishwashing Problems Factors Affecting Performance.) Before calling for service, review this list. It • Avoid overloading and improper loading. may save you both time and expense. This (See Preparing and Loading Dishes.) list includes common experiences that are •... - Page 17 Solutions to Common Dishwashing Problems (continued) Etching Vapor at Vent • Using too much detergent in soft or •Water vapor escapes from the vent when the softened water causes this film that cannot dishwasher goes into the drying part of be removed.
- Page 18 Solutions to Common Dishwashing Problems (continued) Removing Spots and Film Hard water can cause lime deposit buildup on the interior of the dishwasher. Dishes and glasses may also get spots and film for a number of reasons. (See Glassware/Flatware Spotted or Cloudy section.) To remove buildup, spots and film, clean using the following instructions: 1.
-
Page 19: Consumer Services
Appliance must be (Tub and Door Liner) For twenty years from date of purchase, Frigidaire Company will provide a replacement tub or door liner if properly connected and grounded to a power supply of the original tub or door liner fails to contain water because of a sufficient voltage. - Page 20 The warrantor however reserves the right to charge transportation and travelling costs for distances in excess of 48 kilometres (30 miles) from the nearest FRIGIDAIRE PARTS AND SERVICE authorized service depot.
- Page 21 Notes...
