Store More SMS-08-V45 Assembly Manual

High-Density Wire Shelving Assembly Guide
See page 2 for Double-Deep Skates. See page 3 for Track Systems.
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING CARRIER FOR ANY
. SAVE YOUR BOX AND ALL PACKING MATERIALS.
DAMAGE
FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.

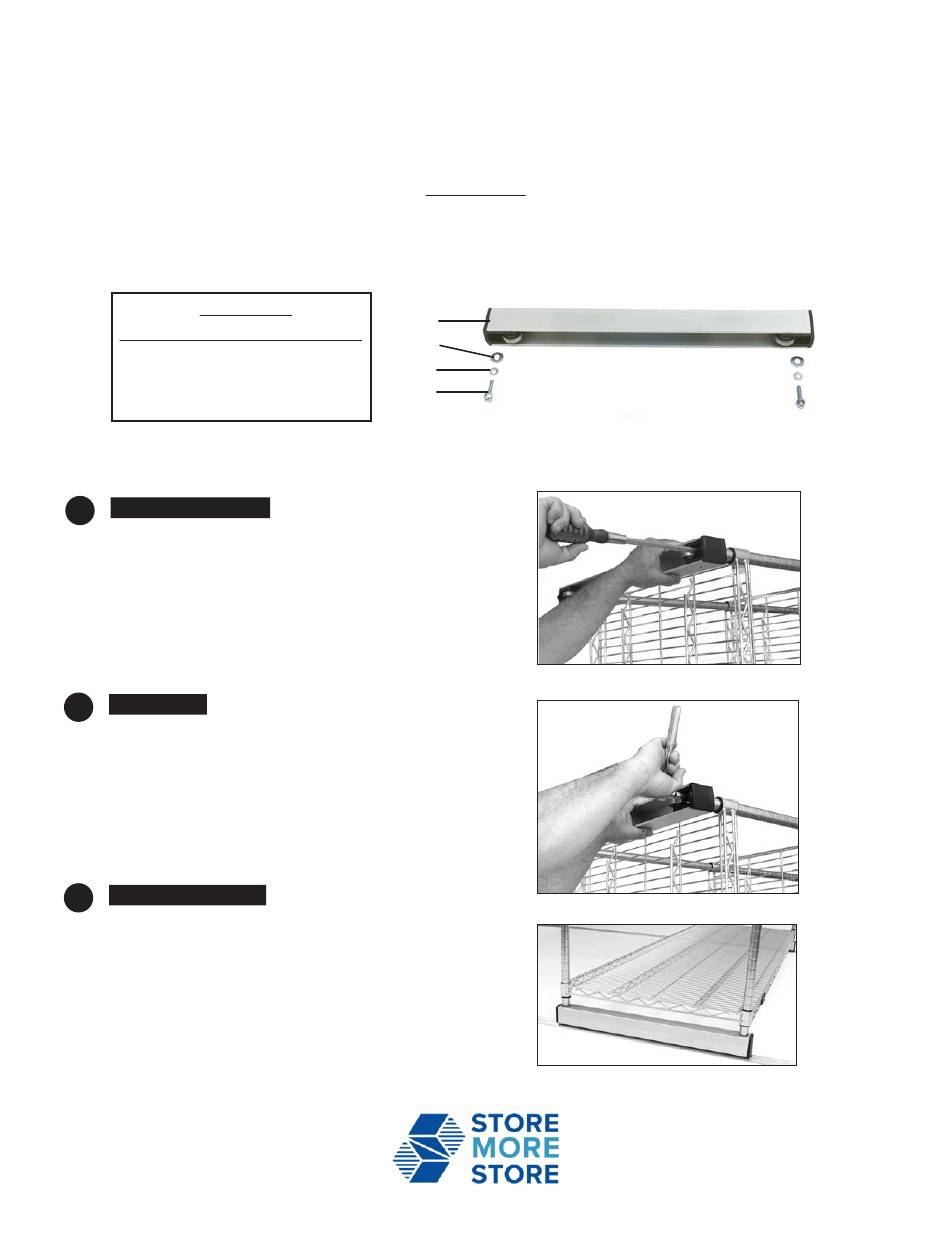

Parts List
item qty description
A. . . . . . . 2. . . . . skate
B. . . . . . . 4. . . . . 3 ⁄
8
C. . . . . . . 4. . . . . ⁄
3
8
D . . . . . . 4. . . . . 3 ⁄
8
2
NOTE: READ ALL INSTRUCTIONS PRIOR TO ASSEMBLY.
Shelving Unit
1
Assemble wire shelving unit. Bottom shelf must be mounted
on the third groove from bottom of posts. Remove leveling
bolt from bottom of each post.
To use donut bumpers, please note: The position of bottom
shelf should accommodate donut bumpers. Place donut
bumpers so that they remain on top of skate.
Skate
2
Align skates (A) top holes with bottom of post. Use a
washer (B) with lock washer(C) and a
(D) to screw through skate bottom into post plug. Use a flat
head screw driver to start assembly as shown in figure 1.
Repeat on opposite side. Tighten bolts with a ratchet, small
extension and 9 ⁄ ˝ socket as shown in figure 2.
1 6
Mobile Units
3
Place mobile unit on track making certain the wheels fall within
the groove of the track. Make sure unit slides freely back and
forth on length of the track as shown in figure 3.
Note: Shelving Unit Loading Instructions: Always position
heaviest items on lowest shelf. Distribute load evenly on each
shelf.
CAUTION: will tilt if not loaded properly. Load bottom first!
SMS-08-V45
C
˝ flat washer
˝ lock washer
D
˝ slotted hex bolt x 2˝
3 ⁄ ˝ -16 NC x 2˝ long bolt
8
StoreMoreStore.com | 855-786-7667 | sales@storemorestore.com
