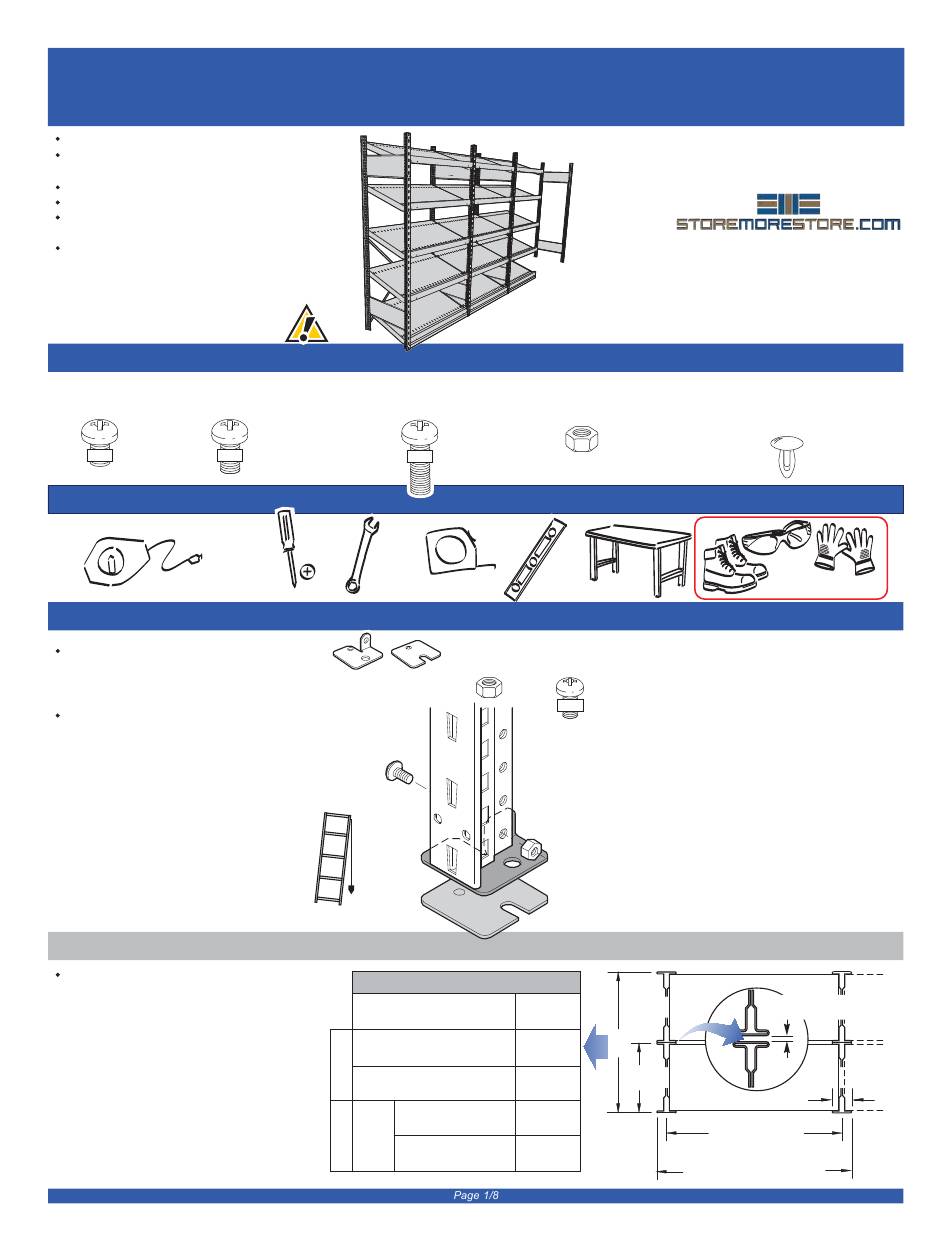

Store More Sloped Shelf Shelving Assembly Manual

All required hardware is included.
Please check the contents with your
packing slip.
Read instructions carefully.
Save this document for future reference.
Two people are required for the assembly.
The sloped shelves must not be used
with shelving over 99" in height or with
mezzanines.
Hardware
Some of the illustrated hardware is only supplied with optional components.
1/4-20 bolts 1/4-20 bolts
7/16" 5/8"
Tools Required
Phillips #3
Chalk line
Set-up
Check the leveling of the floor in order to
determine the critical areas. Use floor
anchor plates and shim plates to level
the shelving units.
Make sure that no obstacle nor electrical
wiring comes in contact with the
structure.
Recommendation:
Plumbness:
The shelving must be installed with a
maximum tolerance from the vertical of
1/2" inch in 10 feet of height.
Floor plates must be anchored if more
than one shim is used.
Overall Dimensions
It is recommended to lay out shelving
positions on the floor with a chalkline
before beginning the installation.
Sloped Shelf Shelving
Assembly Guide
1/4-20 bolts
1"
7/16"
1/4-20 nuts
Anchor
Shim
1x
Plate
Depths
nominal dimension
18", 24"
A
30, 36"
with back panels
24"
B *
30"
36"
with back braces
48"
www.StoreMoreStore.com | 855-786-7667
1/4-20 nuts
1/4-20 bolts
1x
5/8"
real dim.
nominal
B*
+ 1/4"
nominal
A
+ 9/16"
nominal
+ 1/2"
nominal
+ 9/16"
Nominal width + 1 5/8"
Nylon clip
Outils requis
Cut-resistent gloves
with back braces
1/16''
1 5/8"
30", 36", 42", 48"
Nominal widths
