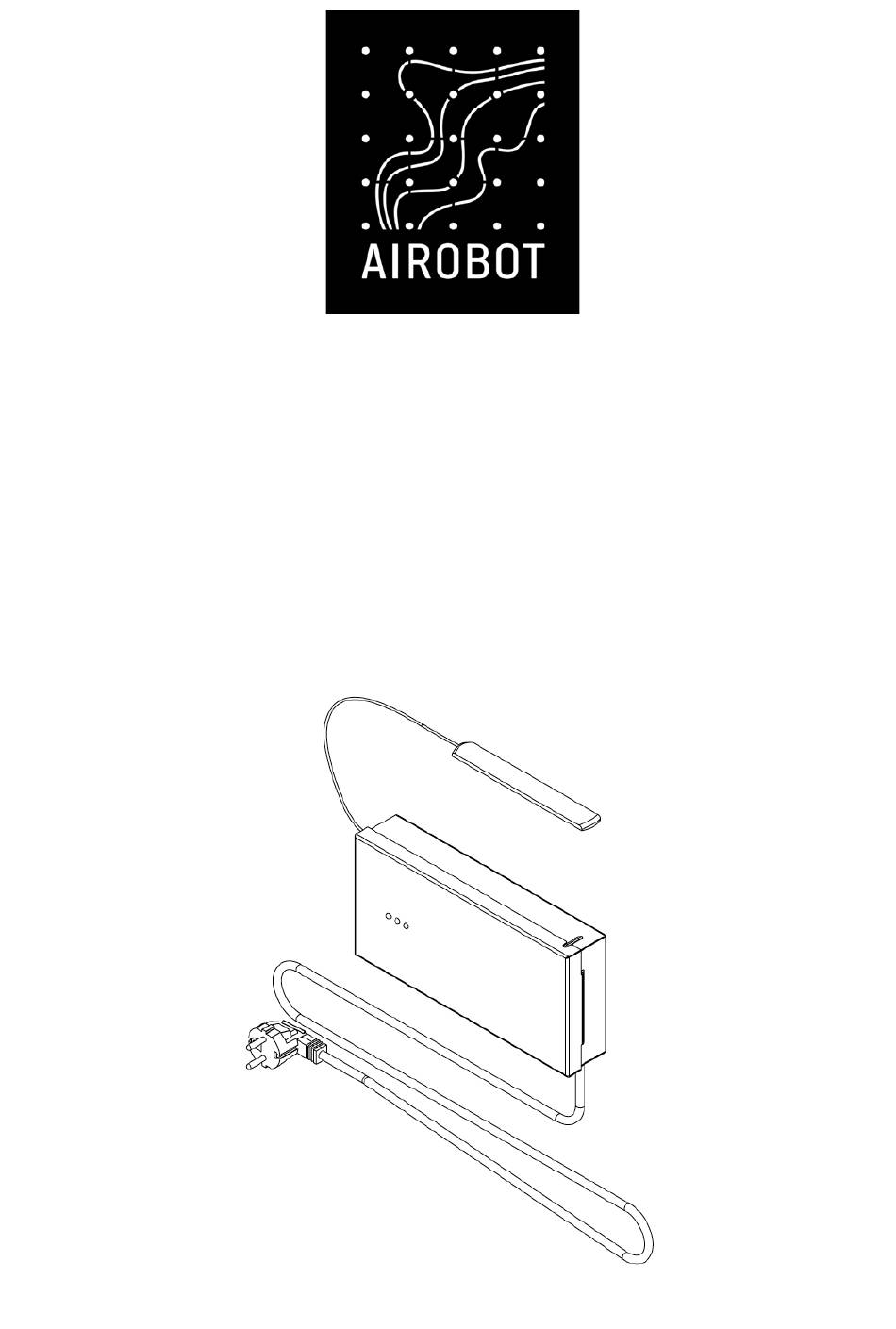

  • Page 1 Installation and user manual Airobot underfloor heating and cooling control automation 24 V Room controller A-HC-RC1 Room sensor SE1...
  • Page 2: Table Of Contents

    Contents Use ..........13 Setup and room sensor menu ..14 Features and capabilities ....3 Features .......... 16 Installation ........4 Underfloor heating and cooling ..... 16 Home, Away and Boost (boost) modes ..16 Room controller ..........4 Connection to the ventilation unit (for air quality Room sensors ..........
  • Page 3: Features And Capabilities

    House automation compatibility: local API and Modbus TCP (coming over the air in 2025 with an upgrade) • Transmission of carbon dioxide CO readings to Airobot ventilation unit for air quality control of air flow • Automatic or manual change of heating and cooling mode •...
  • Page 4: Installation

    Installation Room controller The room controller is usually installed in the manifold cabinet, is attached to the DIN rail, and can be installed both vertically and horizontally. Make sure that the room controller is not exposed to liquids, high humidity or hot sources. For attaching the DIN rail to the wall, select the appropriate means of fastening according to the type of wall, they are not included.
  • Page 5: Connect

    • Attach the room sensor to the wall adapter Remove: If it is necessary to remove the panel, then insert the end of the thin screwdriver between the wall adapter and the front panel (the hole is located in the bottom center) to a depth of about 2-3 cm and, gently bending, it should deattach.
  • Page 6: Circulation Pump Control

    24 V NC (normally closed) type actuators shall be used. Connect: • Connect the brown wire to the "+" connector of the room controller • Blue wire to the "–" connector of the room controller. • It is allowed to connect only one actuator under one connector. Placement of the actuator should be carried out in accordance with the planned zones.
  • Page 7: Public Gpi Input (Automatic Activation Of Floor Cooling)

    General GPI input (automatic activation of floor cooling) The room controller can be switched to floor cooling mode automatically by sending a potential-free signal (normally open) from the heat pump. • Carry a 2-core cable (max. 0.75 mm²) from the heater to the room controller and connect it to the GPI input in the room controller.
  • Page 8: Initial Setup

    Initial setup Pairing room sensors and creating zones Once the connection between the room sensors and the room controllers is established, follow these steps and create zones that each room sensor will control. Before setting up, it is recommended to fill in the "Setup table", which can be found at the end of the instruction manual.
  • Page 9 Step 4 – Select the zone control method and zones The option is displayed only if Water (Hydronic): • in step 3 "Set up electric floor The zone has only water underfloor heating heating" the option was "Yes" • Control is carried out with heating actuators and the control method was Electricity (Electric): "Floor sensor"...
  • Page 10: Actuator Testing

    The figure shows the open position of the Airobot actuators. If you are using actuators from another manufacturer, read their instructions to understand if the actuator is open. If the actuator does not open, see the section "Error messages and...
  • Page 11: Connect To The Internet Network

    "Airobot-Room-Controller-XXXXX" and connect your smart device to this network. 5. Once the connection is established, open a web browser and type in the address bar: http:// airobot-room-controller.local or http://192.168.4.1 or scan the QR code: 6. The room controller setup page should open §...
  • Page 12: Mobile App

    • Try setting up with a laptop or a smartphone from another manufacturer If the network name "Airobot-Room-Controller-XXXXX" is not displayed: • Maybe the room controller's Wi-Fi network isn't visible – press the Wi-Fi button to make the network visible.
  • Page 13: Use

    Main view: Heat icon: heating request Electric icon: electrical Air temperature floor heating requested Snow icon: cooling Floor icon: displayed when requested measuring through a floor sensor Carbon dioxide CO2 Only on certain models Relative humidity % Air quality assessment Only for certain models Select a setting point In heating mode: When the actual air temperature drops below the setpoint, the thermostat begins to request heating.
  • Page 14: Setup And Room Sensor Menu

    Setup and room sensor menu To access installer menu, it is required to hold OK button for 3 seconds on the „Installer“ menu item. Mobile app QR code to add to the room controller mobile app is displayed Settings Display Language English Estonian...
  • Page 15 option, it is necessary to connect the floor sensor to the room sensor. Floor application Water (Hydronic): • The zone has only water underfloor heating • Control is carried out with heating actuators Electric: • the zone has only electric underfloor heating •...
  • Page 16: Features

    Connection is only possible with Airobot devices produced from 07.2021 (ID/SN number starting with V02..). By connecting the room controller to the Airobot ventilation unit, it is possible to transmit the CO2 reading of the room sensors to the ventilation unit. The ventilation unit monitors the CO2 readings of the room sensors and increases the ventilation rate if in some rooms the reading rises above the set limit to bring the CO2 level down.
  • Page 17: Room Sensor Replacement

    To restore, press and hold the FUNCTION button on the room controller for 15 seconds. In case of successful recovery, all LED lights will turn red for a while, and the language option or the Airobot logo will reappear on the screen of the room sensors connected to the room controller.
  • Page 18 Error message: The room sensor is not connected to the room controller Possible causes: • Cabling error – Check the connections of the A and B wires between both the room sensor and the room controller. • Factory Settings: In rare cases, when restoring factory settings, the factory settings of the room sensor may remain.
  • Page 19: Specifications, Dimensions And Annexes

    Pipe temperature sensor for room controller, length 1 meter, NTC 10 A-HC-A24 Actuator for underfloor heating room controller with 24 V, M30 x 1.5 adapter Specifications: Model A-HC-RC1 Maximum number room sensors Tax on heating zones. number Connectivity to room sensors 4-core low-current cable, from 0.22 mm...
  • Page 20: Electrical Diagram Of The Room Controller

    On the room controller, the exact markings are indicated, in which locations exactly each plug is located. Connecting Designation Explanation terminals +Ve (24 V) T1, T2, T3, T4, T5, T6 AIROBOT room sensors A-SE1-* ZONE1, ZONE2, ZONE3, Actuators 24 V DC NC (normally closed) ZONE4, ZN5, ZN6, ZN7, ZN8 NTC1 NTC1 10kW NTC pipe temperature sensor...
  • Page 21 Models: Model Connection Air quality measurement Colour with a CO2 sensor SE1-W Wired White SE1-W-AQ Wired White SE1-B Wired Black SE1-B-AQ Wired Black Extras to the room sensor Product Description A-HC-SFL10K Floor sensor for room sensor or thermostat, length 3 meters, NTC 10 kW A-HC-R2416 External relay (24V) for controlling electric floor heating.
  • Page 22: Setup Table

    Setup table We recommend filling in the table below at the moment of connecting the actuators and room sensors. The product packaging comes with stickers with the appropriate marking to help you fill the table. The table will later make it easier to perform the initial setup and monitor the correctness of the settings.
  • Page 23: Warranty Terms

    Warranty terms Warranty duration: Airobot room controller, sensors and accessories are covered by the manufacturer's warranty for 2 years from the date of purchase. The warranty period is designed to cover any defects in materials or workmanship that may occur during normal use. To ensure the validity of the warranty, a proof of purchase is required, in its absence, the date of production of the product.
  • Page 24: Support And Contact

    We are grateful for any feedback on the use and characteristics of the device. Please send your opinions and questions to: info@airobothome.com. Manufacturer details AIROBOT TECHNOLOGIES AS Reg. No. 16405978 Suur-Sõjamäe 37a, Rae vald, 75322, Estonia info@airobothome.com Customer support and guides www.airobothome.com/abi...
