Summary of Contents for Red Heating REN AIR 6 S1

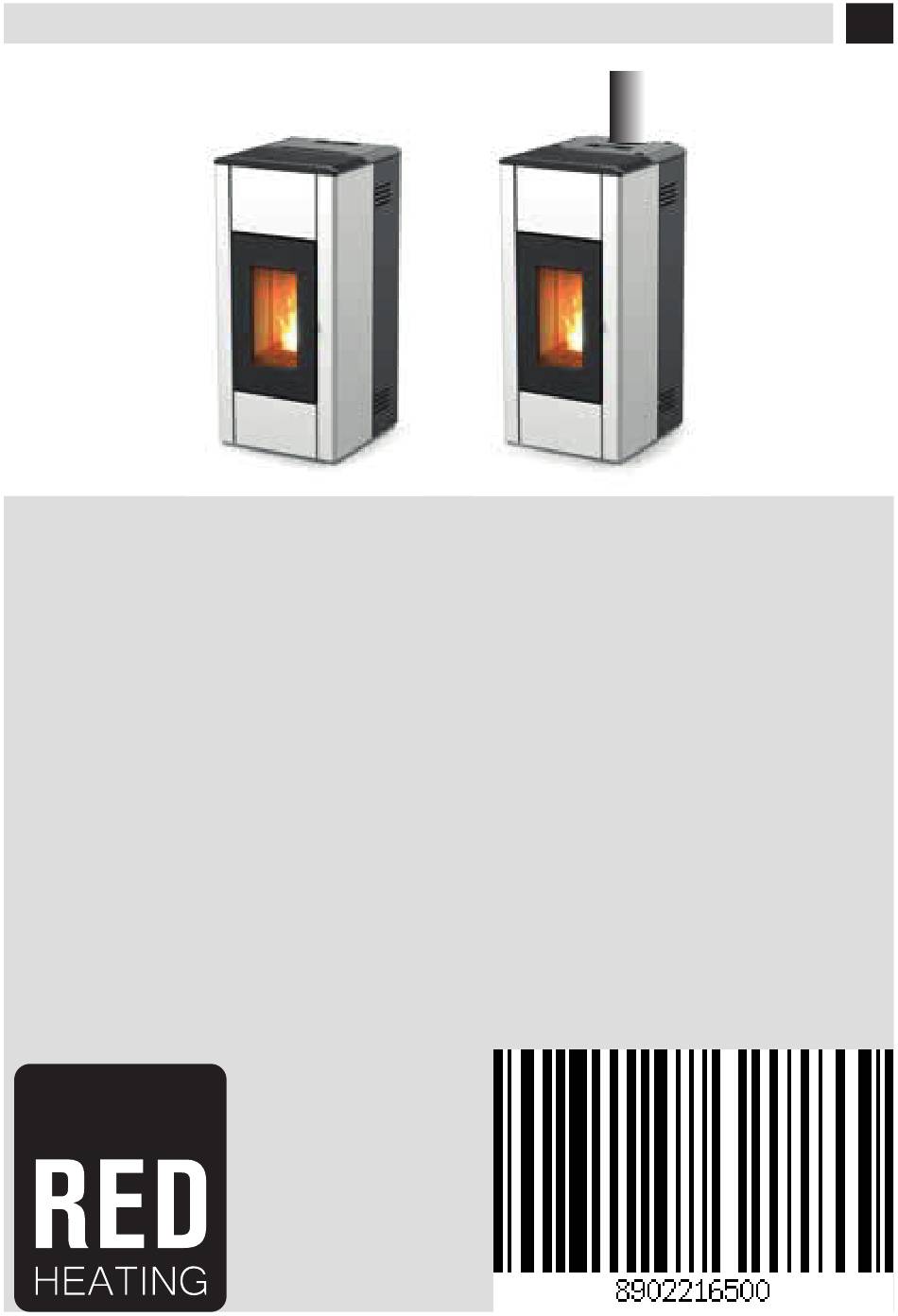

- Page 1 INSTALLATION GUIDE SEALED PELLET STOVE REN AIR 6 S1 REN AIR 6 XUP! S1 REN AIR 8 S1 REN AIR 8 XUP! S1 PART 1 - REGULATIONS AND ASSEMBLY Translation of original instructions...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS ....................II INTRODUCTION ......................1 1-WARNINGS AND WARRANTY CONDITIONS ..............2 2-INSTALLATION .......................11 3-DRAWINGS AND TECHNICAL SPECIFICATIONS ............19 4-UNPACKING ......................27 5- SMOKE OUTLET .....................30 6-INSTALLATION AND ASSEMBLY ................33 7-OPENING THE DOORS .....................46 8-EASY CONNECT ......................47 9-LOADING THE PELLETS ...................51 10-ELECTRICAL CONNECTION ..................52... -
Page 3: Introduction
INTRODUCTION Dear Customer, Our products are designed and manufactured in accordance with standards in force, with high quality materials and using our extensive experience in the transformation processes. To get the best performance, we suggest you read the instructions in this manual carefully. This installation guide is an integral part of the product: ensure that the manual is always supplied with the appliance, even if it changes owner. -
Page 4: 1-Warnings And Warranty Conditions
1-WARNINGS AND WARRANTY CONDITIONS SAFETY WARNINGS • The installation, electrical connection, operating test and maintenance must only be carried out by a qualified operator. • Install the product in compliance with the laws and regulations in force. • Only use the fuel recommended by the manufacturer. The product must not be used as an incinerator. - Page 5 1-WARNINGS AND WARRANTY CONDITIONS • Do not dry laundry on the product. Any drying racks or the like must be kept at a safe distance from the product. Fire hazard. • The product maintenance operations must be exclusively carried out by a qualified operator on a yearly basis.
- Page 6 1-WARNINGS AND WARRANTY CONDITIONS • Do not allow the product to come into contact with water, it contains live electrical parts. • Do not wash the product with water (or other liquids) as they could penetrate inside the unit, damaging the electrical insulation with the risk of electrocution. • Do not use detergents to wash the stove, they could damage the aesthetic parts of the product.
- Page 7 1-WARNINGS AND WARRANTY CONDITIONS • The sound pressure level of this appliance does not exceed 70 dB(A). • Live electrical parts: only power the product once it has been fully assembled. • Disconnect the product from the 230V power supply before performing any maintenance operations.
- Page 8 1-WARNINGS AND WARRANTY CONDITIONS INFORMATION: • Please contact the retailer or qualified personnel for any information, problem or malfunction. • Only use the fuel specified by the manufacturer. • When the product is switched on for the first time, it is normal for it to emit smoke due to the paint heating up for the first time. Therefore make sure the room it is installed in is well-ventilated.
- Page 9 1-WARNINGS AND WARRANTY CONDITIONS WARRANTY CONDITIONS For the duration, terms, conditions, limitations of the MCZ conventional warranty, please refer to the specific warranty card that is included with the product. Information for management of waste electrical and electronic equipment containing batteries and accumulators This symbol appears on the product, on the batteries, on the accumulators or on their packaging or on their documentation;...
- Page 10 1-WARNINGS AND WARRANTY CONDITIONS WARNINGS FOR THE CORRECT DISPOSAL OF THE PRODUCT The owner is the sole party responsible for demolishing and disposing of the product. This must be performed in compliance with laws related to safety and environmental protection in force in his/her country. At the end of its working life, the product must not be disposed of as urban waste.
- Page 11 1-WARNINGS AND WARRANTY CONDITIONS LEGENDA WHERE TO DISPOSE MATERIALS Metal Glass If there is any, to be disposed of separately based on the material used: Tiles or ceramics OUTER CLADDING Stone Glass ceramic (fire door): to be disposed of with inert or mixed waste If there is any, to be disposed of separately based on the material used: Tempered glass (oven door): to be disposed...
- Page 12 1-WARNINGS AND WARRANTY CONDITIONS Our solid bio-combustible products, (hereinafter called “Products”) are designed and manufactured in compliance with one of the following European standard harmonised to Regulation (UE) no. 305/2011 for construction products: EN 14785: “Residential space heating appliances fired by wood pellets” EN 13240: “Room heaters fired by solid fuel.”...
-
Page 13: 2-Installation
2-INSTALLATION The instructions in this chapter refer explicitly to the Italian installation regulation UNI 10683. In any case, always observe the regulations in force in the country of installation. PELLETS The pellet is obtained from natural dried wood sawdust (without paint). The compactness of the material is guaranteed by the lignin contained in the wood itself, without glue or binders. - Page 14 2-INSTALLATION FOREWORD The heating system (generator + combustion air supply + combustion product expulsion system + any hydraulic/aeraulic system) must be installed in compliance with the laws and regulations in force , and carried out by a qualified technician, who must issue a declaration of conformity of the system to the system manager and shall undertake full responsibility for final installation and consequent good operation of the product.
- Page 15 2-INSTALLATION MINIMUM DISTANCES Observe the distances from flammable objects (sofas, furniture, wood panelling, etc..) as specified in the following diagram. If objects considered to be particularly sensitive to heat are present, such as furniture, curtains or sofas, as a precaution, increase the stove clearances substantially to avoid possible deterioration due to the effect of heat.
- Page 16 2-INSTALLATION In any case, ensure adequate distance to facilitate access during cleaning and extraordinary maintenance. If this is not possible, it must still be possible to distance the product from adjacent walls/elements. This operation must be performed by a technician qualified to disconnect the combustion product expulsion ducts and their subsequent restoration.
- Page 17 2-INSTALLATION Below 15kW: Air duct diameter Maximum length Maximum length (smooth duct) (corrugated duct) 50mm 60mm 80mm 100mm Above 15kW: Air duct diameter Maximum length Maximum length (smooth duct) (corrugated duct) 50mm 60mm 80mm 100mm Technical Dept. - All rights reserved - Reproduction prohibited...
- Page 18 2-INSTALLATION Preparing the smoke expulsion system The combustion product expulsion system is a particularly important element for the proper operation of the appliance and must be correctly sized according to EN 13384-1. Its creation/adaptation/verification must always be carried out by a legally qualified operator and must comply with the regulations in force in the country where the appliance is installed.
- Page 19 2-INSTALLATION Chimneypot The chimneypot, meaning the end part of the flue, must meet the following characteristics: • the smoke outlet section must be at least double the internal section of the chimney; • prevent the penetration of rain or snow; •...
- Page 20 2-INSTALLATION EXAMPLES OF INSTALLATION (DIAMETERS AND LENGTHS TO BE SIZED) 1. Flue installation with hole for the passage of the pipe increased by: • minimum 100mm around the pipe if next to non-flammable parts such as cement, brick, etc.; or •...
-
Page 21: 3-Drawings And Technical Specifications
3-DRAWINGS AND TECHNICAL SPECIFICATIONS DRAWINGS AND CHARACTERISTICS REN AIR 6 S1/ REN AIR 8 S1 STOVE DIMENSIONS Ø57 Ø80 Technical Dept. - All rights reserved - Reproduction prohibited... - Page 22 3-DRAWINGS AND TECHNICAL SPECIFICATIONS REN AIR 6 XUP!/ REN AIR 8 XUP! STOVE DIMENSIONS S1 Ø80 Ø130...
- Page 23 3-DRAWINGS AND TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS REN AIR 6 S1 Energy Efficiency Class Nominal output power 6.3 kW (5418 kcal/h) Minimum power output 2.4 kW (2064 kcal/h) Efficiency at Max 91.0% Efficiency at Min 96.9% Temperature of exhaust smoke at Max 135 °C...
- Page 24 3-DRAWINGS AND TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS REN AIR 6 XUP! S1 Energy Efficiency Class Nominal output power 6.3 kW (5418 kcal/h) Minimum power output 2.4 kW (2064 kcal/h) Efficiency at Max 91.0% Efficiency at Min 96.9% Temperature of exhaust smoke at Max 135 °C Temperature of exhaust smoke at Min 75°C...
- Page 25 3-DRAWINGS AND TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS REN AIR 8 S1 Energy Efficiency Class Nominal output power 8.2 kW (7052 kcal/h) Minimum power output 2.4 kW (2064 kcal/h) Efficiency at Max 91.0% Efficiency at Min 96.9% Temperature of exhaust smoke at Max 149 °C Temperature of exhaust smoke at Min 75°C...
- Page 26 3-DRAWINGS AND TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS REN AIR 8 XUP! S1 Energy Efficiency Class Nominal output power 8.2 kW (7052 kcal/h) Minimum power output 2.4 kW (2064 kcal/h) Efficiency at Max 91.0% Efficiency at Min 96.9% Temperature of exhaust smoke at Max 149 °C Temperature of exhaust smoke at Min 75°C...
- Page 27 ACCORDING TO COMMISSION REGULATIONS (EU) 2015/1185 - (EU) 2015/1186 (PRODUCT FICHE) MCZ GROUP SpA Manufacturer: Trademak: Model Identifier: REN AIR 6 S1 / REN AIR 6 XUP! S1 Indirect heating functionality: Direct heat output (space heat output): Indirect heat output (water heat output): EN 14785:2006...
- Page 28 3-DRAWINGS AND TECHNICAL SPECIFICATIONS INFORMATION REQUIREMENTS FOR SOLID FUEL LOCAL SPACE HEATERS ACCORDING TO COMMISSION REGULATIONS (EU) 2015/1185 - (EU) 2015/1186 (PRODUCT FICHE) Manufacturer: MCZ GROUP SpA Trademak: Model Identifier: REN AIR 8 S1 / REN AIR 8 XUP! S1 Indirect heating functionality: Direct heat output (space heat output): Indirect heat output (water heat output):...
-
Page 29: 4-Unpacking
4-UNPACKING INSTRUCTIONS FOR PACKAGING DISPOSAL The material that the appliance’s packaging is made of must be managed correctly, in order to make collection, reuse, recovery and recycling easier, where possible. The table below illustrates the possible components that the packaging is made of, and the relative instructions for correct disposal. DESCRIPTION CODE MATERIAL SYMBOL... - Page 30 4-UNPACKING Handle the product with suitable means paying attention to the applicable safety regulations in force. Do not turn the packaging over and handle the majolica parts with care. The stove is delivered in a single package. Open the package, remove the two screws “v” which secure the stove brackets to the pallet and then remove the bracket “S”...
- Page 31 4-UNPACKING Therefore, the end user is responsible for product storage, disposal or possible recycling in compliance with the relative applicable laws in force. Do not store the stove unit or its cladding without their packaging. Position the stove and connect it to the flue. Remove the plastic tie that fastens the top to the structure of the stove. If the stove needs to be connected to an outlet pipe which goes through the rear wall (to connect to the flue), take utmost care to make sure that the joint is not forced.
-
Page 32: 5- Smoke Outlet
5- SMOKE OUTLET REAR SMOKE OUTLET (REN AIR 6 S1/REN AIR 8 S1) TOP SMOKE OUTLET (REN AIR 6 XUP! S1/REN AIR 8 XUP! S1) The stove with the top outlet can have a MONO or COAX type of installation (see the FIRST IGNITION chapter). - Page 33 5- SMOKE OUTLET INSTALLATION OF CONCENTRIC SMOKE OUTLET WITH SEPARATE COMBUSTION AIR The stove is designed to be connected to the flue through a concentric pipe (XUP version), using a special pre-installed fitting. If due to different requirements, there is a need to draw the combustion air directly from an external wall, the air pipe can be separated from the concentric fitting.
- Page 34 5- SMOKE OUTLET • Remove pipe “h” (combustion air) from the concentric fitting by unscrewing the metal clamp “o” • Detach and remove air inlet box “k” with pipe “h” by simply pulling it firmly • Remove pipe “h” and air inlet box “k” •...
-
Page 35: 6-Installation And Assembly
6-INSTALLATION AND ASSEMBLY Live electrical parts: only power the product once it has been fully assembled. On delivery, the stove has no metal cladding, as shown in the image below. Take the box with the package (figure below) and prepare the material for installation. REAR VERSION UPPER VERSION METAL CLADDING... - Page 36 6-INSTALLATION AND ASSEMBLY REMOVING THE TOP To remove the top “D”, proceed as follows: • Lift the cover “E” • Lift the top “D” and put it away in a safe place until the next use...
- Page 37 6-INSTALLATION AND ASSEMBLY ASSEMBLING LOWER FRONT CLADDING Before assembling the chosen side cladding, mount the lower panel “A” as follows: • Take the lower panel “A”, the 4 screws “x” and the 2 washer “y” from the box • Secure the panel “A” to the structure of the stove using the 4 screws “x” and the 2 washer “y” Technical Dept.
- Page 38 6-INSTALLATION AND ASSEMBLY ASSEMBLING UPPER FRONT CLADDING Before assembling the chosen side cladding, mount the lower panel “B” as follows: • Take the upper panel “B”, the 4 screws “x” and the 2 washer “y” from the box • Secure the panel “B” to the structure of the stove using the 4 screws “x” and the 2 washer “y”...
- Page 39 6-INSTALLATION AND ASSEMBLY ASSEMBLING THE SIDE CLADDING Take one of the metal sides “C” (they are reversible) and fit the silicone bumpers “k” on both tops of the panel. Technical Dept. - All rights reserved - Reproduction prohibited...
- Page 40 6-INSTALLATION AND ASSEMBLY Insert the holes “v”, which are on the bottom of the panel “C”, on the hooks “z” in the structure of the stove.
- Page 41 6-INSTALLATION AND ASSEMBLY Then move panel “C” towards the structure and secure it with the two screws “x”. Place the M5 notched washer “y” between the screw “x” and the panel. Technical Dept. - All rights reserved - Reproduction prohibited...
- Page 42 6-INSTALLATION AND ASSEMBLY Fit the panel on the other side in the same way.
- Page 43 6-INSTALLATION AND ASSEMBLY ASSEMBLING THE TOP Once the decorative sides “C” have been fitted, the top “D” can be set back into place. • take the top “D” the previously removed (see “REMOVING THE TOP” on the previous pages) • lift the cover “E”...
- Page 44 6-INSTALLATION AND ASSEMBLY REMOVING THE REAR SIDE PANEL Panel “F” can be removed for maintenance and/or servicing. Proceed as follows: • Remove the screws “v” and the two M5 notched washers “s” from the top part...
- Page 45 6-INSTALLATION AND ASSEMBLY • lift panel “F” so that hooks “z” in the structure protrude from holes “v” on panel “F” • put the panel back safely Technical Dept. - All rights reserved - Reproduction prohibited...
- Page 46 6-INSTALLATION AND ASSEMBLY REMOVING THE BACK To remove the decorative back “F” of the stove, take out the 8 screws “z”.
- Page 47 6-INSTALLATION AND ASSEMBLY ACCESS TO THE ELECTRONIC BOARD The circuit board “J” is on the right side (handle side). If you need to access the board, you must remove the back side panel as explained above. ACCESS TO THE GEARMOTOR To access the gear motor in the version with rear smoke outlet, the side panel must be removed, while in the version with UP/XUP outlet it can be accessed through the hole in the back of the stove.
-
Page 48: 7-Opening The Doors
7-OPENING THE DOORS OPENING THE DOOR OF THE FIREBOX To open the firebox door”R”, fit the cold handle “V” into its hole in the handle, and pull it outwards. Attention! The firebox door must be closed properly for the stove to work correctly. Only open the doors when the stove is switched off and cold. -
Page 49: 8-Easy Connect
8-EASY CONNECT WIFI PANEL (EASY CONNECT) The Easy Connect WiFi panel is already installed at the back of the stove and connected to the board. In order to use the WiFi system, the customer must download the app and follow the set-up instructions. EXAMPLE OF EASYCONNECT MODULE SILVER LABEL APPLICATION INSTALLATION AND CONFIGURATION... - Page 50 8-EASY CONNECT The product set up procedure consists of 5 basic steps: 1 - APP INSTALLATION You can download the app with one of the following methods: - Scan the QR Code on the label of the Wi-Fi module - Search for the app’s name given on the label on the store for your smartphone 2 - USER REGISTRATION a) At first login confirm all the authorisations required by the app.
- Page 51 8-EASY CONNECT Stove serial number On the stove’s warranty card and inside the pellet hopper. MAC address Found on the label on the “ET” page inside the document envelope inside the store. Registration Code (Reg.Code) Found on the label on the “ET” page inside the document envelope inside the store.
- Page 52 8-EASY CONNECT 5 - USING THE APP 1. When the “plug” appears next to the added stove, it means that the stove is connected. You can now use the app. 2. To open the stove controls, tap on the stove name in the “My stoves” list. 3.
-
Page 53: 9-Loading The Pellets
9-LOADING THE PELLETS LOADING THE PELLETS The fuel is loaded on the upper part of the stove by lifting the door “E”, in the case of a rear outlet, or by opening the door “E” and “F” in the case of a top outlet. Pour the pellets in slowly so that they are deposited at the bottom of the hopper. -
Page 54: 10-Electrical Connection
10-ELECTRICAL CONNECTION ELECTRICAL CONNECTION First connect the power cable to the back of the stove and then to a wall socket. It is recommended to disconnect the power cable when the stove is not used. ELECTRICAL STOVE CONNECTION The cable must never come into contact with the smoke exhaust pipe or any other part of the stove. STOVE POWER SUPPLY Connect the power cable to the back of the stove and then to a wall socket. - Page 56 Via La Croce n°8 33074 Vigonovo di Fontanafredda (PN) – ITALY Telephone: 0434/599599 a.s. Fax: 0434/599598 Website: www.mcz.it e-mail: info.red@mcz.it 8902216500 REV 0 20/09/2022...
