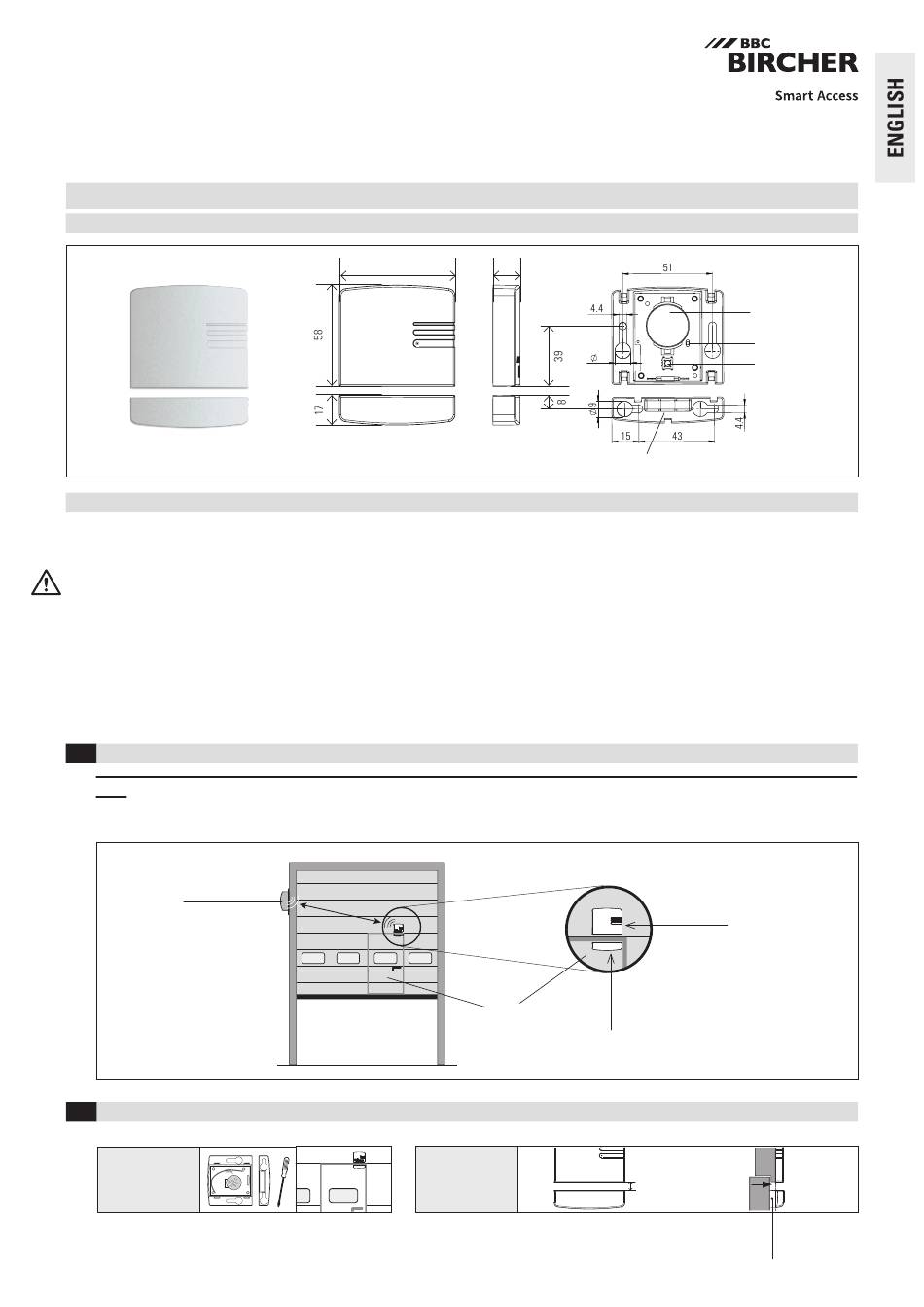

Bircher XRF-TW Original Operating Instructions

XRF-TW
Transmitter for wicket doors to XRF wireless transmission system
Original operating instructions
Intended use: Monitoring wicket doors on industrial doors, in combination with a receiver XRF
Transmitter (Tx)
Saftey instructions
• Read these operating instructions thoroughly before putting the device into
operation and keep them for future reference.
• D o not use this product other than for its specified application.
• Only trained and qualified personnel may install and initialize the device.
• O nly authorized factory personnel may perform hardware/software changes or
repairs to the product.
• Failure to follow these safety precautions may cause damage to sensor or objects,
serious personal injury, or death.
• It is the responsibility of the equipment manufacturer to carry out a risk assess-
ment and to install the system, in compliance with applicable local, national and
international regulations, safety standards, codes and laws as well as the
Machinery Directive 2006/42/EC, should this apply.
• Always consider the safety functions of your applications as a whole, never just in
relation to one individual section of the system.
1 Common application
1.1 Industrial door with wicket door
Transmitter for wicket door monitoring to stop the door moving when the wicket door is open.
Receiver
2 Mounting and set-up
Mount
transmitter and
magnet
66 16
• The installer is responsible for testing the system to ensure it meets all applicable
safety standards.
• S afety devices that are classified as Category 2 according to EN ISO 13849-1 must
be tested regularly – at least once per cycle.
• If the safety device is not requested operationally at least once a year, it must be
checked manually by the operator at least once a year.
• Pay attention to all local relevant electrical safety regulations.
• Protect the device with a housing against contamination or aggressive environ-
ments.
• This device contains batteries.
• Observe the local regulations for battery disposal.
• After accessing the inside of the sensor, ensure the cover/protection seal is
closed tightly to achieve designated protection rating.
Wicket door
Note: Distance
between magnet /
transmitter when
door is closed
Battery
CR2450N
LED
9
Push button
Magnets
Transmitter
Magnet
Wicket
< 5 mm
door
404302E
01/22
correctly
positioned
possibly add
underlay
