Bircher XRF-TI Quick User Manual

XRF-TI

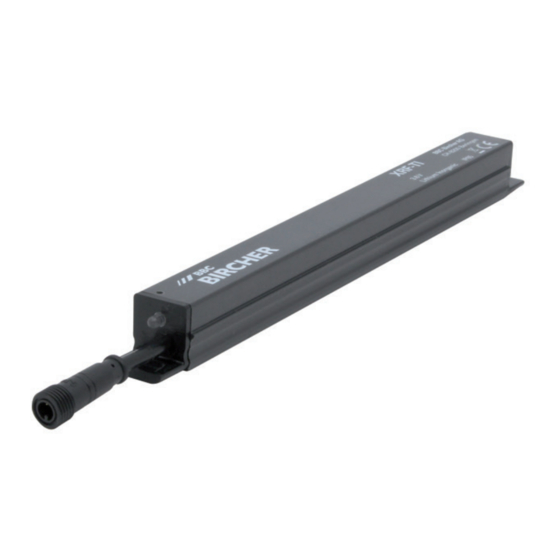

Transmitter for wireless signal transmission system for safety edges
Supplementary sheet to the original operating instructions
Intended use: Monitoring safety edges on doors and gates, in combination with the XRF-Rx receiver
1

Set-up

1.1

Connect battery

 Loosen screw
 Carefully pull out
the PCB
 Plug in connector
 LED flashes 5x (confirms battery connected)
 Pairing (1.2) if required
 Slide in the PCB again
 Close the housing, tighten the screw
1.2

Pairing

Pairing is possible with open transmitter or later in mounted situation.
1.2.a Pairing at open state
Cable
with
plug
Screw
Delivery state
After initiating pairing on Rx:
Press button
(see receiver manual)
4.5
LED
Button Battery 3.6. V
Battery connected
Note:

Alignment of battery,
position of wire
1.2.b Pairing at built-in state
After initiating pairing on Rx,
press the edge two times within 2 sec.
2x
194
174
4.5
190
PCB
Button

Note:
Position of
red wire
404301C
07/20
Wire
1
