I-CON COBALT 3000 Series Installation Instructions

COBALT Exposed Manual Flush Valve
®
Installation Instructions

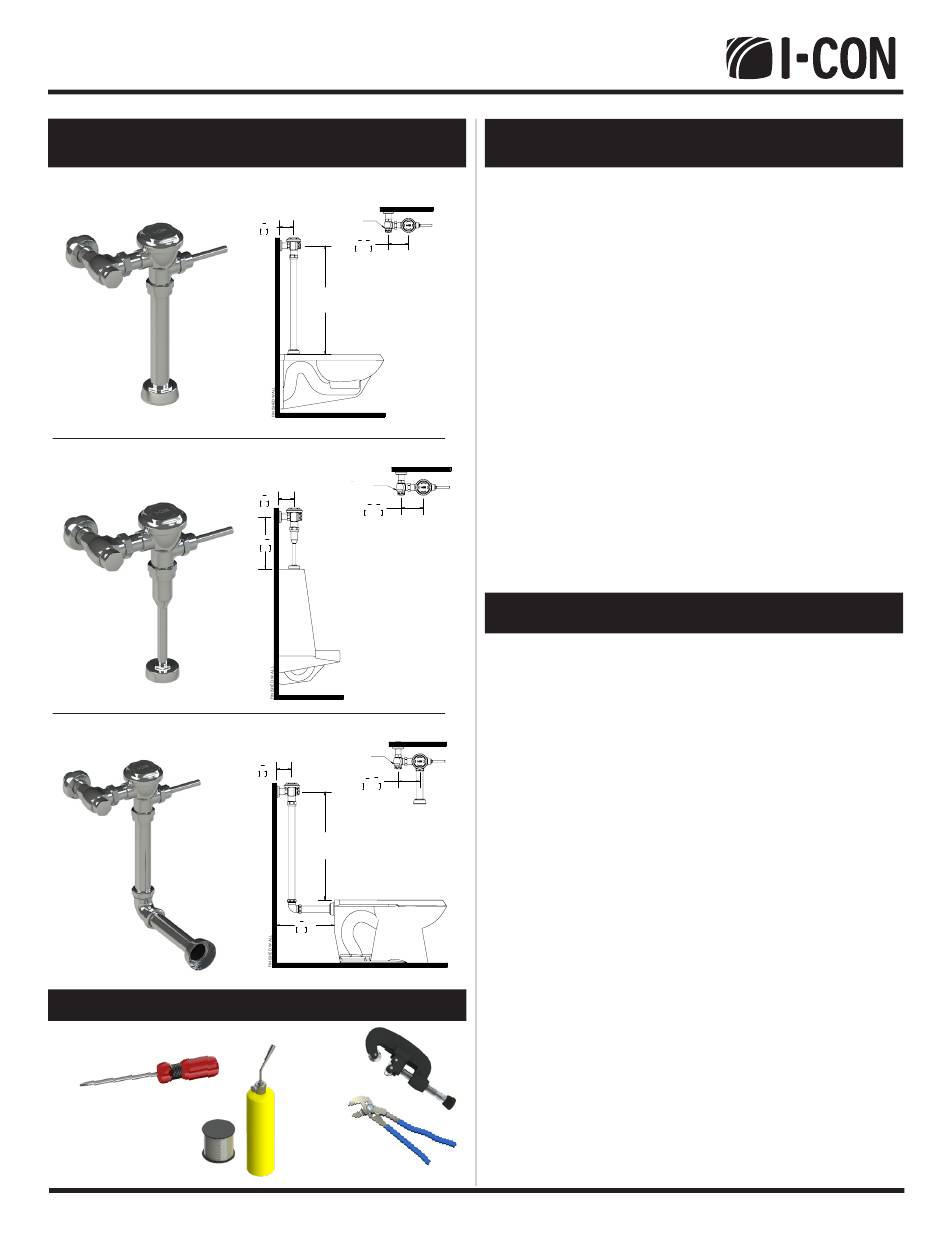

COBALT EXPOSED MANUAL FLUSH VALVES
®
TOP EXPOSED
URINAL EXPOSED
REAR EXPOSED
TOOLS NEEDED
Flat Head Screwdriver
Pipe Solder
I-CON Systems, Inc., for product support call 1-866-730-7192 or visit us online at support.i-con.com
One or more products contained herein are protected by Patent with other undergoing the patent process www.i-con.com/patents
1" [25] IPS
2 1
" MIN
4 SUPPLY
57
1
4 3
"± 2 "
4
121±13
CENTERLINE OF
FIXTURE
MODEL / LENGTH
3010 / 11.5" [292]
3015 / 16" [406]
3020 / 24" [610]
3025 / 27" [686]
FINISHED FLOOR
3
" [20] IPS
4
SUPPLY
2 1
" MIN
4
1
4 3
57 "± 2 "
4
121±13
CENTERLINE OF
FIXTURE
11 1
"
2
292
FINISHED FLOOR
1" [25] IPS
SUPPLY
2 1
" MIN
4
57
1
4 3
"± 2 "
4
121±13
CENTERLINE OF
FIXTURE
MODEL / LENGTH
3030 / 11.5" [292]
3035 / 16" [406]
3040 / 24" [610]
3045 / 27" [686]
6 1
" MIN
2
165
FINISHED FLOOR
Pipe Cutter
Smooth Jaw
Wrench
Part No. 101105 : 3000 Series
PRIOR TO INSTALLATION
• All plumbing should be installed according to applicable state
and local codes and regulations.
• Before installing the I-CON flush valve, ensure the water closet
or urinal fixture, drain line and water supply line are properly
installed.
• Water supply lines must be correct size to allow for
appropriate water flow for each fixture.
• Flush all water supply lines of debris before making
connections.
• Do not use pipe sealant or plumbing grease on any
components or couplings except the control stop inlet.
• A smooth jaw or strap wrench should be used for installation
to prevent damage to the finish of the I-CON flush valve and
components.
The I-CON flush valve is designed to operate at water pressures
ranging from 15 to 100psi (103 to 689kPa). The fixture type
determines the minimum pressure required for the valve. Most
low-consumption water closets are designed to operate with
a minimum flowing water pressure of 25psi (172kPa). Many
building codes and the ASME A112.19.2 standard require
maximum static water pressure as 80 psi.
LIMITED WARRANTY
I-CON Systems, Inc. (I-CON) warrants that its commercial
manufactured products are made of first-class materials, are free
from defects, and are made to withstand normal use when installed
properly. Products have the following warranty periods: 3 years for
COBALT®, COBALT Pro®, and COBALT Connect® faucets and flush
valves and I-CON EDGE® gateways. 1 year for all other products
and decorative finishes. The warranty period begins on the date of
purchase.
Defective products should be sent to I-CON at the customer's
expense. I-CON will take a reasonable amount of time to determine
if the product is defective and whether it will be repaired or replaced.
During the warranty period, items will either be (1) repaired at no
charge using new replacement parts or (2) replaced with either a
new similar product or one manufactured from new or serviceable
used parts that is at minimum a functional equivalent to the original.
The course of action will be determined at I-CON's discretion.
Replacement products that are installed according to the instructions
provided by I-CON will assume the remaining warranty of the original
product. The limited warranty is only applicable to the product's
materials and workmanship. No claims for labor, transportation, or
other incidental or consequential costs will be allowed. No extended
warranties are available. THE SOLE AND EXCLUSIVE REMEDY FOR
ANY DEFECTIVE PRODUCT IS LIMITED TO REPAIRING OR REPLACING
THE DEFECTIVE PRODUCT. Before installing and using products, the
purchaser is responsible for determining the products' suitability and
assumes all risks and liabilities related to the product.
This warranty only applies to persons and organizations that
purchase I-CON products directly from I-CON or an authorized I-CON
representative for the purpose of resale. This warranty does not apply
to the life of batteries or other consumables.
page 1
Rev 061424
