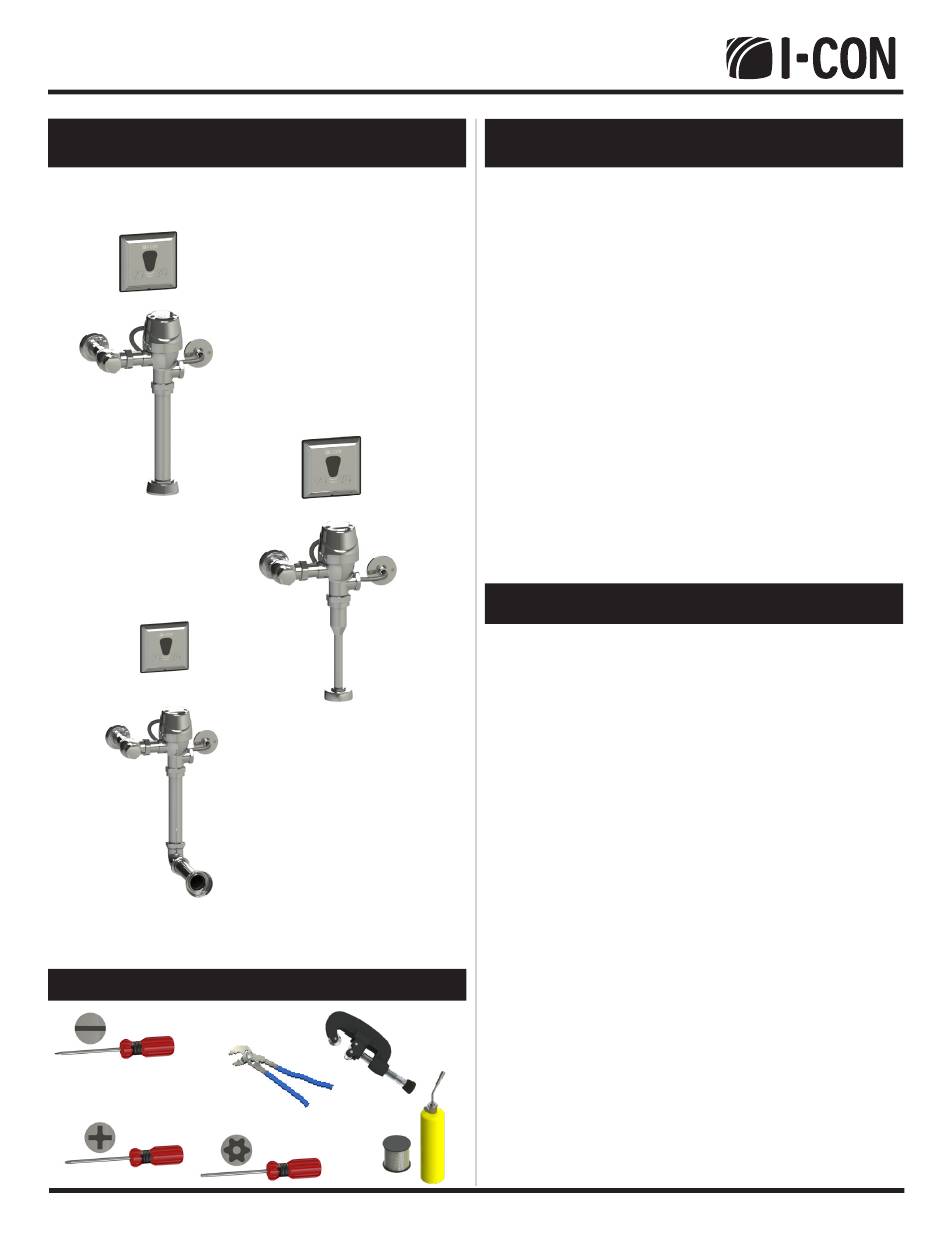

I-CON COBALT Pro 3000 Series Installation Instructions Manual

COBALT Pro Wall Sensor Activated
™
Exposed Flush Valve Installation Instructions
EXPOSED SENSOR FLUSH VALVES
TOOLS NEEDED
Flat Head Screwdriver
Smooth Jaw
Wrench
Phillips Screwdriver
I-CON Systems, Inc., for product support call 1-866-730-7192 or visit us online at support.i-con.com
One or more products contained herein are protected by U.S. Patent with other undergoing the patent process www.i-con.com/patents
3010
3050
3030
Pipe Cutter
Pipe Solder
T15H
Screwdriver
Part No. 101822 : 3000 Series
PRIOR TO INSTALLATION
• All plumbing should be installed according to applicable state
and local codes and regulations.
• Before installation of the I-CON flush valve, ensure the water
closet or urinal fixture, drain line and water supply line are
properly installed.
• Water supply lines must be sized to allow for appropriate
water flow for each fixture.
• Flush all water supply lines of any debris before making
connections.
• Do not use pipe sealant or plumbing grease on any
components or couplings, with the exception of the control stop
inlet.
• A smooth jaw or strap wrench should be used for installation
to prevent damage to the finish of the I-CON flush valve and
components.
The I-CON flush valve is designed to operate at water pressures
ranging from 15 to 100psi (103 to 689kPa). The fixture type
determines the minimum pressure required for the valve.
Most low-consumption water closets are designed to operate
with a minimum flowing water pressure of 25psi (172kPa).
Many building codes and the ASME A112.19.2 standard state
maximum static water pressure as 80 psi.
LIMITED WARRANTY
I-CON Systems, Inc. (I-CON) warrants that its commercial
manufactured products are made of first-class materials, are
free from defects, and are made to withstand normal use when
installed properly. Products have the following warranty periods:
3 years for COBALT®, COBALT Pro™, and COBALT Connect™
faucets and flush valves and I-CON EDGE® gateways. 1 year for
all other products and decorative finishes. The warranty period
begins on the date of purchase.
Products should be sent to I-CON at the customer's expense.
I-CON will take a reasonable amount of time to determine
if the product is defective and whether it will be repaired or
replaced. During the warranty period, items will either be
(1) repaired at no charge using new replacement parts or (2)
replaced with either a new similar product or one manufactured
from new or serviceable used parts that are, at minimum, a
functional equivalent to the original. The course of action will
be determined at I-CON's discretion. Replacement products that
are installed according to the instructions provided by I-CON
will assume the remaining warranty of the original product. The
limited warranty is only applicable to the product's materials
and workmanship. No claims for labor, transportation, or other
incidental or consequential costs will be allowed. No extended
warranties are available. THE SOLE AND EXCLUSIVE REMEDY
FOR ANY DEFECTIVE PRODUCT IS LIMITED TO REPAIRING OR
REPLACING THE DEFECTIVE PRODUCT. Before installing and
using products, the purchaser is responsible for determining the
products' suitability and assumes all risks and liabilities related
to the product.
This warranty only applies to persons and organizations that
purchase I-CON products directly from I-CON or an authorized
I-CON representative for the purpose of resale. This warranty
does not apply to the life of batteries or other consumables.
page 1
Rev 080323
